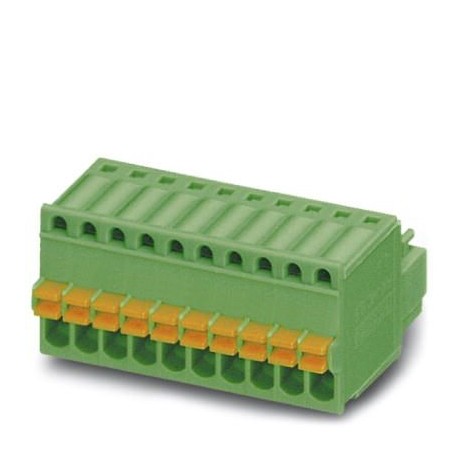

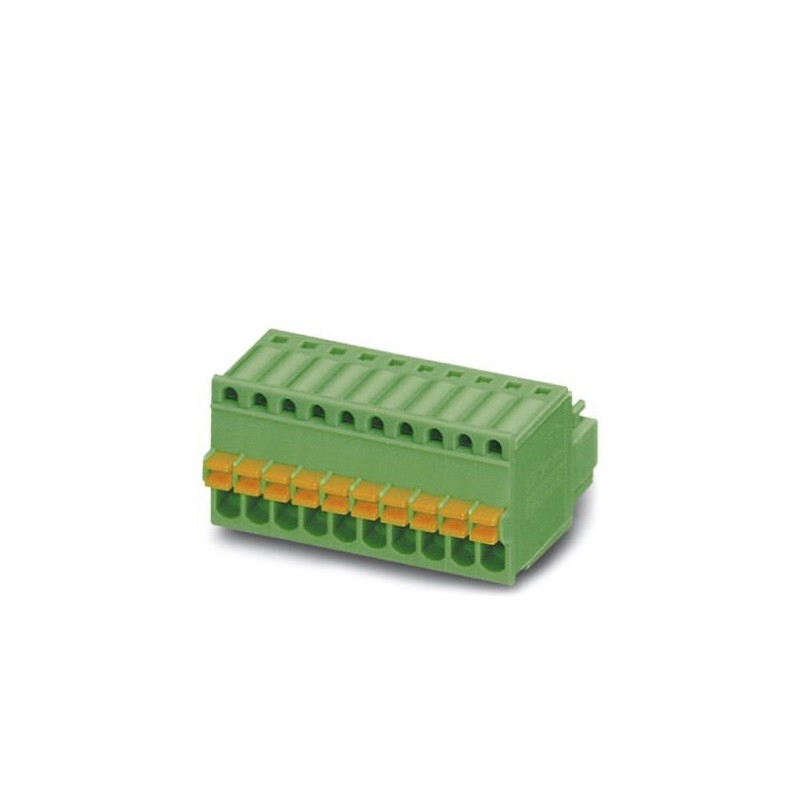

FK-MC 0,5/12-ST-2,5 BK 1755279 PHOENIX CONTACT Printed-circuit board connector
FK-MC 0,5/12-ST-2,5 BK
1755279
PHOENIX_CONTACT
50
Printed-circuit board connector
Connectors > Cable connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1755279 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4046356330862 |
| Weight per Piece (excluding packing) | 6.840 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | PCB connector |
|---|---|
| Plug-in system | MICRO COMBICON - FK-MC 0,5 |
| Type of contact | Female connector |
| Range of articles | FK-MC 0,5/..-ST |
| Pitch | 2.5 mm |
| Number of positions | 12 |
| Connection method | Push-in spring connection |
| Locking | without |
| Number of levels | 1 |
Electrical parameters
| Rated current | 4 A |
|---|---|
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
Connection capacity
| Conductor cross section solid | 0.14 mm² ... 0.5 mm² |
|---|---|
| Conductor cross section flexible | 0.14 mm² ... 0.5 mm² |
| Conductor cross section AWG / kcmil | 26 ... 20 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² |
| Cylindrical gauge a x b / diameter | - / 1.4 mm |
| Stripping length | 8 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Material data – actuating element
| Insulating material | POM |
|---|---|
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | HB |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Caption | Schematic representation – for additional information, see product range drawing in the Download Center |
| Length [ l ] | 19.05 mm |
| Width [ w ] | 30.6 mm |
| Height [ h ] | 11.75 mm |
| Pitch | 2.5 mm |
| Height (without solder pin) | 11.75 mm |
| Dimension a | 27.5 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
General product information
| Type of note | Notes on operation |
|---|---|
| Note | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Conductor connection test | The stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force. |
|---|---|
| Test result | Test passed |
| Test – repeated connection and release | IEC 60999-1:1999-11 |
| Test passed | |
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 0.5 mm² / solid / > 20 N | |
| 0.5 mm² / flexible / > 20 N |
Mechanical tests according to standard
| Visual examination | Test passed IEC 60512-1-1:2002-02 |
|---|---|
| Dimensional test | Test passed IEC 60512-1-2:2002-02 |
| Resistance of marking | Test passed IEC 60068-2-70:1995-12 |
| Result | Test passed |
| Specification | IEC 60512-13-2:2006-02 |
| No. of cycles | 25 |
| Insertion strength per pos. approx. | 8 N |
| Withdraw strength per pos. approx. | 6 N |
| Polarization and coding | Test passed IEC 60512-13-5:2006-02 |
| Result | Test passed |
| Specification | IEC 60512-15-1:2008-05 |
| Test force per pos. | 24 N |
Air clearances and creepage distances
| Specification | IEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05 |
|---|---|
| Insulating material group | I |
| Voltage | 100 V |
| Rated insulation voltage (III/3) | 100 V |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (II/2) | 320 V |
| Rated surge voltage (III/3) | 1.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
Temperature cycles
| Specification | IEC 60999-1:1999-11 |
|---|---|
| Test current (minimum cross section) | 4 A |
| Test current (maximum cross section) | 6 A |
| Temperature cycles | 192 |
Mechanical tests (A)
| Insertion strength per pos. approx. | 8 N |
|---|---|
| Withdraw strength per pos. approx. | 6 N |
| Polarization when inserted requirement >20 N | Test passed |
| Contact holder in insert requirements >20 N | Test passed |
Durability tests (B)
| Specification | IEC 60512-9-1:2010-03 |
|---|---|
| Contact resistance R1 | 2 mΩ |
| Insertion/withdrawal cycles | 25 |
| Contact resistance R2 | 2.2 mΩ |
| Impulse withstand voltage at sea level | 2.95 kV |
| Power-frequency withstand voltage | 1.39 kV |
| Insulation resistance, neighboring positions | 80 GΩ |
Climatic tests (D)
| Specification | ISO 6988:1985-02 |
|---|---|
| Cold stress | -40 °C/2 h |
| Thermal stress | 100 °C/168 h |
| Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Impulse withstand voltage at sea level | 2.95 kV |
| Power-frequency withstand voltage | 1.39 kV |
Environmental and durability tests (E)
| Specification | IEC 61984:2008-10 |
|---|---|
| Result, degree of protection, IP code | Finger safety with IP20 test finger |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
