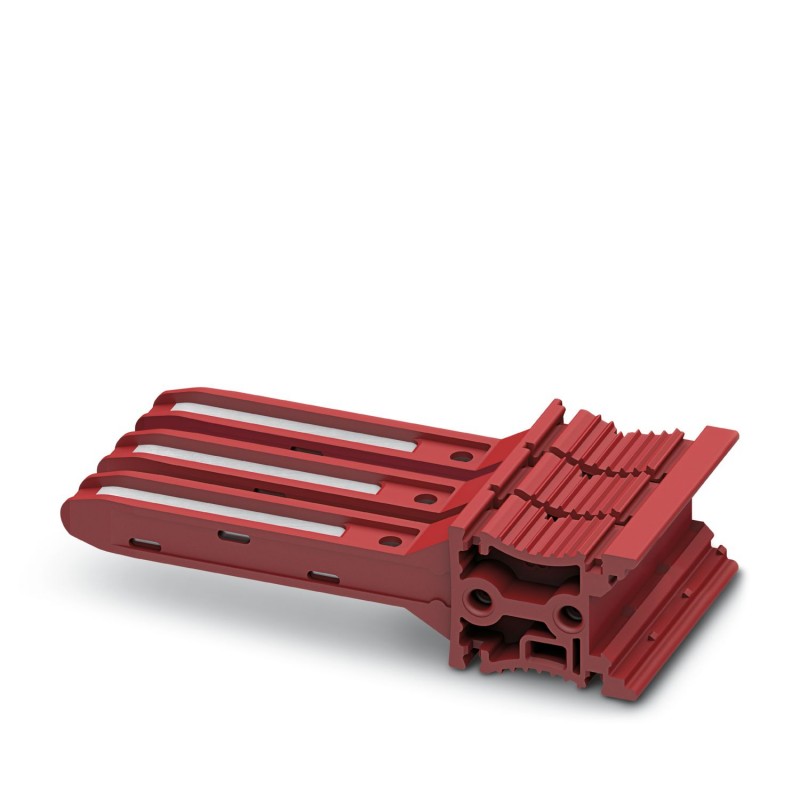

FIP-3/3 SERVICE 3069312 PHOENIX CONTACT Interruption plug
FIP-3/3 SERVICE
3069312
PHOENIX_CONTACT
Interruption plug
Disconnect connector, rated voltage: 400 V, rated current: 20 A, colour: red
Interruption plug, nom. voltage: 400 V, nominal current: 20 A, color: red
Energy distribution systems > Installation clamp for meters
Enclosures connectivity
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Plug |
| Number of positions | 3 |
| Pitch | 8.2 mm |
| Data management status | |
| Article revision | 05 |
| Insulation characteristics | |
| Overvoltage category | III |
| Rated surge voltage | 4 kV |
| Test surge voltage | 5 kV |
| Nominal current | 20 A |
| Maximum load current | 20 A |
| Nominal voltage | 400 V |
| Width | 24.5 mm |
| Height | 53.4 mm |
| Pitch | 8.2 mm |
| Color | red (RAL 3001) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Mechanical data | |
| Open side panel | Yes |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 85 °C |
| Ambient temperature (storage/transport) | -25 °C ... 55 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | Insertion in base strip |
