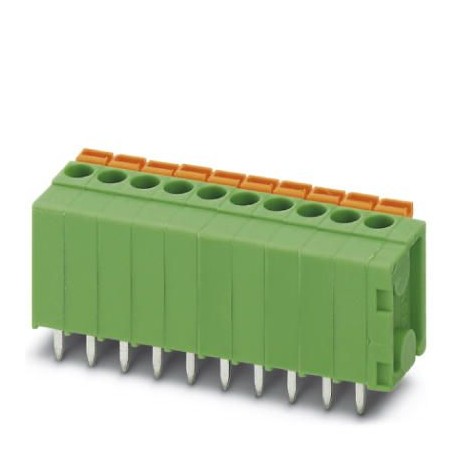

FFKDSA1/V-3,81-13 1700392 PHOENIX CONTACT PCB terminal block View larger

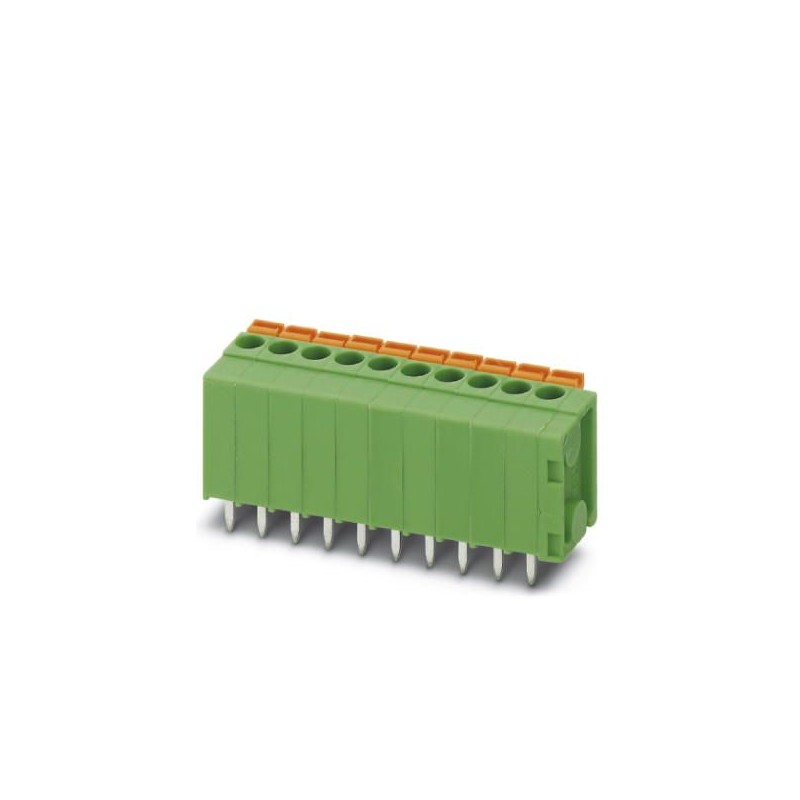

Images are for illustrative purposes only. Please refer to data sheet for details.

FFKDSA1/V-3,81-13 1700392 PHOENIX CONTACT PCB terminal block

FFKDSA1/V-3,81-13

1700392

PHOENIX_CONTACT

50

Available Ship on today

PCB terminal block

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
50+$5.75
100+$5.36
150+$5.19
200+$5.13
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 1700392
Packing unit 50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4017918985851
Weight per Piece (excluding packing)11.500 g
Custom tariff number85369010
Country of originGR (Greece)

Dimensions

Length [ l ]12.7 mm
Pitch3.81 mm
Dimension a45.72 mm
Width [ w ]52.03 mm
Height13.7 mm
Height [ h ]17.1 mm
Solder pin [P]3.4 mm
Hole diameter1.3 mm

General

Range of articlesFFKDS(A) 1,5/..-V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Solder pin surface
Stripping length10 mm
Number of positions13

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.18

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
