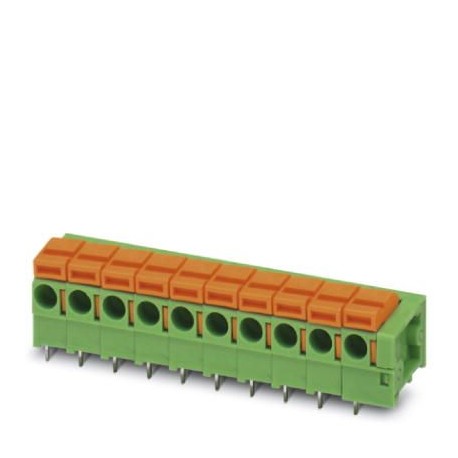

FFKDSA1/H1-5,08- 2 1780808 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FFKDSA1/H1-5,08- 2 1780808 PHOENIX CONTACT PCB terminal block

FFKDSA1/H1-5,08- 2

1780808

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

PCB terminal block

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey1780808
Packing unit50 pc
Minimum order quantity50 pc
GTIN4017918260101
Weight per Piece (excluding packing)2.070 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]13.65 mm
Pitch5.08 mm
Dimension a10.16 mm
Width [ w ]12.7 mm
Height12.75 mm
Height [ h ]16.15 mm
Solder pin [P]3.4 mm
Pin spacing7.62 mm
Hole diameter1.3 mm

General

Range of articlesFFKDS(A)/H1
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN15 A
Nominal cross section1.5 mm²
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length10 mm
Number of positions2

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
