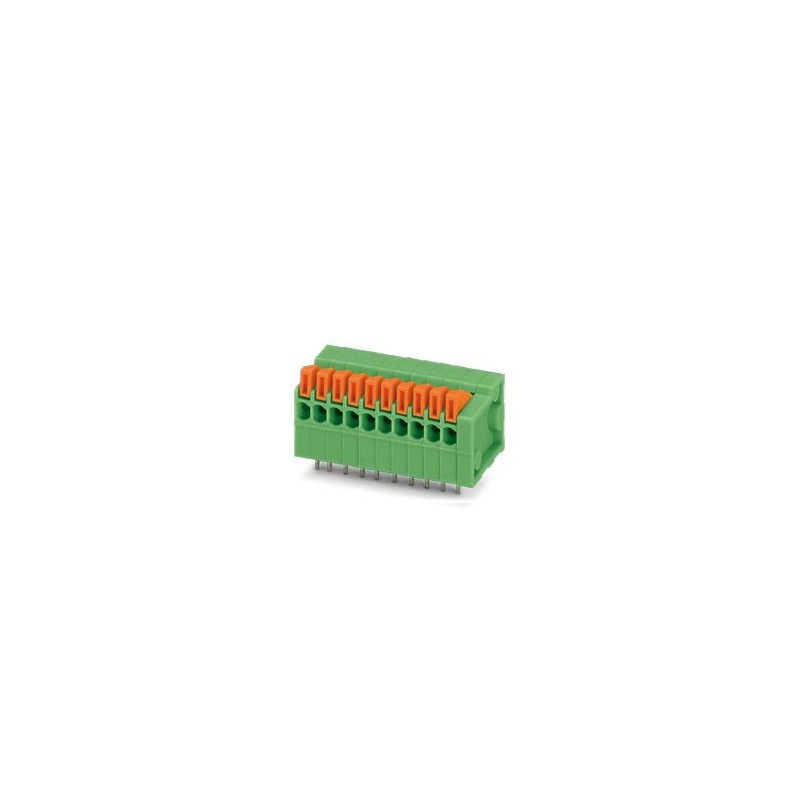

FFKDSA1/H-2,54- 7 1700208 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 6 A, rated vo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FFKDSA1/H-2,54- 7 1700208 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 6 A, rated vo..

FFKDSA1/H-2,54- 7

1700208

PHOENIX_CONTACT

50

Terminal for printed circuit board, nominal current: 6 A, rated voltage: 160 V, pitch: 2.54 mm, number of poles: 7, type of connection: spring clamp push-in, mounting: Soldering by wave direction for connection conductor/pcb: 0 °, color: green

Printed circuit board terminal, rated current: 6 A, sizing voltage (III/2): 160 V, nominal section: 0.5 mm², Number of potentials: 7, Number of rows: 1, Number of poles per row: 7, article family: FFKDS(A) 0.5/.. -H, pitch: 2.54 mm, connection type: Push-in spring connection, mounting: Wave welding, conductor/printed circuit board connection direction: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.6mm, packaging type: boxed packaging

PCB terminal block, nominal current: 6 A, rated voltage (III/2): 160 V, nominal cross section: 0.5 mm2, number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: FFKDS(A) 0,5/..-H, pitch: 2.54 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard

More details


Connectors > Printed circuit board terminal

PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $194.27
Unit price: $3.89

Quantity Price
50+$3.89
100+$3.39
150+$3.32
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Product properties
TypePC terminal block can be aligned
Product lineCOMBICON Terminals XS
Product typePrinted circuit board terminal
Product familyFFKDS(A) 0,5/..-H
Number of positions7
Pitch2.54 mm
Number of connections7
Number of rows1
Number of potentials7
Pin layoutLinear pinning
Solder pins per potential2
Electrical properties
Nominal current IN6 A
Nominal voltage UN160 V
Degree of pollution3
Rated voltage (III/3)63 V
Rated surge voltage (III/3)2.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
Connection data
Connection technology
TypePC terminal block can be aligned
Nominal cross section0.5 mm²
Conductor connection
Connection methodPush-in spring connection
Conductor cross section rigid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.14 mm² ... 0.5 mm²
Conductor cross section AWG26 ... 20
Stripping length11 mm
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Connection methodPush-in spring connection
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (5 - 7 µm Sn)
Metal surface terminal point (middle layer)Nickel (2 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (5 - 7 µm Sn)
Metal surface soldering area (middle layer)Nickel (2 - 3 µm Ni)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Material data – actuating element
Color (Actuating element)orange (2003)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawinggklwlyybhu.jpg
Pitch2.54 mm
Width [w]20.28 mm
Height [h]16 mm
Length [l]13.6 mm
Installed height12.6 mm
Solder pin length [P]3.4 mm
Pin dimensions0.5 x 0.8 mm
PCB design
Pin spacing5.08 mm
Hole diameter1.1 mm
Mechanical tests
Test for conductor damage and slackening
SpecificationIEC 60999-1:1990-05
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1990-05
Conductor cross section/conductor type/tractive force setpoint/actual value0.14 mm² / solid / > 7 N
0.2 mm² / flexible / > 10 N
0.5 mm² / solid / > 30 N
0.5 mm² / flexible / > 30 N
Electrical tests
Temperature-rise test
SpecificationIEC 60998-1:1990-04
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60512-2:1985-00
Insulation resistance, neighboring positions1012Ω
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)63 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)1.6 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.5 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1982 + AMD 2:1985
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
