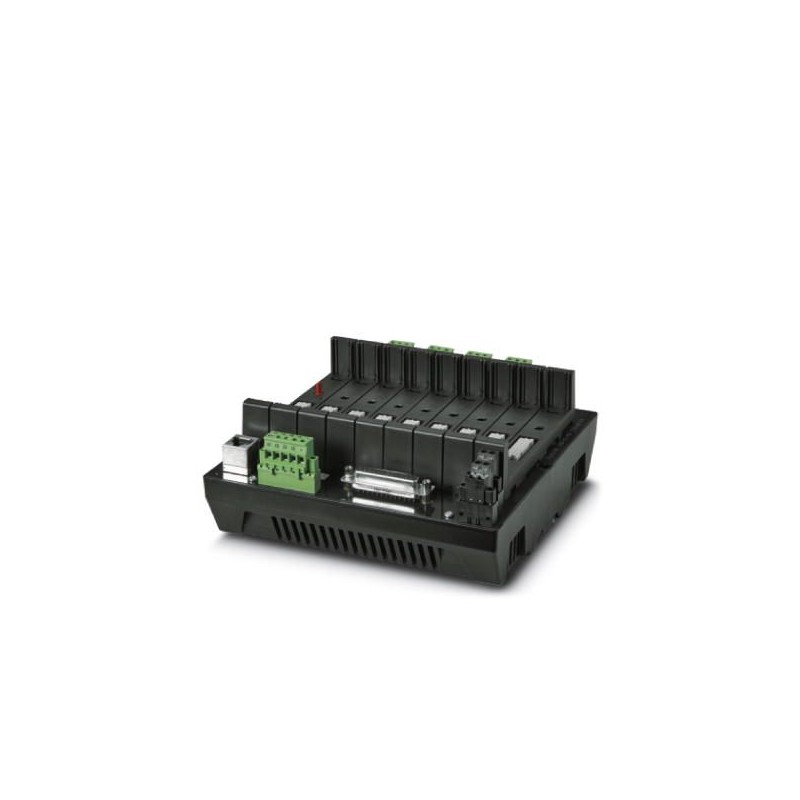

FB-PS-MB-25DSUB/EX 2316146 PHOENIX CONTACT Power supply unit
FB-PS-MB-25DSUB/EX
2316146
PHOENIX_CONTACT
Power supply unit
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2316146 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 517 (C-6-2017) |
| GTIN | 4055626128351 |
| Weight per Piece (excluding packing) | 1,131.000 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Degree of protection | IP20 |
Power supply
| Conductor cross section flexible max. | 2.50 mm² |
|---|---|
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section solid max. | 2.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 30 |
Serial interface
| Interface 1 | Invensys DCS cabling system |
|---|---|
| Interface | Host system |
| Number of connections | 1 |
| Connection method | D-SUB-25 female connector |
| Inductance Li | 17.8 mH (trunk and host) |
| Max. output voltage Uo | 30 V DC (trunk and host) |
Standards and Regulations
| Type of test | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
|---|---|
| Designation | Standards/regulations |
| Standards/regulations | Ring wave noise immunidty in acc. with IEC 61000-4-12 |
| Designation | Standards/regulations |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| IEC 61158-2 | |
| NE21 | |
| EN 61326 | |
| Conformance | CE-compliant |
| Fieldbus Foundation | FF-831 |
| ATEX | Sira 11ATEX4216X; II 3 G Ex nA nC IIC T4 Gc |
| IECEx | IECEx SIR 11.0097X; Ex nA nC IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA nC IIC T4 Class I, Zone 2, AEx nA nC IIC T4 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
