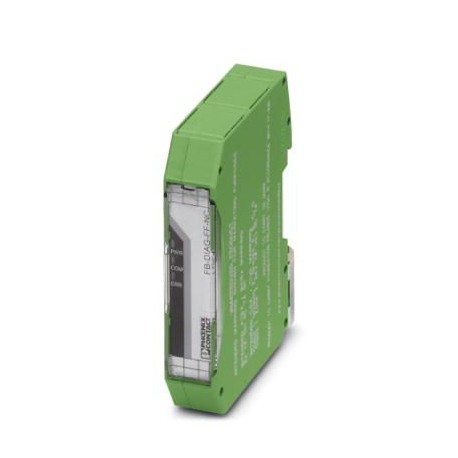

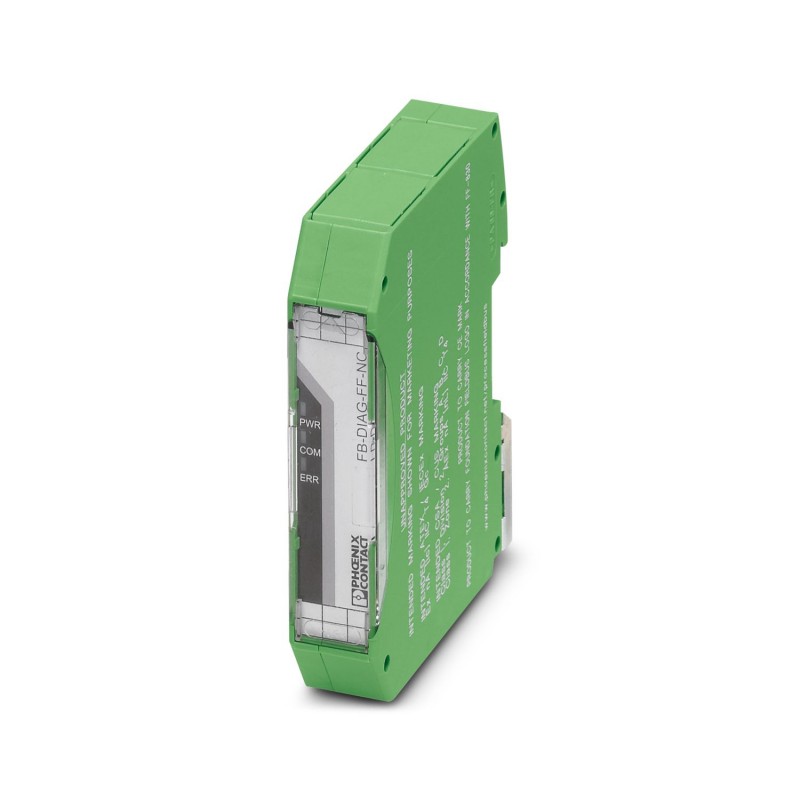

FB-DIAG/FF/NC 2316297 PHOENIX CONTACT Device coupler
FB-DIAG/FF/NC
2316297
PHOENIX_CONTACT
Device coupler
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2316297 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 518 (C-6-2017) |
| GTIN | 4046356783231 |
| Weight per Piece (excluding packing) | 97.100 g |
| Custom tariff number | 85389099 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of protection | IP20 |
General
| Mounting position | Any orientation on DIN rail, NS 35, in acc. with EN 60715 |
|---|---|
| Net weight | 97.1 g |
| Color | green |
| Conformance | IEC 61158-2 |
| Fieldbus Foundation | FF-830 |
Power supply
| Supply voltage range | 9 V DC ... 32 V DC |
|---|---|
| Max. current consumption | 29 mA |
| Typical current consumption | 27 mA |
Serial interface
| Interface 1 | FOUNDATION Fieldbus |
|---|---|
| Connection method | TBUS |
| Output nominal voltage | ≤ 32 V |
| Output current | 29 mA |
| Maximum output current | 29 mA |
Safety data
| ATEX | Sira 13ATEX4148X; II 3G Ex nA IIC T4 Gc |
|---|---|
| IECEx | IECEx SIR 13.0059X; Ex nA IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A,B,C,D; Ex nA IIC T4_Gc Class I, Zone 2, AEx nA IIC T4_Gc |
Standards and Regulations
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
|---|---|
| Test result | 30g, 11 ms half-sine shock pulse |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10 ... 150 Hz |
| Type of test | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
| Designation | Standards/regulations |
| Standards/regulations | Ring wave noise immunidty in acc. with IEC 61000-4-12 |
| Designation | Standards/regulations |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| IEC 61158-2 | |
| Flammability rating according to UL 94 | V0 |
| Conformance | IEC 61158-2 |
| Fieldbus Foundation | FF-830 |
| ATEX | Sira 13ATEX4148X; II 3G Ex nA IIC T4 Gc |
| IECEx | IECEx SIR 13.0059X; Ex nA IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A,B,C,D; Ex nA IIC T4_Gc Class I, Zone 2, AEx nA IIC T4_Gc |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250203eCl@ss 4.127250203eCl@ss 5.027250203eCl@ss 5.127259200eCl@ss 6.027242600eCl@ss 7.027242610eCl@ss 8.027242610eCl@ss 9.027242610
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
