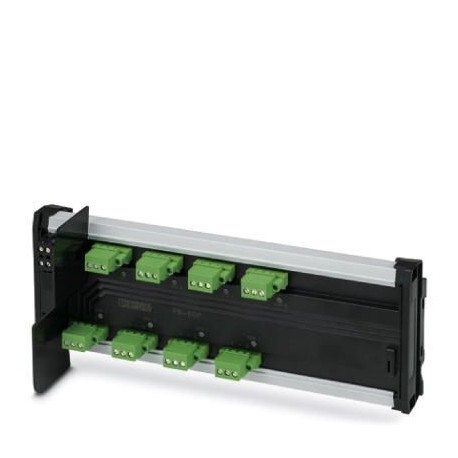

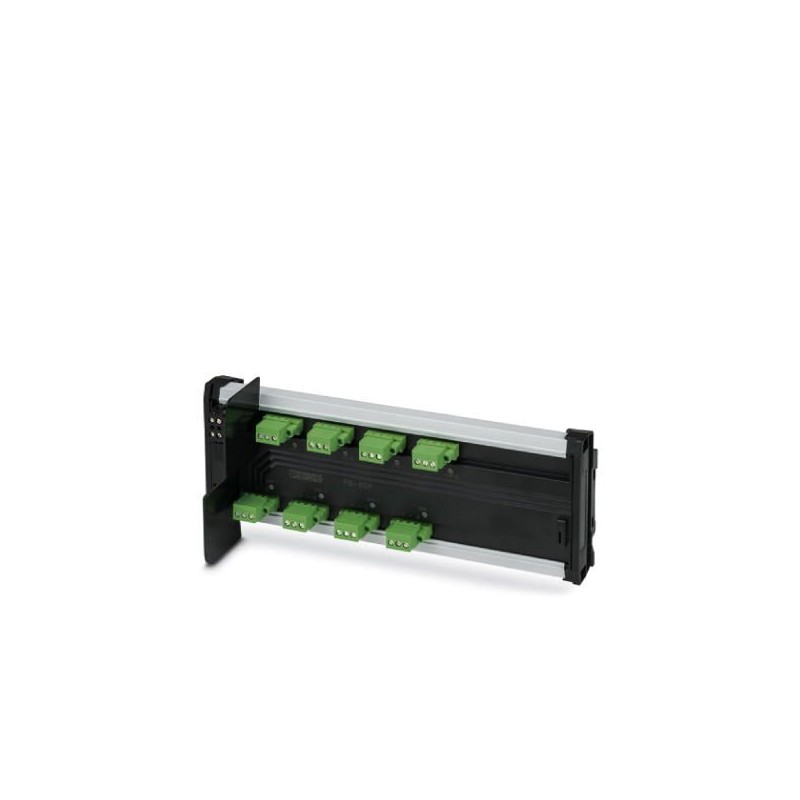

FB-8SP 1026043 PHOENIX CONTACT Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connecti..
FB-8SP
1026043
PHOENIX_CONTACT
Device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for eight spurs connected to fieldbus end devices.
Equipment coupler for Foundation Fieldbus and PROFIBUS PA with clamping connections for eight splice taps with fieldbus terminal equipment.
PLC's > Fieldbus, decentr. periphery - power supply/segment module
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1026043 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626519111 |
| Weight per Piece (excluding packing) | 200.000 g |
| Custom tariff number | 85369095 |
| Country of origin | US (United States) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Dimensions
| Dimensional drawing |  |
|---|---|
| Caption | Image shows FB-12SP |
| Width | 254.1 mm |
| Height | 112.5 mm |
| Depth | 83.5 mm |
Ambient conditions
| Ambient temperature (operation) | -50 °C ... 90 °C |
|---|---|
| Ambient temperature (storage/transport) | -50 °C ... 90 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | non-condensing |
| Altitude | 2000 m |
| Degree of protection | IP20 |
General
| Mounting position | On horizontal and vertical DIN rail NS 35 in acc. with EN 60715 |
|---|---|
| Net weight | 0 g |
| MTTF | 723 Years (25 degrees C) |
| Conformance | CE-compliant, additionally EN 61326 |
| UL, USA | ANSI/UL 61010-1 |
| Fieldbus Foundation | FF-846 |
Power supply
| Supply voltage range | 10.6 V DC ... 32 V DC (input on trunk line side) |
|---|---|
| Typical current consumption | 6.5 mA |
| Conductor cross section flexible max. | 0.20 mm² |
| Conductor cross section flexible min. | 2.50 mm² |
| Conductor cross section solid max. | 0.20 mm² |
| Conductor cross section solid min. | 2.50 mm² |
| Max. AWG conductor cross section, flexible | 12 |
| Min. AWG conductor cross section, flexible | 24 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Serial interface
| Interface 1 | Foundation Fieldbus and PROFIBUS PA Segment |
|---|---|
| No. of ports | 8 |
| Connection method | Pluggable COMBICON screw connection for each spur |
| Termination resistor | 100 Ω (external removable plug) |
| 100 Ω, external removable plug included | |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Output nominal voltage | ≤ 32 V (each spur) |
| Output current | 38 mA |
| Inductance Li | 4 µH |
| Max. output voltage Uo | Uin(spur) |
Safety data
| Input voltage Ui | 32 V (IIB (C/D)) |
|---|---|
| Max. output voltage Uo | Uin(spur) |
| Max. output current Io | 56 mA (spur) |
| Max. output power Po | 1.792 W |
| Group | IIC/IIB |
| Max. external capacitance Co | 80 nF |
| Additional text | spur |
| Group | IIC/IIB |
| Max. external inductivity Lo | 0.26 mH |
| Additional text | spur |
| ATEX | Sira 13ATEX4247X; II 3(3)G Ex nA [ic] IIC T4 Gc, Entity/FISCO ic spurs Ex nA [nL] IIC T4 Gc; II 3G Ex ic IIC T4 Gc, FISCO ic |
| IECEx | IECEx SIR 13.0089X; Ex nA [ic] IIC T4 Gc, Entity/FISCO ic spurs; Ex nA [nL] IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic |
| UL, USA | Class I, Zone 2; AEx nA[ic] IIC T4, Entity/FISCO spurs Class I, Div. 2, Groups A, B, C, D; T4 |
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA [nL] IIC T4; Class I, Zone 2, AEx nA [nC] IIC T4 |
Standards and Regulations
| Type of test | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
|---|---|
| Designation | Standards/regulations |
| Standards/regulations | Ring wave noise immunidty in acc. with IEC 61000-4-12 |
| Designation | Standards/regulations |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| IEC 61158-2 | |
| EN 60079-0:2011; EN 60079-11:2012; EN 60079-15:2005; EN 60079-15:2010 | |
| IEC 60079-0:2011; IEC 60079-11:2011; IEC 60079-15:2005; IEC 60079-15:2010 | |
| Flammability rating according to UL 94 | V0 |
| Shock | 30g, 11 ms |
| Vibration (operation) | 5g, 10 Hz ... 150 Hz |
| Conformance | CE-compliant, additionally EN 61326 |
| UL, USA | ANSI/UL 61010-1 |
| Fieldbus Foundation | FF-846 |
| Group | IIC/IIB |
| IIC/IIB | |
| ATEX | Sira 13ATEX4247X; II 3(3)G Ex nA [ic] IIC T4 Gc, Entity/FISCO ic spurs Ex nA [nL] IIC T4 Gc; II 3G Ex ic IIC T4 Gc, FISCO ic |
| IECEx | IECEx SIR 13.0089X; Ex nA [ic] IIC T4 Gc, Entity/FISCO ic spurs; Ex nA [nL] IIC T4 Gc; Ex ic IIC T4 Gc, FISCO ic |
| UL, USA | Class I, Zone 2; AEx nA[ic] IIC T4, Entity/FISCO spurs Class I, Div. 2, Groups A, B, C, D; T4 |
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA [nL] IIC T4; Class I, Zone 2, AEx nA [nC] IIC T4 |
