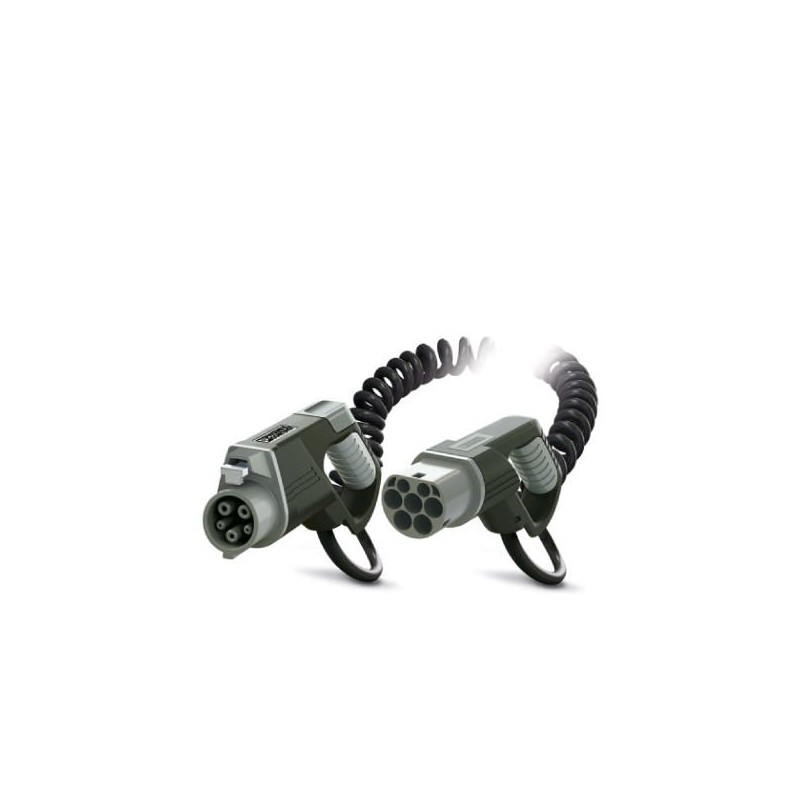

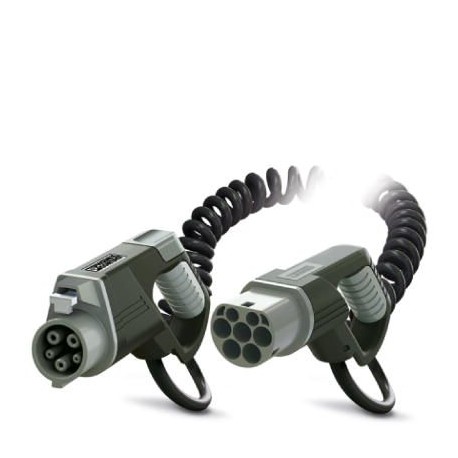

EV-TAM3PC-1AC32A-4,0M6,0EHBK00 1623120 PHOENIX CONTACT AC charging cable
EV-TAM3PC-1AC32A-4,0M6,0EHBK00
1623120
PHOENIX_CONTACT
AC charging cable
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1623120 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 744 (C-2-2017) |
| GTIN | 4055626155845 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Mobile AC charging cable with vehicle connector and infrastructure plug, with protective cap |
|---|---|
| Type | D-Line |
| Standards/regulations | IEC 62196-2 |
| SAE J1772 | |
| Charging standard | Type 1 |
| Type 2 | |
| Charging mode | Mode 3, Case B |
Dimensions
| Vehicle connector width | 55.20 mm |
|---|---|
| Vehicle connector height | 72.60 mm |
| Vehicle connector depth | 235.90 mm |
| Infrastructure plug width | 60.00 mm |
| Infrastructure plug height | 102.90 mm |
| Infrastructure plug depth | 229.60 mm |
| Conductor length | 4 m |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in) |
| IP54 (Protective cap) | |
| The degree of protection is only ensured in the ready and plugged-in state when both plug-in components are original products from Phoenix Contact or suitable standard-compliant products. |
Electrical properties
| Maximum charging power | 8 kW |
|---|---|
| Number of phases | 1 |
| Number of power contacts | 3 (L1, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 250 V AC |
| Number of signal contacts | 2 (CP, CS) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) |
Design
| Design line | D-Line |
|---|---|
| Housing color | black |
| Mating face color | gray |
| Color handle area | gray |
| Actuating element color | gray |
| Color protective cap | black |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Actuating lever material | Metal |
| Material protective cap | Soft plastic |
| Material mating face | Plastic |
| Material surface of contacts | Ag |
Cable
| Cable structure | 3 x 6.0 mm² + 1 x 0.5 mm² (DIN EN 13602, VDE 0295 class 5) |
|---|---|
| Wiring class | Class 5 |
| External cable diameter | 13.9 mm ±0.5 mm |
| Type of conductor | spiraled |
| Outer sheath, material | PUR |
| External sheath, color | black |
| Minimum bending radius | 208.5 mm (15 x diameter) |
| Coil diameter | 75 mm |
| Block length | 0.5 m |
| Effective length | max. 4 m |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144705
