EV-T2SOC-PA
1549875
PHOENIX_CONTACT
1

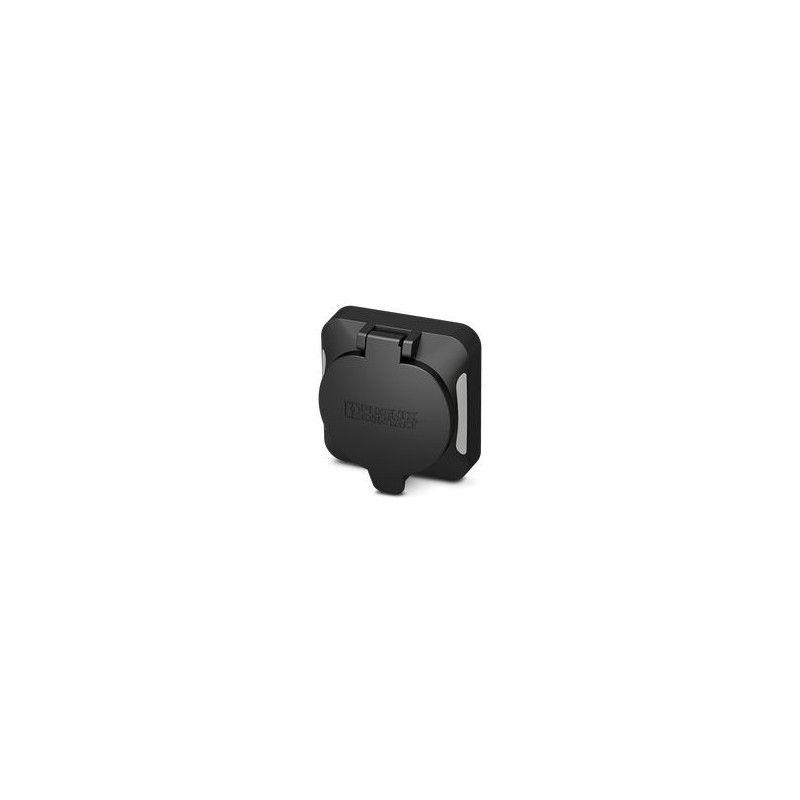

CHARX connect modular, Protective cover, Rectangular, Accessories, Premium, with self-closing mechanism, With LED (common anode connection), for installation in infrastructure sockets, Type 2, IEC62196-2, Front wall mounting, M5 thread, Engraved PHOENIX CONTACT logo
CHARX connect modular, Protective cover, square, Accessories, Premium, with self-locking mechanism, with LED (common anode connection), for attaching to infrastructure charging sockets, Type 2, IEC 62196-2, Front mounting, M5 thread, Embossed PHOENIX CONTACT logo
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Design (Protective cover) | square |
Product type | Protective cover for Socket Outlet |
Product family | CHARX connect modular |
Application | for attaching to infrastructure charging sockets |
Type | Accessories |
Premium | |
Design | with self-locking mechanism |
with LED (common anode connection) | |
Compatibility | compatible with shutter, see accessories |
Affixed logo | Embossed PHOENIX CONTACT logo |
Charging standard | Type 2 |
Charging mode | Mode 3, Case B |
Cross section AWG | (converted acc. to IEC) |
Protective cover | |
Dimensional drawing | ![]() |
Width | 84.9 mm |
Height | 93.7 mm |
Depth | 30.5 mm |
Bore dimensions | |
Dimensional drawing | ![]() |
Width | 60 mm |
Height | 60 mm |
Color (Protective cover) | black (9005) |
Material (Protective cover) | Plastic |
Type of cover movement | Self-locking |
Ambient conditions | |
Degree of protection (Protective cover) | IP54 |
IK08 | |
Ambient temperature (operation) | -30 °C ... 50 °C |
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Altitude | 5000 m (above sea level) |
Standards | |
Standards/regulations | IEC 62196-2 |
Mounting type Protective cover | Front mounting (rear screw connection, the associated infrastructure charging socket can be attached from the rear or from the front) |
Fixing screws | M5 thread |
