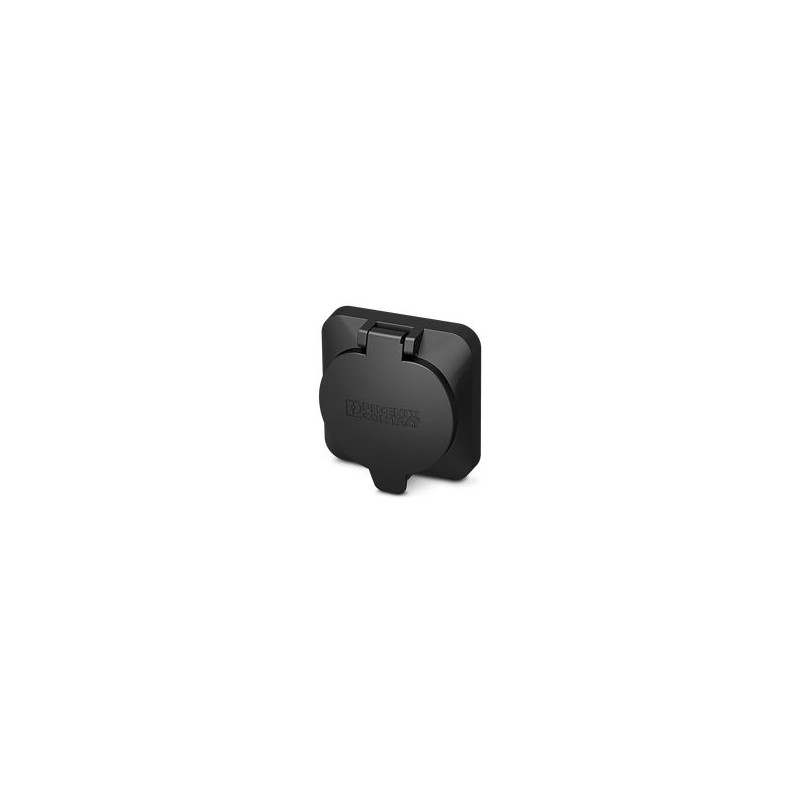

EV-T2SOC-B-C 1463745 PHOENIX CONTACT CHARX connect modular, Protective cover, Rectangular, Accessories, Basi..
EV-T2SOC-B-C
1463745
PHOENIX_CONTACT
CHARX connect modular, Protective cover, Rectangular, Accessories, Basic, with self-closing mechanism, C-marked, for installation in infrastructure sockets, Type 2, IEC62196-2, Front wall mounting, M5 thread, C-marked by laser, according to DIN EN 17186 under the PHOENIX CONTACT logo
CHARX connect modular, Protective cover, square, Accessories, Basic, with self-locking mechanism, with marking C, for attaching to infrastructure charging sockets, Type 2, IEC 62196-2, Front mounting, M5 thread, Lasered C identification in accordance with DIN EN 17186 below the Phoenix Contact logo
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Design (Protective cover) | square |
| Product type | Protective cover for Socket Outlet |
| Product family | CHARX connect modular |
| Application | for attaching to infrastructure charging sockets |
| Type | Accessories |
| Basic | |
| Design | with self-locking mechanism |
| with marking C | |
| Compatibility | The square basic protective cover version is not compatible with the shutter. Choose a premium and/or round protective cover version for this. |
| Affixed logo | Lasered C identification in accordance with DIN EN 17186 below the Phoenix Contact logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
| Cross section AWG | (converted acc. to IEC) |
| Protective cover | |
| Dimensional drawing |  |
| Width | 85 mm |
| Height | 93.7 mm |
| Depth | 32.5 mm |
| Bore dimensions | |
| Dimensional drawing |  |
| Width | 60 mm |
| Height | 60 mm |
| Color (Protective cover) | black (9005) |
| Material (Protective cover) | Plastic |
| Type of cover movement | Self-locking |
| Ambient conditions | |
| Degree of protection (Protective cover) | IP54 |
| IK08 | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Mounting type Protective cover | Front mounting (rear screw connection, the associated infrastructure charging socket can be attached from the rear or from the front) |
| Fixing screws | M5 thread |
