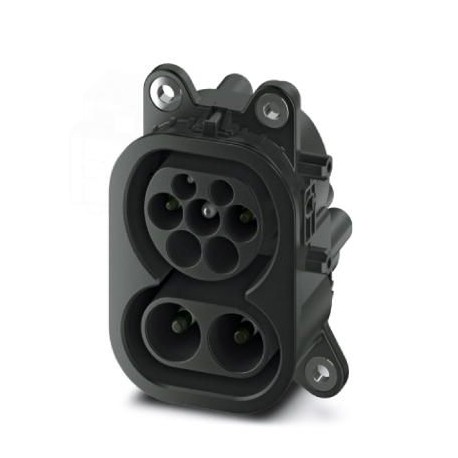

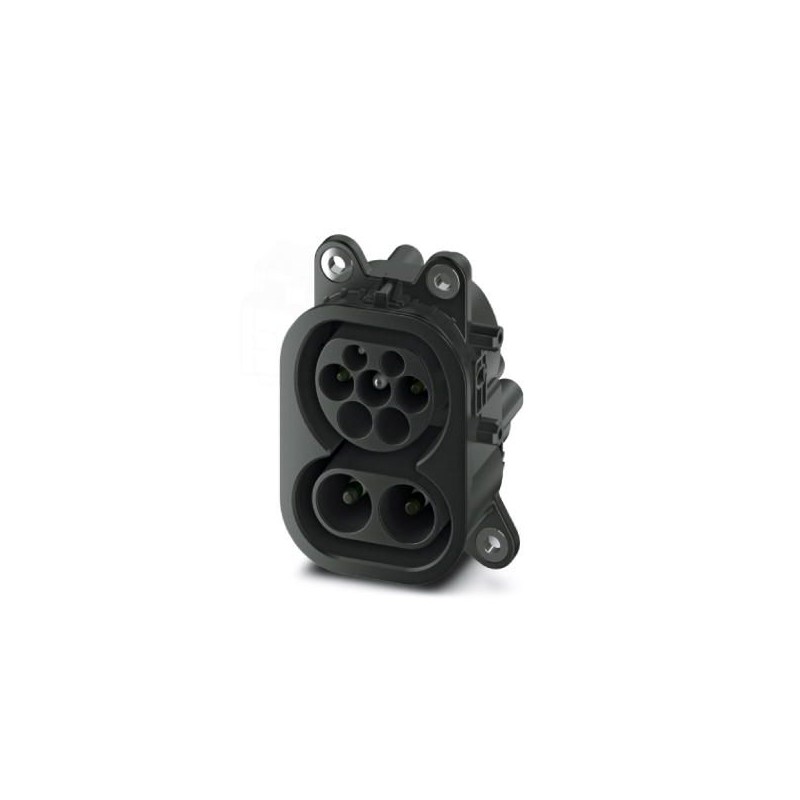

EV-T2MBI-PARK 1621667 PHOENIX CONTACT Park position
EV-T2MBI-PARK
1621667
PHOENIX_CONTACT
Park position
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1621667 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356953474 |
| Weight per Piece (excluding packing) | 705.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Retainer for Vehicle Connector as parking position at charging stations (EVSE) |
|---|---|
| Standards/regulations | IEC 62196-3 |
| Charging standard | CCS type 2 |
| Charging mode | Mode 4 |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Degree of protection | IP44 (plugged in) |
| IP55 (with protective cap) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Front and rear mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Not pre-assembled, mounting possible on the right, left or top center |
| Mounting hole diameter | 6.80 mm (ø) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144792
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
