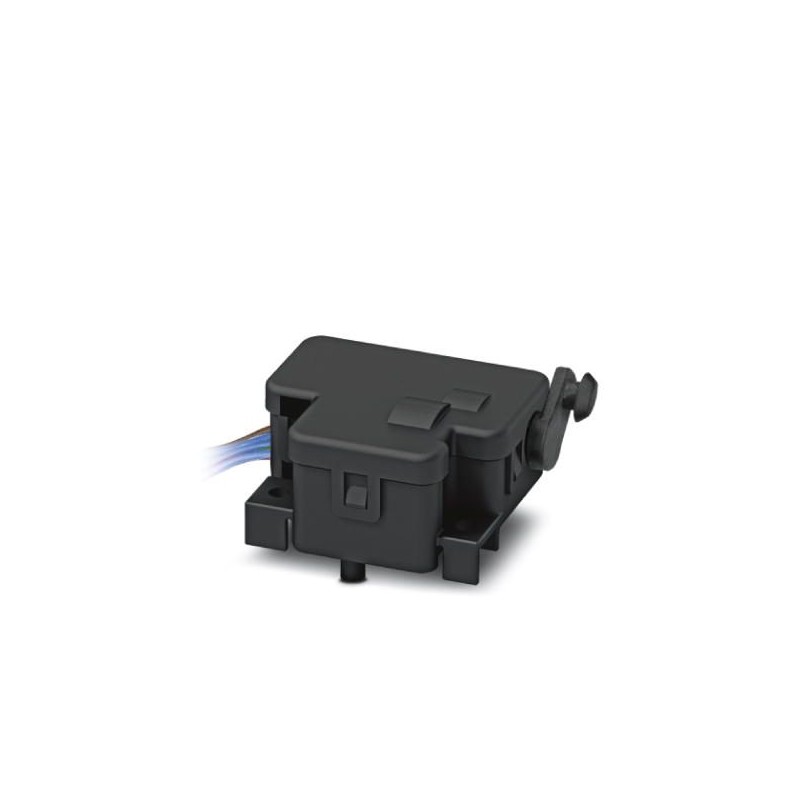

EV-T2M3S-E-LOCK24V 1622317 PHOENIX CONTACT Locking
EV-T2M3S-E-LOCK24V
1622317
PHOENIX_CONTACT
Locking
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1622317 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626033808 |
| Weight per Piece (excluding packing) | 95.000 g |
| Custom tariff number | 85011099 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Locking actuator with 24 V power supply for Infrastructure Socket Outlets and Vehicle Inlets |
|---|---|
| Standards/regulations | IEC 61851-1 |
| Charging standard | Type 2 |
| GB/T | |
| Charging mode | Mode 2, 3, 4 |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
Locking actuator
| Typical power supply at the motor | 24 V |
|---|---|
| Possible power supply range at the motor | 22 V ... 26 V |
| Typical motor current for locking | 0.05 A |
| Max. reverse current of the motor | 0.5 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Maximum voltage for locking detection | 30 V |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Length of cable | 0.5 m |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127144792eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127149100eCl@ss 6.027261200eCl@ss 7.027440208eCl@ss 8.027440208eCl@ss 9.027144792
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
|
