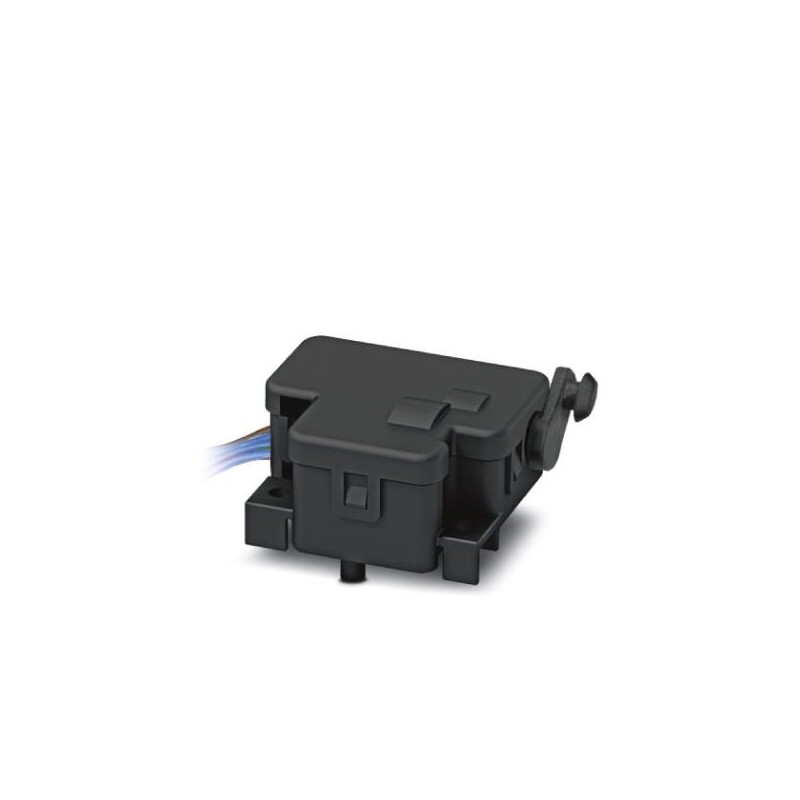

EV-T2M3S-E-LOCK12V 1624129 PHOENIX CONTACT Locking
EV-T2M3S-E-LOCK12V
1624129
PHOENIX_CONTACT
Locking
CHARX connect, Locking, Accessories, for installation in infrastructure sockets, Type 2, GB/T, IEC 61851-1, length: 0.5 m, locking actuator: 12 V, 4 poles, SE-Line, B-Line
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1624129 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626239880 |
| Weight per Piece (excluding packing) | 95.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Locking actuator with 12 V power supply for Infrastructure Socket Outlets and Vehicle Inlets |
|---|---|
| Standards/regulations | IEC 61851-1 |
| Charging standard | Type 2 |
| GB/T | |
| Charging mode | Mode 2, 3, 4 |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
Locking actuator
| Typical power supply at the motor | 12 V |
|---|---|
| Possible power supply range at the motor | 9 V ... 16 V |
| Typical motor current for locking | 0.2 A |
| Max. reverse current of the motor | 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Maximum voltage for locking detection | 30 V |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Length of cable | 0.5 m |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.127144792eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127149100eCl@ss 6.027261200eCl@ss 7.027440208eCl@ss 8.027440208eCl@ss 9.027144792
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
