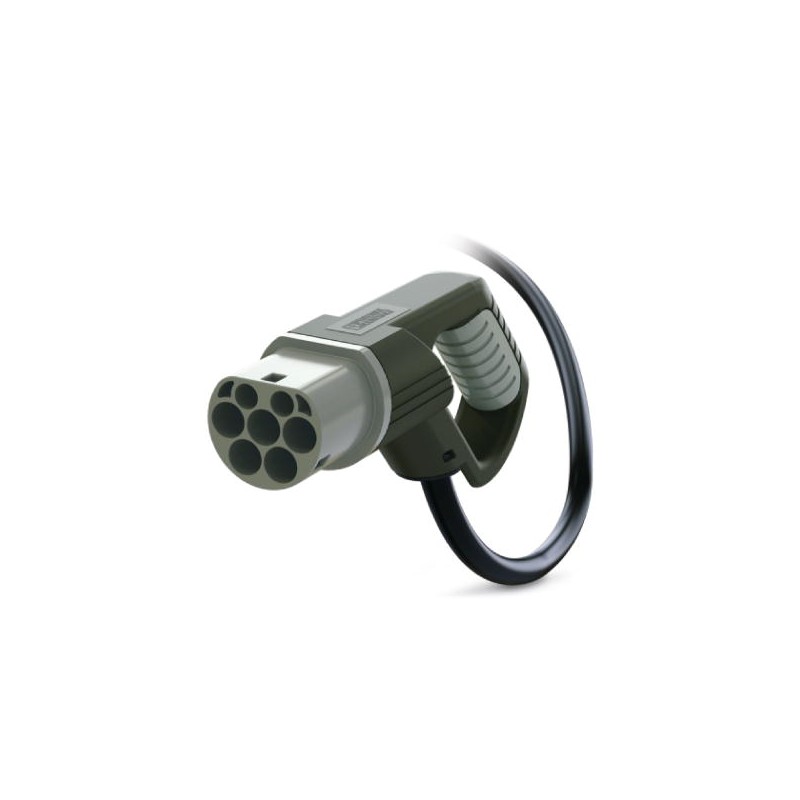

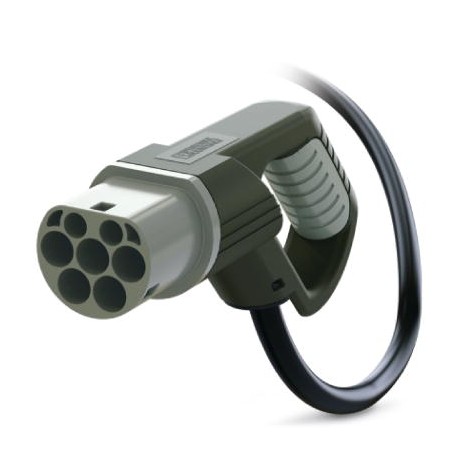

EV-T2M3P-3AC32A-15M6,0ESBK00 1621803 PHOENIX CONTACT AC charging cable
EV-T2M3P-3AC32A-15M6,0ESBK00
1621803
PHOENIX_CONTACT
AC charging cable
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1621803 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356977722 |
| Weight per Piece (excluding packing) | 8,069.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | AC charging cable with infrastructure plug, open cable end, with protective cap |
|---|---|
| Type | D-Line |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3 |
| Note | NOTE: Cable management may be required. |
| Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1). |
Dimensions
| Infrastructure plug width | 229.60 mm |
|---|---|
| Infrastructure plug height | 102.90 mm |
| Infrastructure plug depth | 60.00 mm |
| Conductor length | 15 m |
| Stripping length | 45 mm ±10 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
Electrical properties
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
|---|---|
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Resistor coding | 220 Ω |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | max. 100 N |
| Withdrawal force | max. 100 N |
Cable
| Cable structure | 5 x 6.0 mm² + 1 x 0.5 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 5 |
| Wiring certifications | VDE |
| External cable diameter | 17 mm ±0.4 mm |
| Type of conductor | straight |
| Outer sheath, material | TPE-U |
| External sheath, color | black |
| Minimum bending radius | 255 mm (15 x diameter) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
