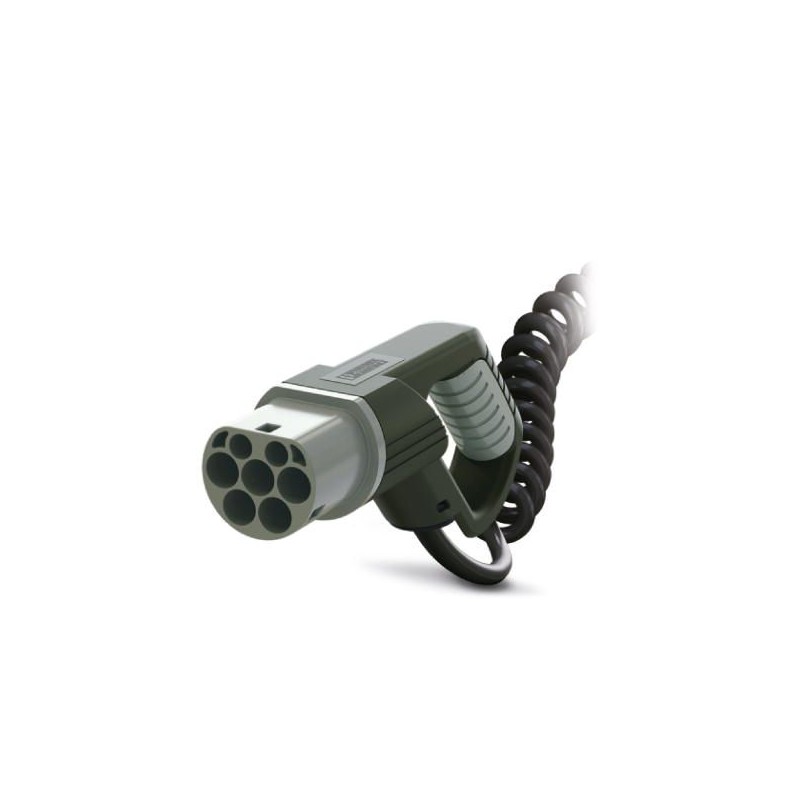

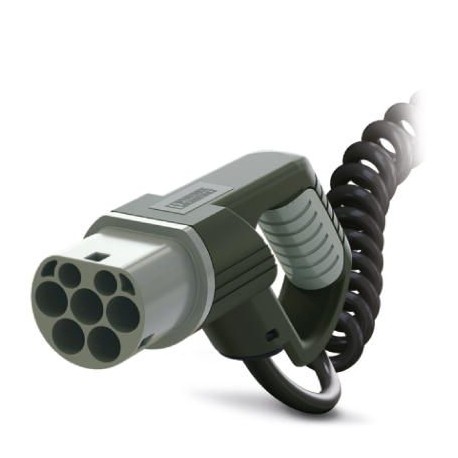

EV-T2M3P-1AC20A-4,0M2,5EHBK00 1623321 PHOENIX CONTACT AC charging cable
EV-T2M3P-1AC20A-4,0M2,5EHBK00
1623321
PHOENIX_CONTACT
AC charging cable
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1623321 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626141138 |
| Weight per Piece (excluding packing) | 2,200.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | AC charging cable with infrastructure plug, open cable end, with protective cap |
|---|---|
| Type | D-Line |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3 |
Dimensions
| Infrastructure plug width | 229.60 mm |
|---|---|
| Infrastructure plug height | 102.90 mm |
| Infrastructure plug depth | 60.00 mm |
| Conductor length | 4 m |
| Stripping length | 45 mm ±10 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
Electrical properties
| Number of power contacts | 3 (L1, N, PE) |
|---|---|
| Rated current of power contacts | 20 A |
| Rated voltage for power contacts | 250 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Resistor coding | 680 Ω |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | max. 100 N |
| Withdrawal force | max. 100 N |
Cable
| Cable structure | 3 x 2.5 mm² + 1 x 0.5 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 5 |
| Wiring certifications | VDE |
| External cable diameter | 10.2 mm ±0,3 mm |
| Type of conductor | spiraled |
| Outer sheath, material | TPE-U |
| External sheath, color | black |
| Minimum bending radius | 153 mm (15 x diameter) |
| Coil diameter | 45 mm ±10 % |
| Block length | 0.68 m ±10 % |
| Effective length | max. 4 m ±5 % |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144705
