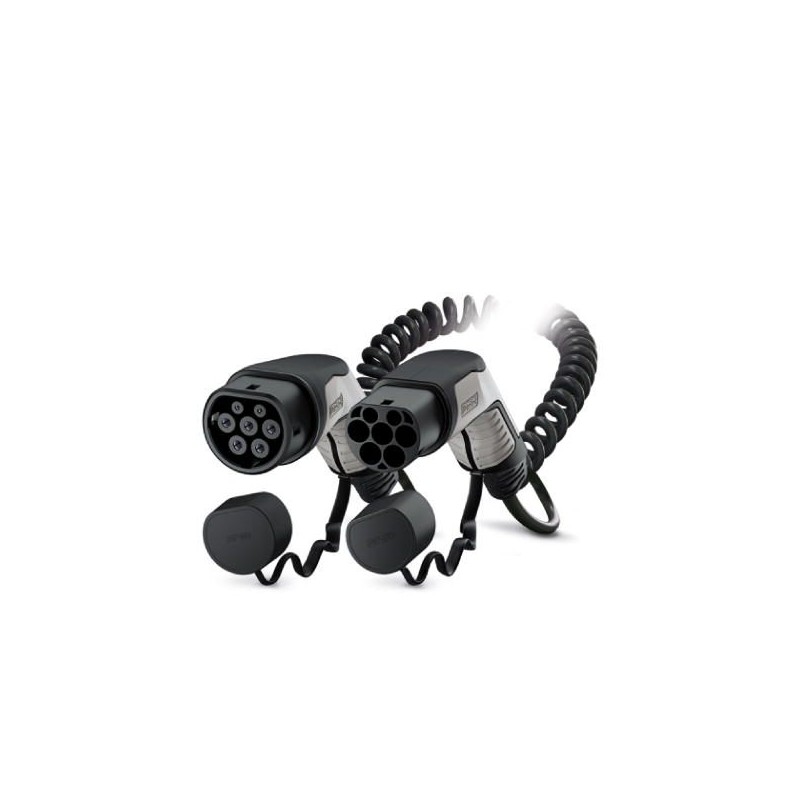

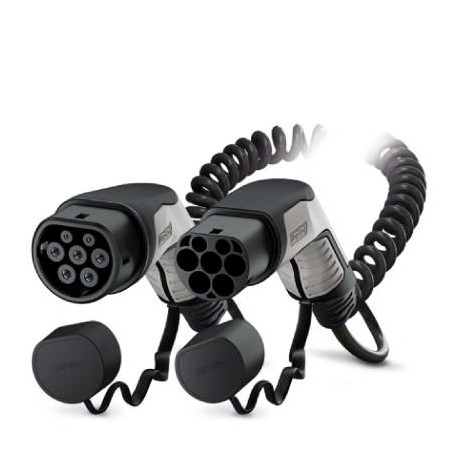

EV-T2G3PC-3AC32A-4,0M6,0EHBK01 1627136 PHOENIX CONTACT AC charging cable
EV-T2G3PC-3AC32A-4,0M6,0EHBK01
1627136
PHOENIX_CONTACT
AC charging cable
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1627136 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 749 (C-2-2017) |
| GTIN | 4055626299488 |
| Weight per Piece (excluding packing) | 4,550.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Mobile AC charging cable with vehicle connector and infrastructure plug, with protective cap |
|---|---|
| Type | C-Line black / gray |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case B |
Dimensions
| Vehicle connector width | 70.00 mm |
|---|---|
| Vehicle connector height | 137.00 mm |
| Vehicle connector depth | 215.90 mm |
| Infrastructure plug width | 58.00 mm |
| Infrastructure plug height | 131.80 mm |
| Infrastructure plug depth | 233.40 mm |
| Conductor length | 4 m |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP54 (Protective cap) |
Electrical properties
| Maximum charging power | 26.6 kW |
|---|---|
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 220 Ω (between PE and PP) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | C-Line |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | gray |
| Color protective cap | black |
| Customer variations | On request |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Material protective cap | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 5 x 6.0 mm² + 1 x 0.5 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 5 |
| Wiring certifications | VDE |
| External cable diameter | 17 mm ±0.4 mm |
| Type of conductor | spiraled |
| Outer sheath, material | TPE-U |
| External sheath, color | black |
| Minimum bending radius | 255 mm (15 x diameter) |
| Coil diameter | 80 mm ±10 % |
| Block length | 0.63 m ±10 % |
| Effective length | max. 4 m ±5 % |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144705
