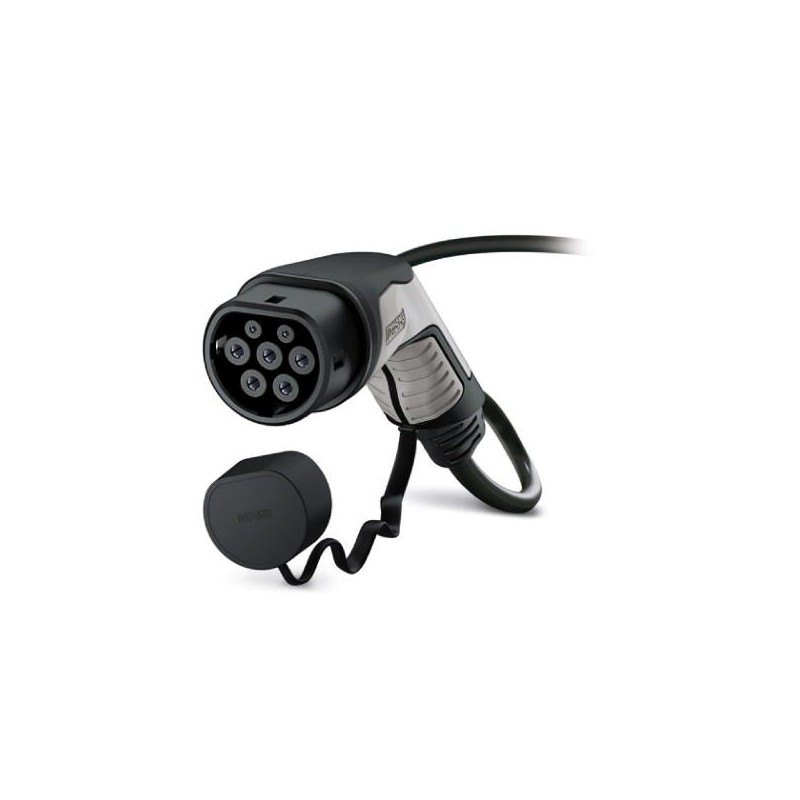

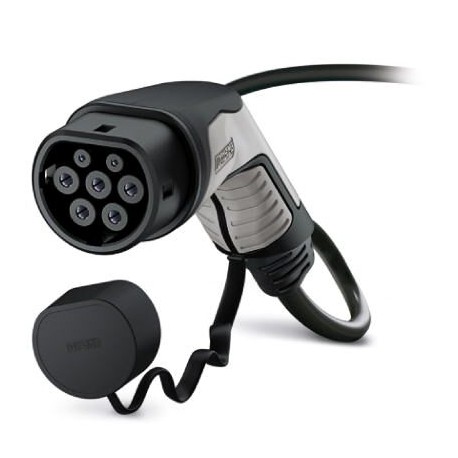

EV-T2G3C-3AC32A-5,0M6,0ES-CIR 1114686 PHOENIX CONTACT Charging cable AC charging Cable AC charging connector..
EV-T2G3C-3AC32A-5,0M6,0ES-CIR
1114686
PHOENIX_CONTACT
Charging cable AC charging Cable AC charging connector for vehicles, end of free cable, capped, C-Line black/gray, typea diagonal no. 2, IEC 62196-2, 32 A / 480 V (AC), design line (C-Line, cable: 5 m, black, straight, face of plug: black, grip zone: grey
CHARX connect, AC charging cable with vehicle charging connector and open cable end, with cap, Black-grey housing colour, for alternating current (AC) charging electric vehicles (EV) with type 2 vehicle inputs, for installation on charging stations for electromobility (EVSE), Type 2, IEC 62196-2, 32 A / 480 V (AC), C-Line, Separate stripping length, cable: 5 m, black, straight
AC charging cables, AC charging cable with vehicle charging connector, free cable end, with cap, C-Line black / grey, Type 2, IEC 62196-2, 32 A / 480 V (AC), C-Line design line, cable: 5 m, black, straight, plug face: black, grip area: grey
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million one hundred fourteen thousand six hundred eighty six |
|---|---|
| Packing unit | 1 pcs |
| Key selling | XWBAAC - |
| EAN | Four trillion sixty three billion one hundred fifty one million thirty nine thousand four |
| Unit weight (excluding packaging) | 0,000 g |
Drawings
Definition of the product
| Product type | Charging Cable AC charging connector for vehicles, end of free cable, with cap |
|---|---|
| Execution | C-Line black / gray |
| Standards/specifications | IEC 62196-2 |
| Standard load | Type 2 |
| Charging mode | Mode 3, case C |
| Observation |
Dimensions
| The width of the charging connector for vehicles | 70,00 mm |
|---|---|
| Height of the charging connector for vehicles | 137,00 mm |
| Depth charging connector for vehicles | 215,90 mm |
| Cable length | 5 m |
Environmental conditions
| Room temperature (service) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
| Altitude max. | 5000 m (above sea level) |
| Index of protection | IP44 (plugged in, the index of protection operating state and plugged in it can be assured only when both connecting elements are original products of Phoenix Contact products or standardized equivalent) |
| IP54 (Cap) |
Electrical properties
| Power of maximum load | 26,6 kW |
|---|---|
| Number of phases | Three |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Power contacts rated current | 32 To |
| Power contacts rated voltage | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Contacts notice rated current | 2 To |
| Contacts notice rated voltage | 30 V AC |
| Type of transmission of signals | Modulation of duration of impulses |
| Note about the type of connection | Connection set, not separable |
| Coding of resistance | 220 Ω (between PE and PP) |
Mechanical characteristics
| Cycles of plug | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Force of separation | < 100 N |
Design
| Line design | C-Line |
|---|---|
| Color housing | black |
| Color face plug | black |
| Color of the grip area | grey |
| Color of the cap | black |
| Variations of the client | On-demand |
Material
| Material housing | Plastic |
|---|---|
| Material of the grip area | Soft plastic |
| Material cap | Soft plastic |
| Media face plug | Plastic |
| Class of combustibility | V0 |
| Surface of the material of the contacts | Ag |
Cable
| Structure of cable | 5 x 6.0 mm2 + 1 x 0.5 mm2 |
|---|---|
| Standards/specifications on cables | prEN 50620 / DIN en 50620 |
| Class of cable | Class 5 |
| Certifications of cables | VDE |
| Outer diameter of cable | 17 mm ±0.4 mm |
| Type of cable | straight |
| Resistance of the cable | ≤ 0,0033 Ω/m (with respect to a power cable, at an ambient temperature of 20 °C) |
| Outer casing, material | TPE-U |
| Outer wrap, color | black |
| Bending radius minimum | 255 mm (15 x diameter) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 10 years; |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
