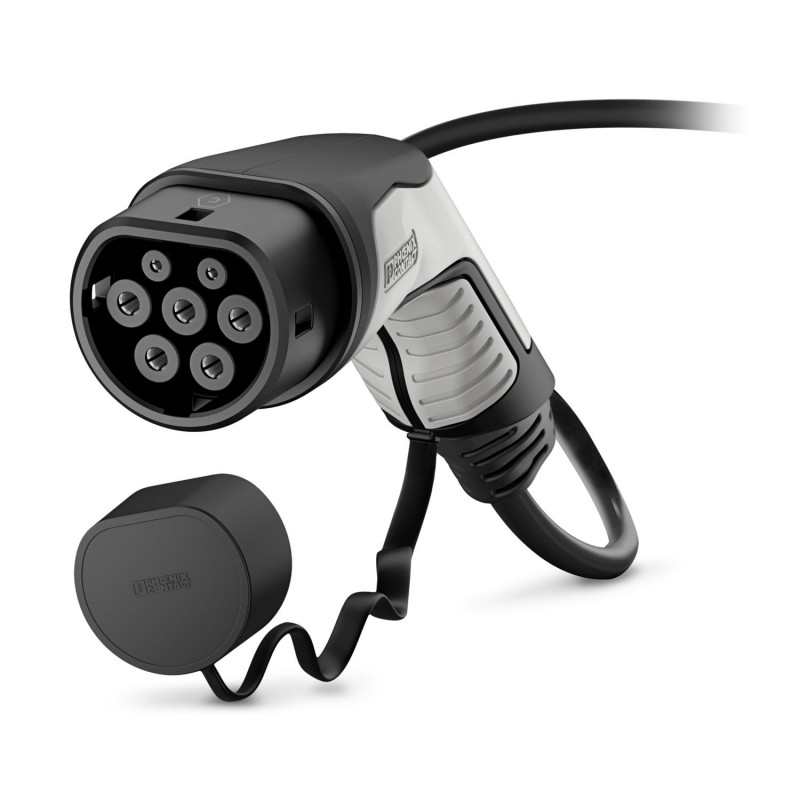

EV-T2G3C-3AC20A-5,0M2,5ESBK01 1627365 PHOENIX CONTACT AC charging cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EV-T2G3C-3AC20A-5,0M2,5ESBK01 1627365 PHOENIX CONTACT AC charging cable

EV-T2G3C-3AC20A-5,0M2,5ESBK01

1627365

PHOENIX_CONTACT

Available Ship on today

New orders for this item will be processed from April 13

AC charging cable

More details


E-Mobility

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $195.26
Unit price: $195.26

Quantity Price
1+$195.26
2+$178.43
3+$171.59
4+$167.71
6+$163.77
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey1627365
Packing unit1 pc
Catalog pagePage 747 (C-2-2017)
GTIN4055626317021
Weight per Piece (excluding packing)1,750.000 g
Custom tariff number85444290
Country of originDE (Germany)

Product definition

Product typeAC charging cable with Vehicle Connector, open cable end, with protective cap
TypeC-Line black / gray
Standards/regulationsIEC 62196-2
Charging standardType 2
Charging modeMode 3, Case C
NoteLogo 'EBG'

Dimensions

Vehicle connector width70.00 mm
Vehicle connector height137.00 mm
Vehicle connector depth215.90 mm
Conductor length5 m
Stripping length60 mm ±15 mm

Ambient conditions

Ambient temperature (operation)-30 °C ... 50 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C
Max. altitude5000 m (above sea level)
Degree of protectionIP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products)
IP54 (Protective cap)

Electrical properties

Maximum charging power16.63 kW
Number of phases3
Number of power contacts5 (L1, L2, L3, N, PE)
Rated current of power contacts20 A
Rated voltage for power contacts480 V AC
Number of signal contacts2 (CP, PP)
Rated current for signal contacts2 A
Rated voltage for signal contacts30 V AC
Type of signal transmissionPulse width modulation
Note on the connection methodCrimp connection, cannot be disconnected
Resistor coding680 Ω (between PE and PP)

Mechanical properties

Insertion/withdrawal cycles> 10000
Insertion force< 100 N
Withdrawal force< 100 N

Design

Design lineC-Line
Housing colorblack
Mating face colorblack
Color handle areagray
Color protective capblack
Customer variationsOn request

Material

Housing materialPlastic
Material handle areaSoft plastic
Material protective capSoft plastic
Material mating facePlastic
Flammability ratingV0
Material surface of contactsAg

Cable

Cable structure5 x 2.5 mm² + 1 x 0.5 mm²
Wiring standards/regulationsprEN 50620 / DIN EN 50620
Wiring classClass 5
Wiring certificationsVDE
External cable diameter12.8 mm ±0.4 mm
Type of conductorstraight
Outer sheath, materialTPE-U
External sheath, colorblack
Minimum bending radius192 mm (15 x diameter)

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 10;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
