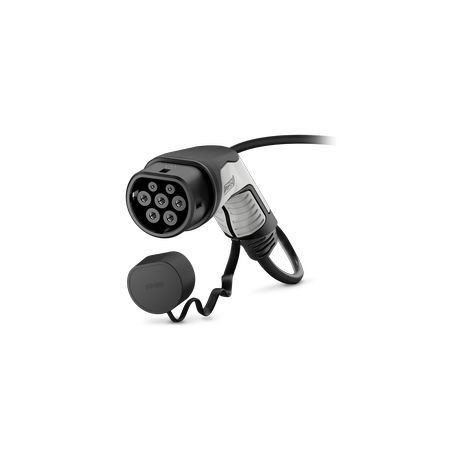

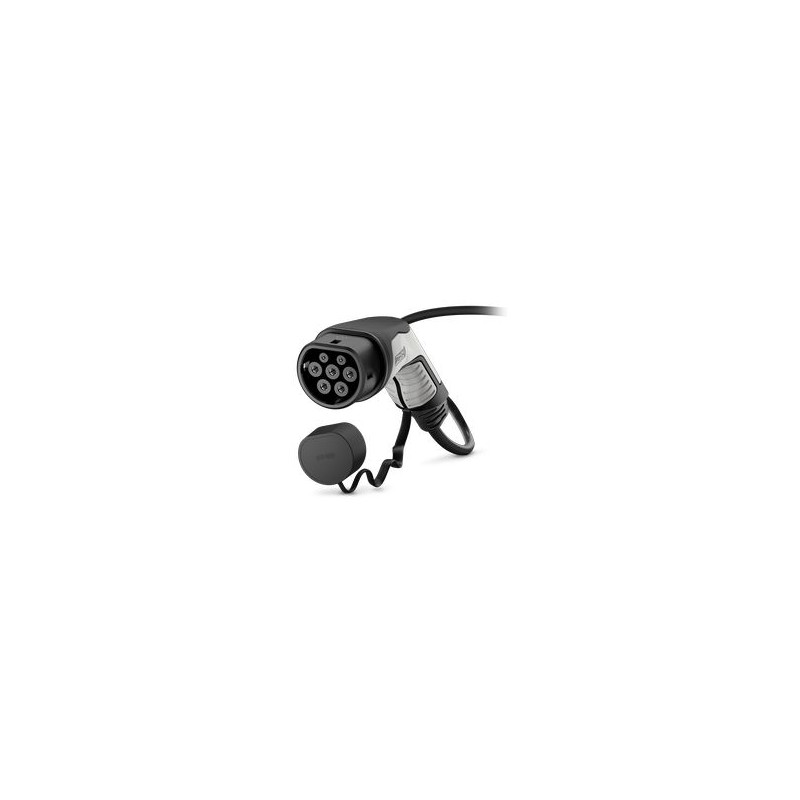

EV-T2G3C-1AC32A-5,0M4,0-W1X2 1463956 PHOENIX CONTACT Charging cable
EV-T2G3C-1AC32A-5,0M4,0-W1X2
1463956
PHOENIX_CONTACT
Charging cable
CHARX connect comfort, AC charging cable, with vehicle charging connector and open cable end, For charging with alternating current (AC) electric vehicles (EV) with charging inputs for Type 2 vehicles, With cap, Type 2, IEC 62196-2, 32 A / 250 V (AC), housing: black, grey, Engraved WALLBOX logo, cable: 5 m, Black, Straight, Separate Stripping Length, Ultrasonic Welded Cable End
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | AC Charging Cables |
| Product Family | CHARX connect comfort |
| application | For alternating current (AC) charging electric vehicles (EVs) with Type 2 vehicle charging inputs |
| for installation at charging stations for electromobility (EVSE) | |
| Execution | AC Charging Cable |
| with vehicle charging connector and open cable end | |
| Components | With cap |
| Logo Placed | Engraved WALLBOX logo |
| Charging Mode | Mode 3, Case C |
| Charging Standard | Type 2 |
| Type of Signal Transmission | Pulse Duration Modulation |
| Note about the connection type | Crimped, non-detachable connection |
| Codification | 220 Ω (between PE and PP) |
| Charging Current Type | Single-phase AC |
| Charging power | 8 kW |
| Charging current | 32 A |
| Power Contact | |
| Number | 3 (L1, N, PE) |
| Nominal voltage | 250 V AC |
| Rated Current | 32 A |
| Notification Contact | |
| Number | 2 (CP, PP) |
| Nominal voltage | 30 V AC |
| Rated Current | 2 A |
| Vehicle Charging Connector | |
| Width | 70 mm |
| Height | 137 mm |
| Depth | 215.9 mm |
| Color (Housing) | Black (9005) |
| Color (Grip Zone) | Grey (7042) |
| Color (Plug-in Face) | Black (9005) |
| Color (Cap) | Black (9005) |
| Color (Wires) | Black (9005) |
| Material (Vehicle Charging Connector) | Plastic |
| Material (Cable Outer Sheath) | TPE-U |
| Material (Surface contacts) | Silver |
| Cable length | 5 m |
| Cable Weight | max. 242 kg/km |
| Cable type | straight |
| Cable Structure | 3 x 4.0 mm² + 1 x 0.5 mm² |
| Cable Outer Diameter | 11.5 mm ±0.3 mm |
| Outer Wrap, Material | TPE-U |
| Line Resistance | ≤ 0.00425 Ω/m (compared to a power cable, at an ambient temperature of 20 °C) |
| Bending radius | min. 92 mm (8x diameter) |
| Mechanical data | |
| Plug Cycles | > 10000 |
| Insertion Force | < 100 N |
| Separation Force | < 100 N |
| Environmental conditions | |
| Protection Rating (Vehicle Charging Connector) | IP44 (plugged in, the protection rating in operating and plugged in can only be guaranteed if both connection elements are original Phoenix Contact products or equivalent standard products) |
| Protection Index (Cap) | IP54 |
| Ambient Temperature (Service) | -40 °C ... 50 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/Specifications | IEC 62196-2 |
