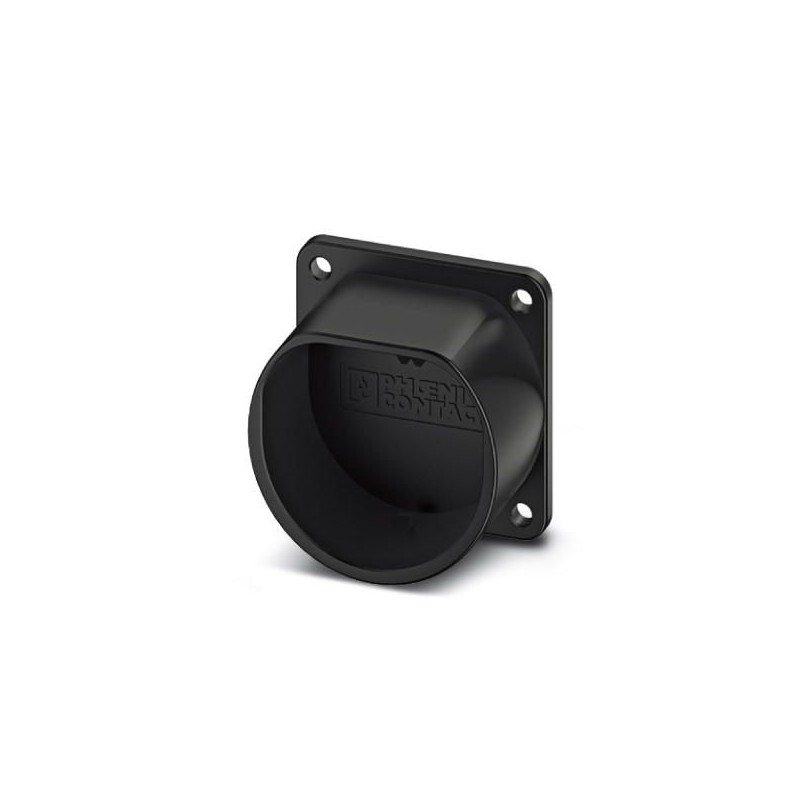

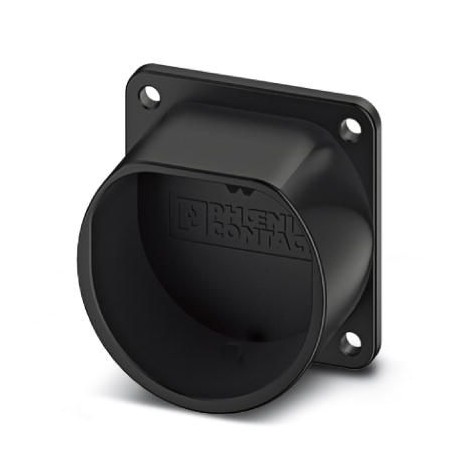

EV-T2AC-PARK 1624148 PHOENIX CONTACT Park position
EV-T2AC-PARK
1624148
PHOENIX_CONTACT
Park position
CHARX connect, Vehicle charging connector holder, Accessories, for vehicle charging connectors on charging stations (EVSE), Type 2, IEC62196-2, Front wall mounting, D-Line, housing: black, PHOENIX CONTACT logo
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1624148 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 758 (C-2-2017) |
| GTIN | 4055626242828 |
| Weight per Piece (excluding packing) | 80.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Retainer for Vehicle Connector as parking position at charging stations (EVSE) |
|---|---|
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3 |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Degree of protection | IP54 |
Mechanical properties
| Vehicle Connector fixing | With locking clips for locking contour |
|---|---|
| Removal of the Vehicle Connector | Lifting and removal |
| Detection of the Vehicle Connector | On request |
Mounting
| Possible mounting positions | Front mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 45 degree frontal inclination possible, see figure |
| Mounting hole diameter | 6.00 mm (ø) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127144792eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144792
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
