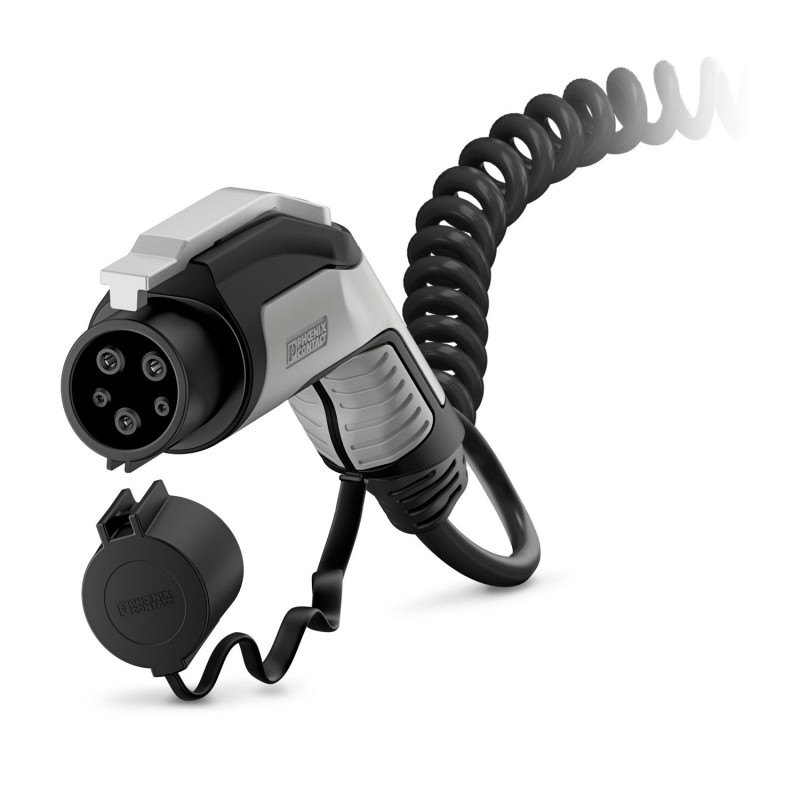

EV-T1G3C-1AC20A-4,0M2,5EHBK01 1627345 PHOENIX CONTACT AC charging cable
EV-T1G3C-1AC20A-4,0M2,5EHBK01
1627345
PHOENIX_CONTACT
AC charging cable
CHARX connect, AC charging cable, with vehicle charging connector and open cable end, For alternating current (AC) charging electric vehicles (EV) with type 1 vehicle charging inputs, With cap, Type1, IEC62196-2, SAEJ1772, 20 A / 250 V (AC), C-Line, housing: black, gray, PHOENIX CONTACT logo, cable: 4 m, black, spiral
CHARX connect comfort, AC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, with protective cap, Type 1, IEC 62196-2, SAE J1772, 20 A / 250 V (AC), housing: black, gray, PHOENIX CONTACT logo, cable: 4 m, black, spiraled
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | AC charging cable |
| Product family | CHARX connect comfort |
| Application | for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets |
| for installation at charging stations for electromobility (EVSE) | |
| Type | AC charging cable |
| with vehicle charging connector and open cable end | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Data management status | |
| Article revision | 06 |
| Charging mode | Mode 3, Case C |
| Charging standard | Type 1 |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) | |
| Type of charging current | AC single-phase |
| Charging power | 5 kW |
| Charging current | 20 A |
| Power contact | |
| Number | 3 (L1, N, PE) |
| Rated voltage | 250 V AC |
| Rated current | 20 A |
| Signal contact | |
| Number | 2 (CP, CS) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Vehicle charging connector | |
| Width | 58 mm |
| Height | 151.1 mm |
| Depth | 236.1 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Actuating element) | silver grey (7001) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Contact surface) | Silver |
| Cable length | 4 m |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Wiring certifications | VDE |
| Cable type | Class 5 |
| Cable type | spiraled |
| Cable structure | 3 x 2.5 mm² + 1 x 0.5 mm² |
| External cable diameter | 10.20 mm ±0.3 mm |
| Outer sheath, material | TPE-U |
| Stripping length of the sheath | 70 mm ±5 mm |
| Block length | 0.68 m ±10 % |
| Coil diameter | 45 mm ±10 % |
| Effective length | max. 4 m ±5 % |
| Stripping length | 70 mm ±5 mm |
| Cable resistance | ≤ 0.00798 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 153 mm (15x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 75 N |
| Withdrawal force | < 75 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging inlet) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| SAE J1772 | |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC single phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 1 |
| Type infrastructure side (EF009319) | Free conductor end |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 20 A |
| Nominal voltage (EF000002) | 250 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 4 m |
| Cable type (EF000081) | Spiralized |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
