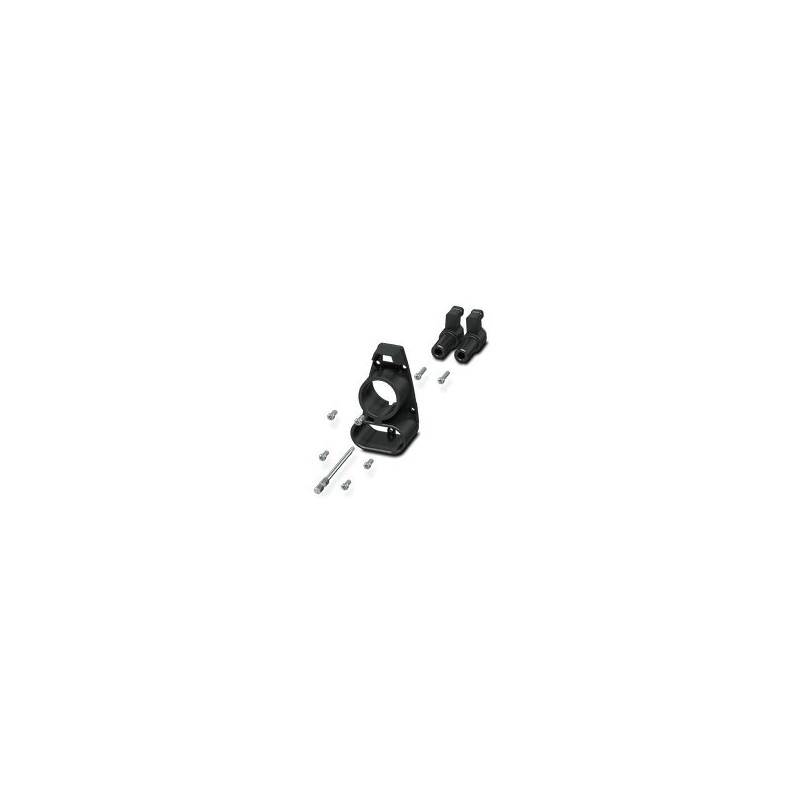

EV-T1CCS-MF-M4X10-BIT-C 1158266 PHOENIX CONTACT CHARX connect, Repair kit, with replaceable plug-in face fra..
EV-T1CCS-MF-M4X10-BIT-C
1158266
PHOENIX_CONTACT
CHARX connect, Repair kit, with replaceable plug-in face frame, with 5 units of M4X10 countersunk head screws with torque safety drive, with special tip for safety screwdriver, with DC contact fastening with integrated front part of dc contacts, for replacement of the plug-in face frame of vehicle charging connectors, Combined Charging System, CCS type 1, IEC 62196-3, SAE J1772, No need to open the vehicle charging connector housing to replace the plug-in face frame.
CHARX connect standard, Repair kit, Accessories, with DC contact holder with integrated front part of the DC contacts, with replaceable mating face frame, with 5x M4X10 flat-head screws with Torx safety drive (IPR TORX PLUS), with special bit (867/4 IPR TORX PLUS® bit, 20 IPR x 89 mm) for insulated screwdriver, for replacement of the mating face frame of vehicle charging connectors, CCS type 1, IEC 62196-3, SAE J1772, Screw mounting, housing: black, The vehicle connector housing does not have to be opened in order to replace the mating face frame.
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | The vehicle connector housing does not have to be opened in order to replace the mating face frame. |
| Product type | Repair kit |
| Product family | CHARX connect standard |
| Application | for replacement of the mating face frame of vehicle charging connectors |
| Type | Accessories |
| Design | with DC contact holder with integrated front part of the DC contacts |
| with replaceable mating face frame | |
| with 5x M4X10 flat-head screws with Torx safety drive (IPR TORX PLUS) | |
| with special bit (867/4 IPR TORX PLUS® bit, 20 IPR x 89 mm) for insulated screwdriver | |
| Technology | Combined Charging System |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
| Cross section AWG | (converted acc. to IEC) |
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Ambient conditions | |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards | |
| Standards/regulations | IEC 62196-3 |
| SAE J1772 | |
| Mounting type | Screw mounting |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
|
