View larger

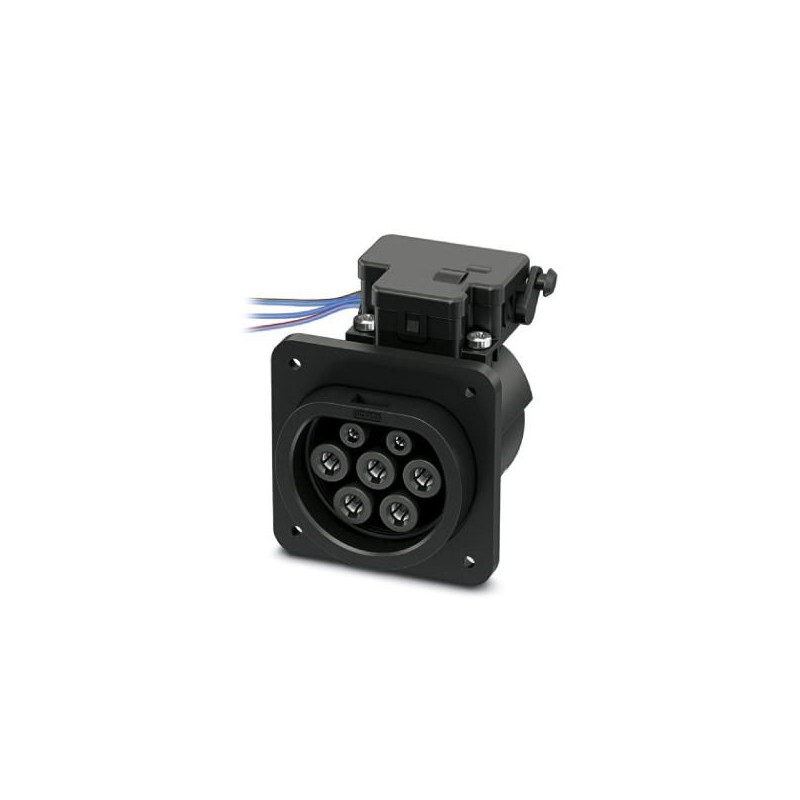

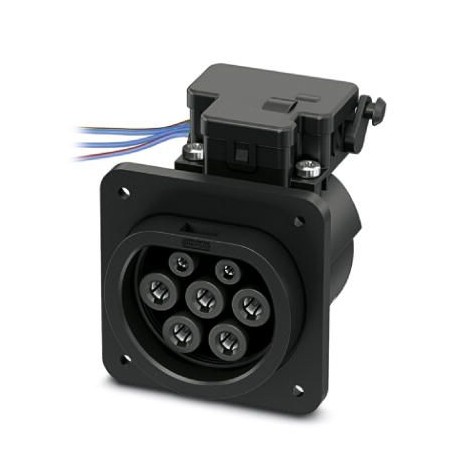

EV-GBM3SE12-1AC32A-0,7M6,0E10 1408171 PHOENIX CONTACT Socket Outlet
EV-GBM3SE12-1AC32A-0,7M6,0E10
1408171
PHOENIX_CONTACT
Socket Outlet
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1408171 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 756 (C-2-2017) |
| GTIN | 4046356856027 |
| Weight per Piece (excluding packing) | 475.000 g |
| Custom tariff number | 85444290 |
| Country of origin | CN (China) |
Product definition
| Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
|---|---|
| Type | Rear protective cover screw connection |
| Standards/regulations | GB/T 20234.2-2015 |
| Charging standard | GB/T |
| Charging mode | Mode 3, Case B |
| Note on the connection method | Crimp connection, cannot be disconnected |
Dimensions
| Height | 96 mm |
|---|---|
| Width | 75 mm |
| Depth | 76.2 mm |
| Bore dimensions | 60 mm x 60 mm |
| Conductor length | 0.7 m (AC cables) |
| 0.5 m (Locking actuator cables) | |
| Cable structure | 3x 6.0 mm² + 2x 0.5 mm² |
| Type of conductor | Single wires |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP55 (plugged in) |
| IP55 (with protective cover, see accessories) |
Electrical properties
| Maximum charging power | 7 kW |
|---|---|
| Type of charging current | AC single-phase |
| Number of phases | 1 |
| Number of power contacts | 3 (L1, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 250 V AC |
| Number of signal contacts | 2 (CP, CC) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Mounting
| Possible mounting positions | Rear panel mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
| Mounting position of the locking actuator | Top center |
| Required installation depth | < 5 mm (Rear panel mounting) |
| Max. wall thickness | > 57 mm (Rear panel mounting) |
| Mounting hole diameter | 7.00 mm (ø) |
Locking
| Locking type | Locking in the inserted state with a locking mechanism |
|---|---|
| Locking voltage | 12 V |
| Locking detection | available |
| Mechanical emergency release | available |
Locking actuator
| Typical power supply at the motor | 12 V |
|---|---|
| Possible power supply range at the motor | 9 V ... 16 V |
| Typical motor current for locking | 0.2 A |
| Max. reverse current of the motor | 1 A |
| Max. dwell time with reverse current | 1000 ms |
| Recommended adaptation time | 600 ms |
| Pause time after entry or exit path | 3 s |
| Maximum voltage for locking detection | 30 V |
| Service life | > 10000 load cycles |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Length of cable | 0.5 m |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144706
