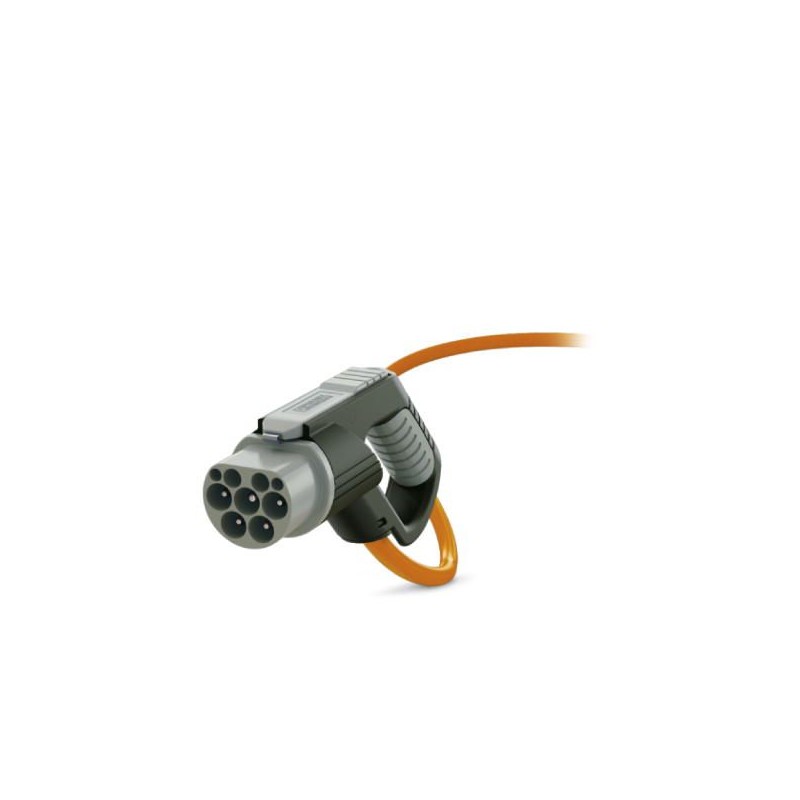

EV-GBM3C-1AC16A-7,0M2,5ESOG00U 1627313 PHOENIX CONTACT Charging Cable AC charging connector for vehicles, en..
EV-GBM3C-1AC16A-7,0M2,5ESOG00U
1627313
PHOENIX_CONTACT
Charging Cable AC charging connector for vehicles, end of cable open, no cap,GB/T,GB/T 20234.2,16 A / 250 V (AC),Data cable: 7 m,orange,straight,Line design Standard
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | One million six hundred twenty seven thousand three hundred thirteen |
|---|---|
| Packing unit | 1 pcs |
| Key selling | XWBAAF - |
| EAN | Four trillion fifty five billion six hundred twenty six million three hundred one thousand four hundred ninety five |
| Unit weight (excluding packaging) | 22,220 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | CN (China) |
Definition of the product
| Product type | Charging Cable AC charging connector for vehicles, end of free cable, without cap |
|---|---|
| Execution | D-Line |
| Standards/specifications | GB/T 20234.2 |
| Standard load | GB/T |
| Charging mode | Mode 3, case C |
| Observation | IMPORTANT: because the case involves a cable management. |
| In certain areas, you require a management of cables if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (US) (IEC 61851-1). |
Dimensions
| The width of the charging connector for vehicles | 60,00 mm |
|---|---|
| Height of the charging connector for vehicles | 112,40 mm |
| Depth charging connector for vehicles | 219,10 mm |
| Cable length | 7 m |
| Length of peeling | 45 mm ±10 mm |
Environmental conditions
| Room temperature (service) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
| Altitude max. | 5000 m (above sea level) |
| Index of protection | IP55 (plugged in, the index of protection operating state and plugged in it can be assured only when both connecting elements are original products of Phoenix Contact products or standardized equivalent) |
| IP54 (Cap) |
Electrical properties
| Power of maximum load | 4 kW |
|---|---|
| Number of phases | One |
| Number of power contacts | 3 (L, N, PE) |
| Power contacts rated current | 16 To |
| Power contacts rated voltage | 250 V |
| Number of signal contacts | 2 (CP, CC) |
| Contacts notice rated current | 2 To |
| Contacts notice rated voltage | 30 V AC |
| Type of transmission of signals | Modulation of duration of impulses |
| Note about the type of connection | Connection set, not separable |
| Coding of resistance | 680 Ω (between PE and CC) |
Design
| Line design | D-Line |
|---|---|
| Color housing | black |
| Color face plug | grey |
| Color of the grip area | grey |
| The Color of the drive element | grey |
| Color of the cap | black |
| Tag | 14.1 mm x 44,8 mm (customer's logo under request) |
Material
| Material housing | Plastic |
|---|---|
| Material of the grip area | Soft plastic |
| Material of the drive lever | Plastic |
| Material cap | Plastic |
| Media face plug | Plastic |
| Surface of the material of the contacts | Ag |
Cable
| Structure of cable | 3 x 2.5 mm2 + 1 x 0.5 mm2 (GB/T 25087-2010, ISO 14572) |
|---|---|
| Class of cable | Class 6 |
| Outer diameter of cable | 10.5 mm ±0.5 mm |
| Type of cable | straight |
| Outer casing, material | TPE |
| Outer wrap, color | orange |
| Bending radius minimum | 157,5 mm (15 x diameter) |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 10 years; |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
