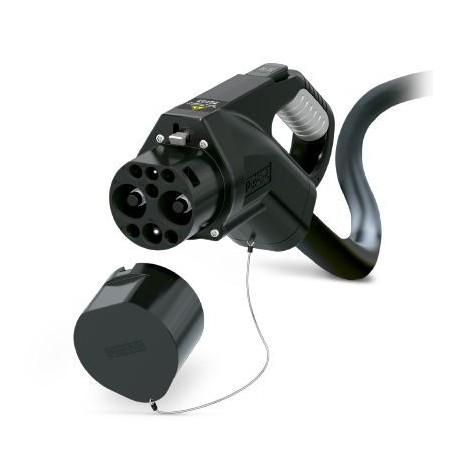

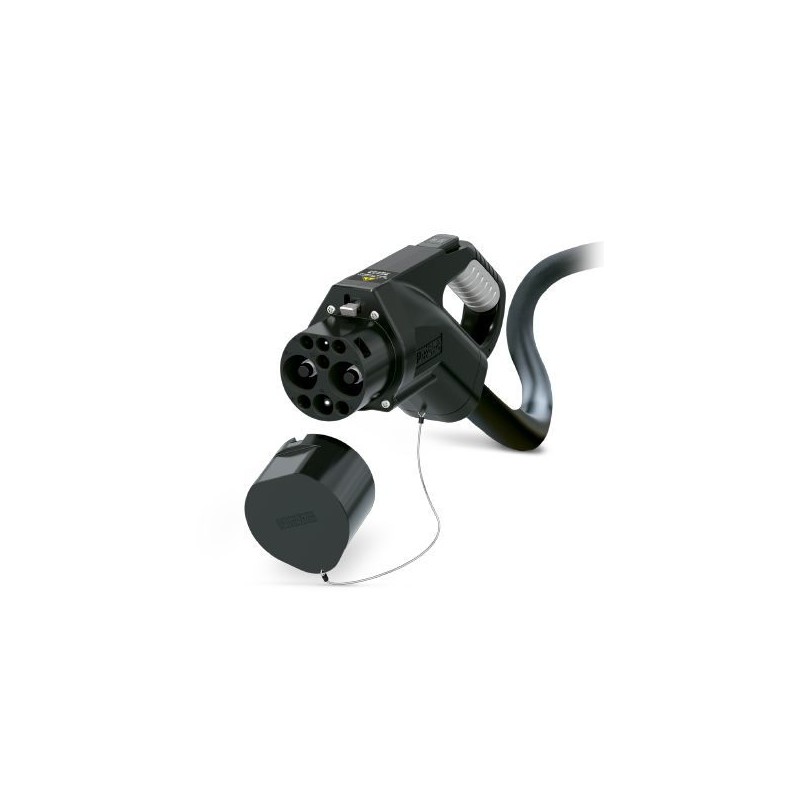

EV-GBG4C-DC80A-5,0M16ESBK01 1031383 PHOENIX CONTACT DC charging cable
EV-GBG4C-DC80A-5,0M16ESBK01
1031383
PHOENIX_CONTACT
DC charging cable
CHARX connect, DC charging cable with vehicle charging connector and open cable end, Black-gray housing color, with cap, with temperature sensors, For direct current (DC) charging of electric vehicles (EV), for installation on charging stations for electromobility (EVSE), GB/T, GB/T 20234.1-2015, GB/T 20234.3-2015, 80 A / 1000 V (DC), Generation 2, "PHOENIX CONTACT" logo, cable: 5 m, black, straight
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1031383 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626534473 |
| Weight per Piece (excluding packing) | 11,320.000 g |
| Custom tariff number | 85444290 |
| Country of origin | CN (China) |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Product definition
| Product type | DC charging cable with Vehicle Connector, open cable end, with protective cap |
|---|---|
| Standards/regulations | GB/T 20234.1-2015, GB/T 20234.3-2015 |
| Charging standard | GB/T |
| Charging mode | Mode 4 |
Dimensions
| Vehicle connector width | 77.00 mm |
|---|---|
| Vehicle connector height | 137.80 mm |
| Vehicle connector depth | 279.40 mm |
| Conductor length | 5 m |
| Stripping length | 150 mm ±20 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP54 (Protective cap) |
Electrical properties
| Maximum charging power | 80 kW |
|---|---|
| Number of power contacts | 3 (PE, DC+, DC-) |
| Rated current of power contacts | 80 A |
| Rated voltage for power contacts | 1000 V DC |
| Number of signal contacts | 6 (S+, S-, A+, A-, CC1, CC2) |
| Type of signal transmission | according to GB/T 27930-2015 |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 1000 Ω (between PE and CC1 / PE and CC2) |
| Temperature monitoring | 2x Pt 1000 |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | Standard |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | gray |
| Actuating element color | black |
| Color protective cap | black |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
| Customer variations | On request |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Actuating lever material | Metal |
| Material protective cap | Plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 3 x 16 mm² + 2 x 4 mm² + (2 × 0.75 mm²) P + 10 x 0.75 mm² |
|---|---|
| Wiring standards/regulations | GB/T 33594-2017 |
| Wiring class | Class 5/6 |
| Wiring certifications | CQC1105-2015 |
| External cable diameter | 27 mm ±0.4 mm |
| Type of conductor | straight |
| Outer sheath, material | TPU |
| External sheath, color | black |
| Minimum bending radius | 135 mm (5 x diameter) |
Locking
| Locking type | Locking option for actuating lever with actuators integrated in the Vehicle Connector |
|---|---|
| Locking voltage | 12 V |
Temperature sensors
| Type of sensor | Pt 1000 |
|---|---|
| Standards/regulations | DIN EN 60751 |
| Recommended measured current | 1 mA (1 V at 0°C) |
| Tolerance at the sensor with the recommended measured current | ±1K |
| Temperature range | -50 °C ... 130 °C |
| Temperature coefficient (TCR) | 3850 ppm/K |
| Long-term stability (max. R0-Drift) | 0.06 % (After 1000 hours at 130°C) |
| Shutdown temperature | 90 °C equivalent to a Pt 1000 value of 1346.5 Ω |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
