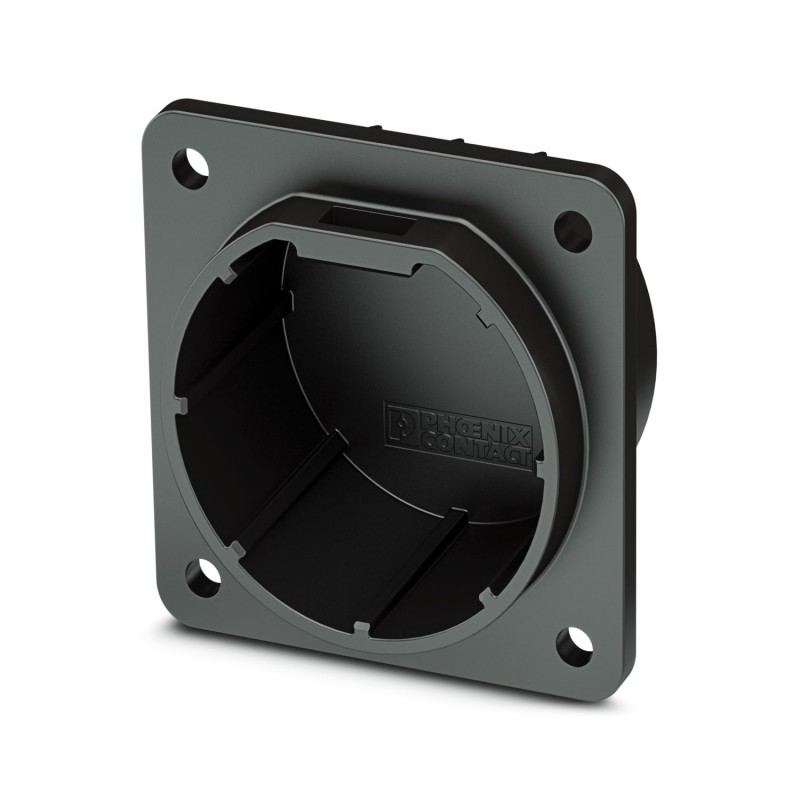

EV-GBDC-PARK-SW 1623497 PHOENIX CONTACT Park position
EV-GBDC-PARK-SW
1623497
PHOENIX_CONTACT
Park position
CHARX connect, Vehicle charging connector holder, Accessories, for vehicle charging connectors on charging posts (EVSE), GB/T, GB/T20234.3, Front wall mounting, D-Line, C-Line, housing: black
CHARX connect, Charging connector holder, Accessories, for vehicle charging connectors on charging stations (EVSE), GB/T, GB/T 20234.3, Front mounting, Park position with pushbutton (N/C contact) to detect the plug state., housing: black
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Charging connector holder |
| Product family | CHARX connect |
| Application | for vehicle charging connectors on charging stations (EVSE) |
| Type | Accessories |
| Charging standard | GB/T |
| Charging mode | Mode 4 |
| Width | 91 mm |
| Height | 91 mm |
| Depth | 68.75 mm |
| Dimensional drawing |  |
| Bore dimensions | 72 mm x 72 mm |
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Flammability rating according to UL 94 | V0 () |
| Securing | With actuation lever |
| Detection | Park position with pushbutton (N/C contact) to detect the plug state. |
| Removal | Lever actuation and removal |
| Ambient conditions | |
| Degree of protection | IP54 (plugged in) |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards | |
| Standards/regulations | GB/T 20234.3 |
| Mounting type Charging connector holder | Front mounting (0° ... 45° frontal inclination possible) |
| Mounting hole diameter | 7.00 mm |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
