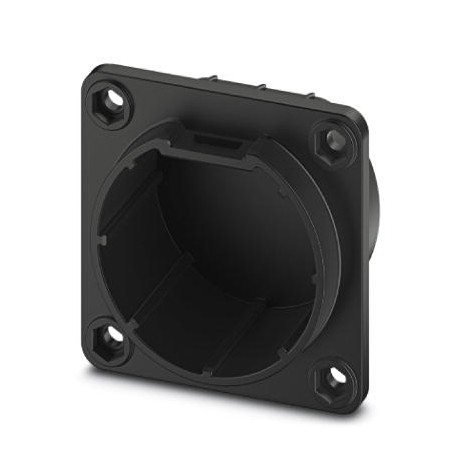

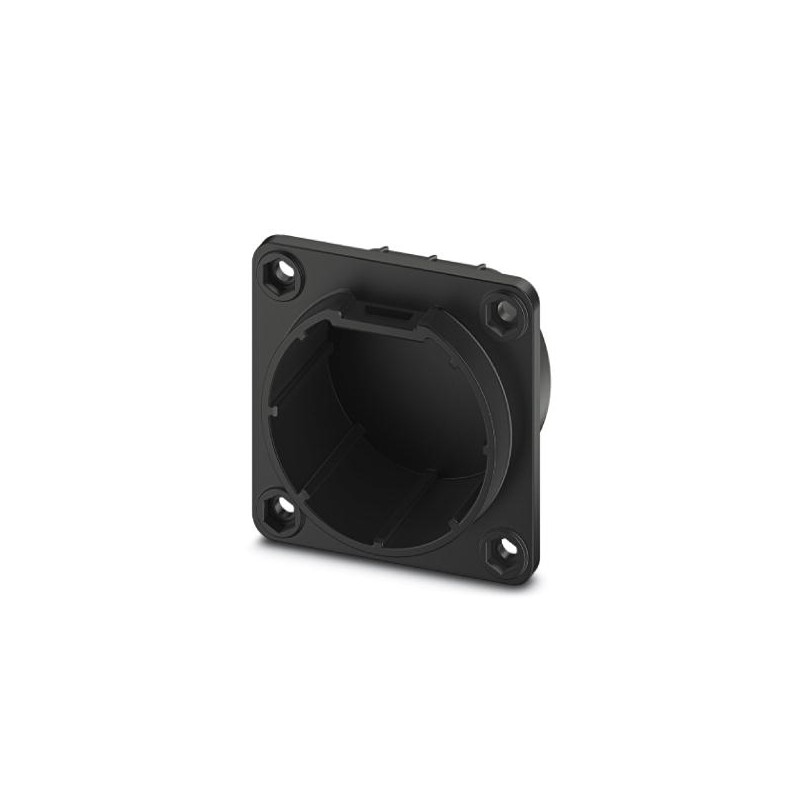

EV-GBDC-PARK 1623770 PHOENIX CONTACT Park position
EV-GBDC-PARK
1623770
PHOENIX_CONTACT
Park position
Industrial socket/plug applications > Accessories/spare parts for E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1623770 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 759 (C-2-2017) |
| GTIN | 4055626208855 |
| Weight per Piece (excluding packing) | 105.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
Product definition
| Product type | Retainer for Vehicle Connector as parking position at charging stations (EVSE) |
|---|---|
| Standards/regulations | GB/T 20234.3 |
| Charging standard | GB/T |
| Charging mode | Mode 4 |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Degree of protection | IP54 |
Mechanical properties
| Vehicle Connector fixing | With actuation lever |
|---|---|
| Removal of the Vehicle Connector | Lever actuation and removal |
| Detection of the Vehicle Connector | On request |
Mounting
| Possible mounting positions | Front mounting |
|---|---|
| Restrictions to mounting position | Only 0 to 45 degree frontal inclination possible, see figure |
| Mounting hole diameter | 7.00 mm (Hexagonal fixing with SW10) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 10.0.127144792eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027449001eCl@ss 8.027449001eCl@ss 9.027144792
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
|
