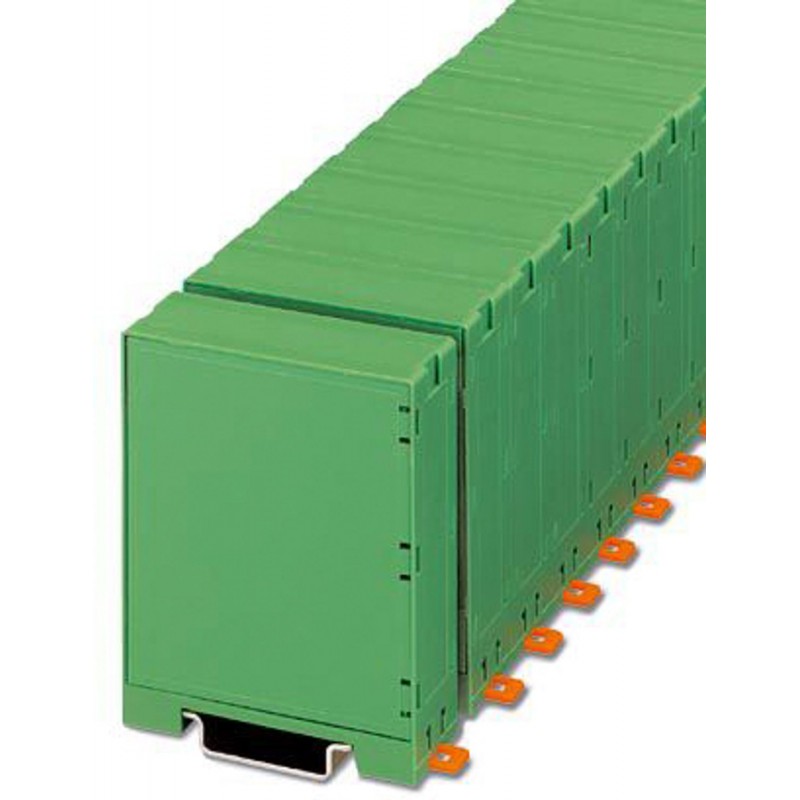

EMUG 22- BE 2943479 PHOENIX CONTACT Electronic housing
EMUG 22- BE
2943479
PHOENIX_CONTACT
10
Electronic housing
Base element with fixing foot, for mounting on standard rail, width 22.5 mm
Base element with snap-on foot, for mounting on standard DIN rail, 22.5 mm wide
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Housing |
| Housing type | Component housing |
| Housing series | EMUG |
| Type | Housing base element, side panels necessary to complete the module |
| Number of positions | 999 |
| Dimensional drawing |  |
| Width | 22.5 mm |
| Height NS 35/7,5 | 77 mm |
| Depth | 60 mm |
| Length | 60 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate, glass-fiber-reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
