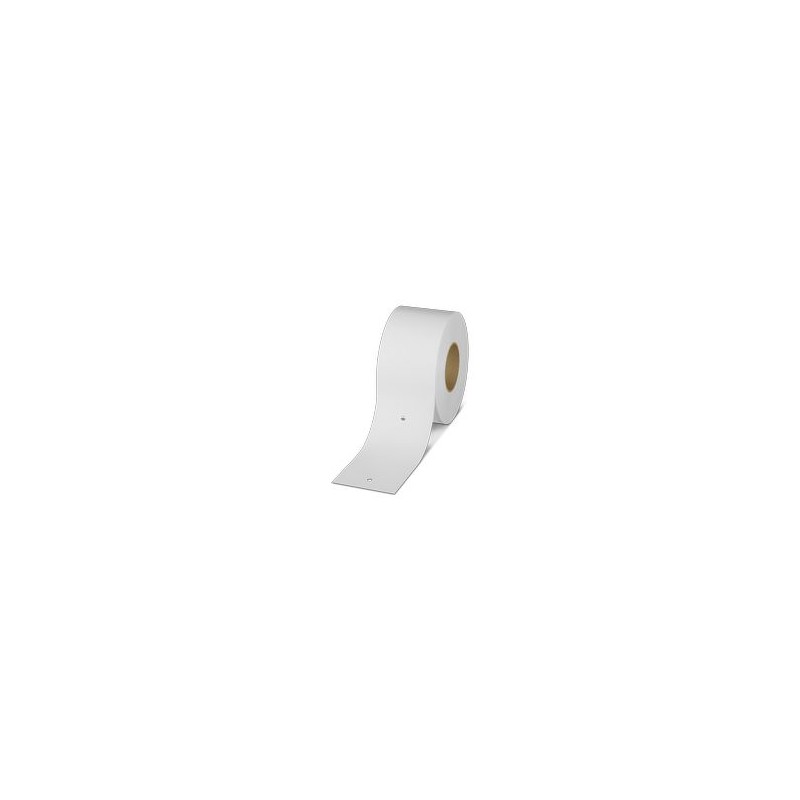

EMT (95X140)R WH-WH 1463688 PHOENIX CONTACT Marking label, white side stripe, Roll, white/white, unlabeled, ..
EMT (95X140)R WH-WH
1463688
PHOENIX_CONTACT
Marking label, white side stripe, Roll, white/white, unlabeled, labelable with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting class: Mounting with cable tie, useful surface: 95 x 140 mm, Number of individual indexes: 1000
Marking label, white side stripe, Roll, unlabelled, labelled with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL 2.0, THERMOMARK ROLL, usable area: 95x140mm, Number of individual indexes: 1000
Auxiliary material > Labelling material
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Unlabeled Appliance Marker |
| Signage | |
| Number of Individual Indexes | 1000 |
| Type of mounting | Mounting with cable ties |
| Colour | White/White |
| Material | Synthetic Paper |
| Testing for substances that are harmful to varnish wetting | |
| Testing for substances harmful to varnish wetting (LABS conformity) | VW PV 3.10.7:2005-02 |
| Result | Approved Test |
| Scratch test to determine scratch resistance | |
| Test Specification | DIN EN ISO 1518-1:2019-10 (in accordance with the law) |
| Demand | ≥ 5 N |
| Result | Approved Test |
| tesafilm tape test | |
| Test Specification | DIN EN ISO 2409:2013 (conforming) |
| Result | Approved Test |
| Resistance to ultraviolet rays | |
| Test Specification | DIN EN ISO 4892-2:2013-06 (conformity) |
| Result | Approved Test |
| Duration of the trial | 96 h |
| Procedure | Artificial radiation with xenon arc lamp |
| Temperature-controlled storage | |
| Test Specification | DIN EN 60068-2-2 (VDE 0468-2-2):2008-05 |
| Result | Approved Test |
| Duration | 96 h |
| Test Temperature | 120 °C |
| Changing Climate Test of Condensed Water with Sulphur Dioxide Atmosphere | |
| Test Specification | DIN 50018:2013-05 |
| Result | Approved Test |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Salt spray test | |
| Test Specification | DIN EN 60068-2-11:2000-02 |
| Result | Approved Test |
| Duration of the trial | 96 h |
| Environmental conditions | |
| Ambient Temperature (Service) | 120 °C |
| Ambient Temperature (Storage/Transport) | 15 °C ... 25 °C |
| Permissible air humidity (storage/transport) | ≤ 70% |
| Recommended Ambient Temperature (Storage/Transport) | 15 °C ... 25 °C |
| Recommended Air Humidity (Storage/Transport) | < 70% |
| Retention period | 1 year |
| Width | 95 mm |
| Longitude | 140 mm |
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Other |
| Halogen free (EF000025) | No |
| Width (EF000008) | 95 mm |
