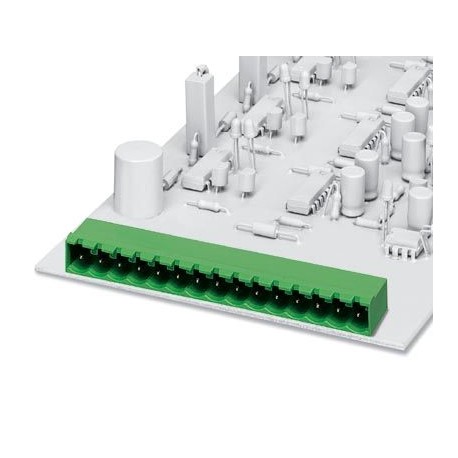

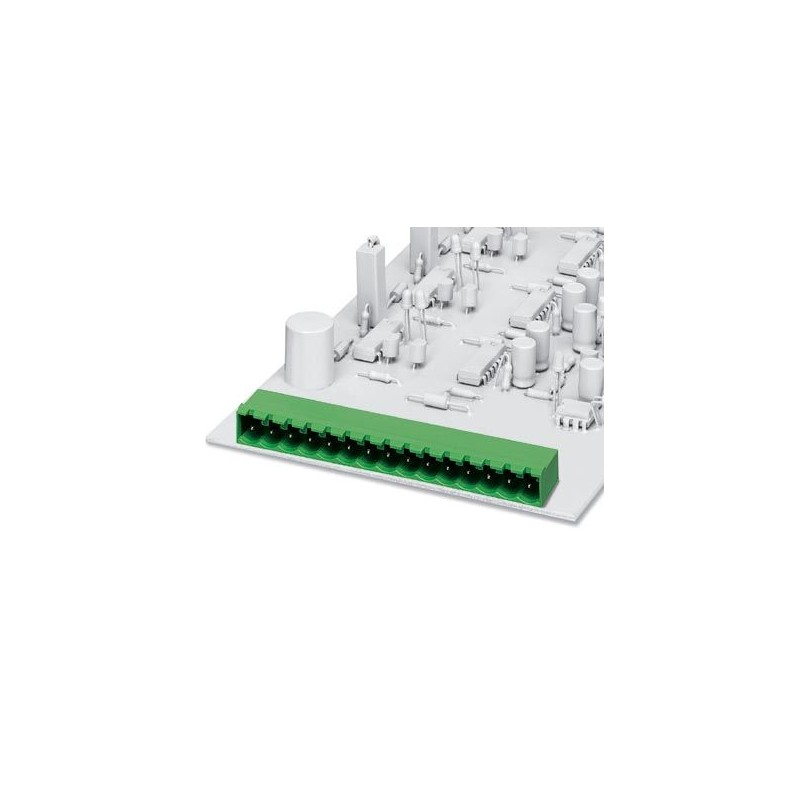

EMSTBA 2,5/18-G 1900002 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

EMSTBA 2,5/18-G 1900002 PHOENIX CONTACT Feed-through header

EMSTBA 2,5/18-G

1900002

PHOENIX_CONTACT

50

Available Ship on today

New orders for this item will be processed from April 13

Feed-through header

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article is obsolete. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey 1900002
Packing unit 50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
Catalog pagePage 164 (CC-2005)
GTIN4017918170301
Weight per Piece (excluding packing)7.710 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Width92 mm
Pitch5 mm
Dimension a85 mm
Width [ w ]92 mm
Height9 mm
Length of the solder pin4.2 mm
Pin dimensions1.7 mm
Length12 mm

General

Range of articlesEMSTBA 2,5/..-G
Insulating material groupIIIa
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPBT
Flammability rating according to UL 94V0
Colorgreen
Number of positions18

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
