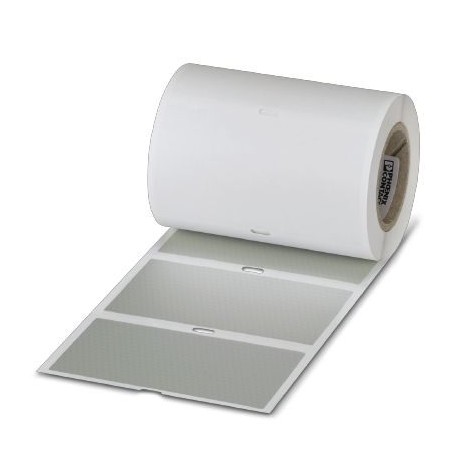

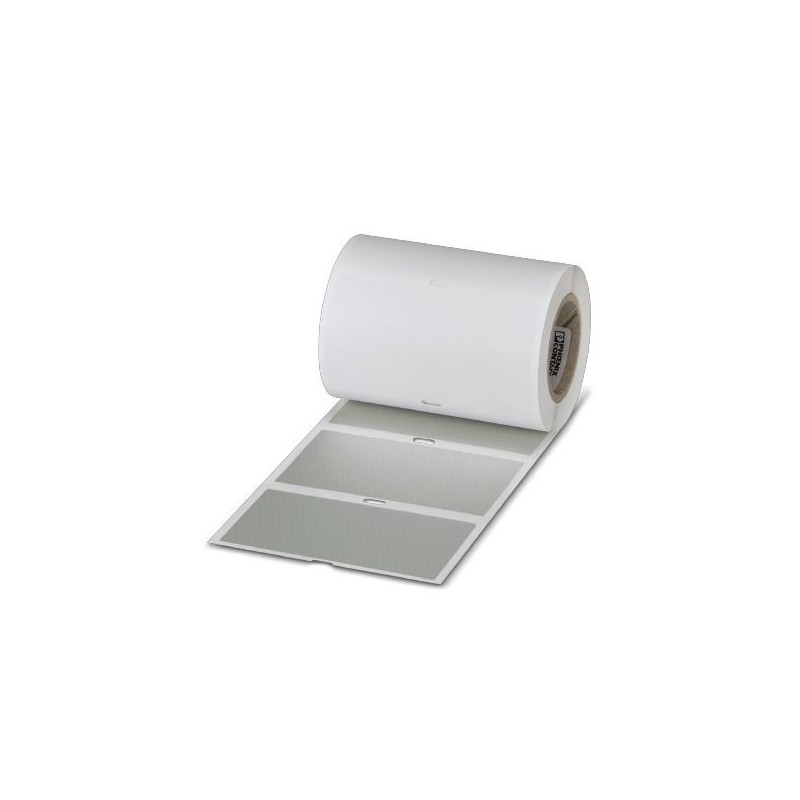

EMLS (100X50)R SR 1128352 PHOENIX CONTACT Safety label with special adhesive, Roll, silver, unlabeled, can b..
EMLS (100X50)R SR
1128352
PHOENIX_CONTACT
Safety label with special adhesive, Roll, silver, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: adhesive, lettering field size: 100 x 50 mm, Number of individual labels: 250
MS Material
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Ambient conditions
| Ambient temperature (operation) | -40 °C ... 150 °C |
|---|---|
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | silver |
|---|---|
| Components | free from silicone and halogen |
| Material | Polyester |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 250 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 1085260 THERMOMARK ROLL 2.0 |
| 0804501 THERMOMARK ROLLMASTER 300 | |
| 0804663 THERMOMARK ROLLMASTER 600 | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Result of weather resistance test | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result of wipe resistance test | Test passed |
| Foil strength | 53 µm |
| Adhesive strength | 20 µm |
| Marking mounting type | adhesive |
| File number | UL-MH48542 / PC-014 |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX MARKING SYSTEMS TOOLS EN.pdf | 41 Mbytes |
|
