EMLP (85,6X54)R 1096325 PHOENIX CONTACT Label, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLLM..
EMLP (85,6X54)R
1096325
PHOENIX_CONTACT

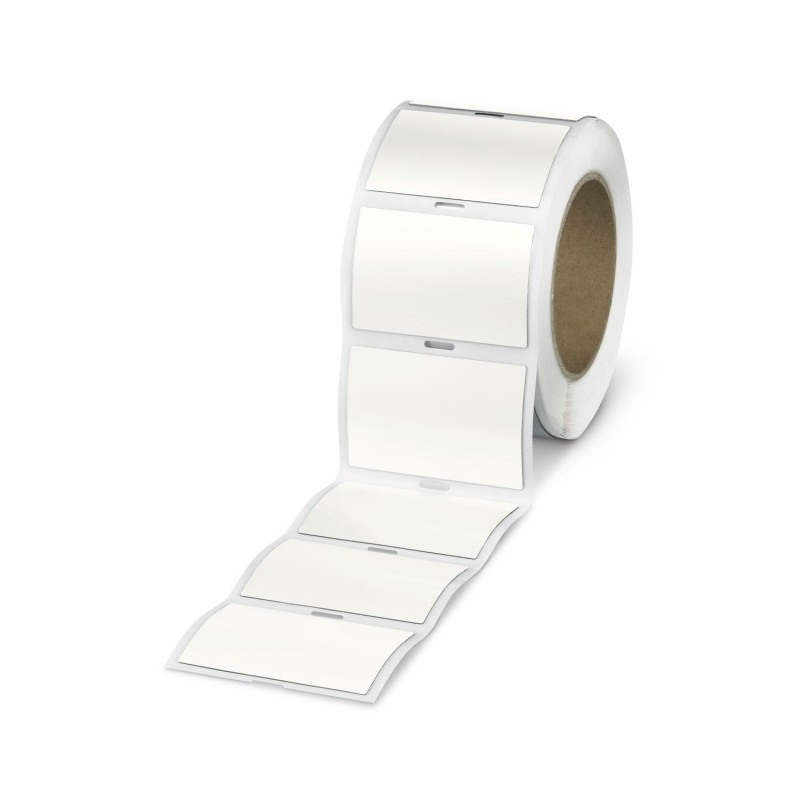

Label, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: adhesive, lettering field size: 85.6 x 54 mm, Number of individual labels: 250
Auxiliary material > Labelling material
MS Material
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Ambient conditions
| Ambient temperature (operation) | -40 °C ... 120 °C |
|---|---|
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | white |
|---|---|
| Components | free from silicone and halogen |
| Material | Polyester |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 250 |
| Number of individual labels per row | 1 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| 0804501 THERMOMARK ROLLMASTER 300 | |
| 0804663 THERMOMARK ROLLMASTER 600 | |
| Ink ribbon | 5145384 THERMOMARK-RIBBON 110 |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Procedure | |
| Test duration | 96 h |
| Result of weather resistance test | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 60068-2-11:2000-02 |
| Result of wipe resistance test | Test passed |
| Foil strength | 50 µm |
| Adhesive strength | 20 µm |
| Marking mounting type | adhesive |
Classifications
eCl@ss
| eCl@ss 4.0 | 24190218 |
|---|---|
| eCl@ss 4.1 | 24190218 |
| eCl@ss 5.0 | 27141137 |
| eCl@ss 5.1 | 27141100 |
| eCl@ss 6.0 | 27149100 |
| eCl@ss 7.0 | 27149129 |
| eCl@ss 9.0 | 27400629 |
UNSPSC
| UNSPSC 6.01 | 30211811 |
|---|---|
| UNSPSC 7.0901 | 39121410 |
| UNSPSC 11 | 39121410 |
| UNSPSC 12.01 | 39121410 |
| UNSPSC 13.2 | 39131504 |
| UNSPSC 18.0 | 39131504 |
| UNSPSC 19.0 | 39131504 |
| UNSPSC 20.0 | 39131504 |
| UNSPSC 21.0 | 39131504 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX MARKING SYSTEMS TOOLS EN.pdf | 41 Mbytes |
|
