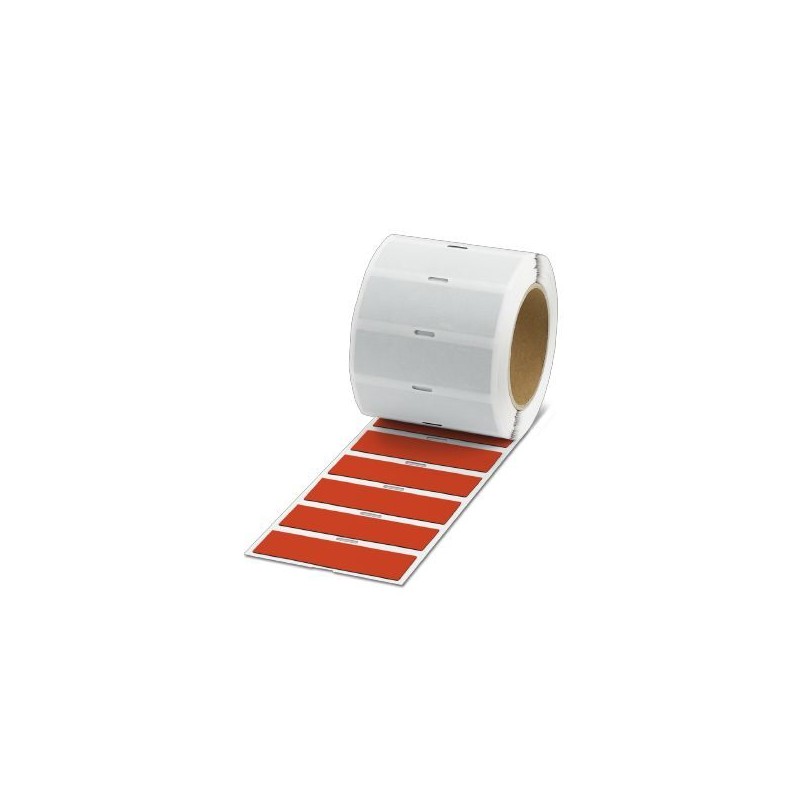

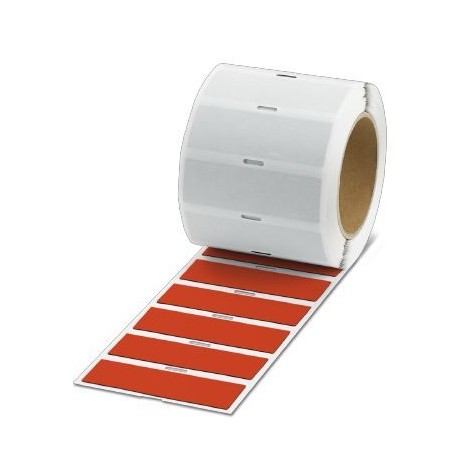

EMLP (100X30)R RD 1096332 PHOENIX CONTACT Label, Roll, can be ordered: by line, red, can be labeled with: TH..
EMLP (100X30)R RD
1096332
PHOENIX_CONTACT
Label, Roll, can be ordered: by line, red, can be labeled with: THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, THERMOMARK ROLL X1, THERMOMARK ROLL 2.0, THERMOMARK ROLL, mounting type: adhesive, lettering field size: 100 x 30 mm, Number of individual labels: 250
Label, Roll, red, unlabeled, labelable with: THERMOMARKE.300 (D)/600 (D), THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting class: glued, useful surface: 100x30mm, Number of individual indexes: 250
Auxiliary material > Labelling material
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Ambient conditions
| Ambient temperature (operation) | -40 °C ... 120 °C |
|---|---|
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | red |
|---|---|
| Components | free from silicone and halogen |
| Material | Polyester |
| RoHS compliant | Yes |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 250 |
| Number of individual labels per row | 1 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| 0804501 THERMOMARK ROLLMASTER 300 | |
| 0804663 THERMOMARK ROLLMASTER 600 | |
| Ink ribbon | 5145384 THERMOMARK-RIBBON 110 |
| 0804661 TM-RIBBON 110 WH 100 | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Procedure | |
| Test duration | 96 h |
| Result of weather resistance test | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 60068-2-11:2000-02 |
| Result of wipe resistance test | Test passed |
| Foil strength | 50 µm |
| Adhesive strength | 20 µm |
| Marking mounting type | adhesive |
Classifications
| Feature Name | Feature Value |
|---|---|
| Colour (EF000007) | Red |
| Transparent (EF006243) | No |
| Halogen free (EF000025) | No |
| Width (EF000008) | 100 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
