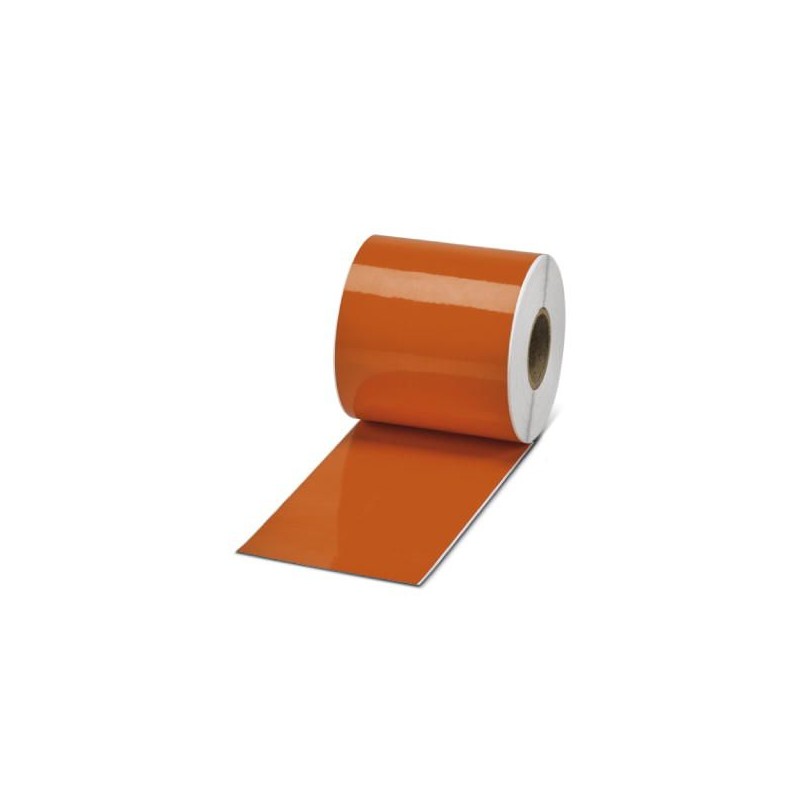

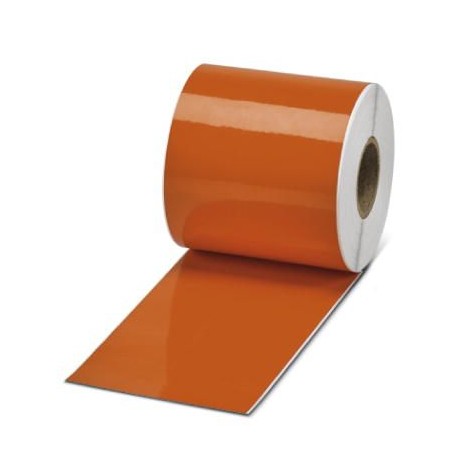

EMLF (108XE)R OG 0804199 PHOENIX CONTACT Label, highly flexible
EMLF (108XE)R OG
0804199
PHOENIX_CONTACT
Label, highly flexible
Auxiliary material > Labelling material
MS Material
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 0804199 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 336 (C-3-2017) |
| GTIN | 4055626234724 |
| Weight per Piece (excluding packing) | 1,223.000 g |
| Custom tariff number | 39199080 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 90 °C |
|---|---|
| Recommended storage conditions | 23 °C/50 % relative humidity. Storage in a dry and dark place in the original packaging is recommended. |
General
| Color | orange |
|---|---|
| Components | Silicone-free |
| Material | PVC |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual labels | 1 |
| Number of individual labels per row | 1 |
| Adhesive | Acrylic |
| Printability | Thermal transfer |
| Device | 5146723 THERMOMARK ROLL X1 |
| 5146231 THERMOMARK X1.2 | |
| 0804501 THERMOMARK ROLLMASTER 300 | |
| 0804663 THERMOMARK ROLLMASTER 600 | |
| Ink ribbon | 5145384 THERMOMARK-RIBBON 110 |
| 0804661 TM-RIBBON 110 WH 100 | |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Procedure | |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Procedure | A |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Foil strength | 50 µm |
| Marking mounting type | adhesive |
Classifications
eCl@ss 10.0.1 27400629 eCl@ss 4.0 24190219 eCl@ss 4.1 24190219 eCl@ss 5.0 27149103 eCl@ss 5.1 27141100 eCl@ss 6.0 27149100 eCl@ss 7.0 27149129 eCl@ss 8.0 27149129 eCl@ss 9.0 27400629
UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39131504
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX MARKING SYSTEMS TOOLS EN.pdf | 41 Mbytes |
|
