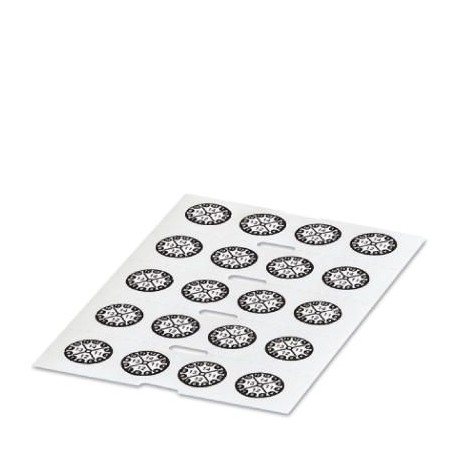

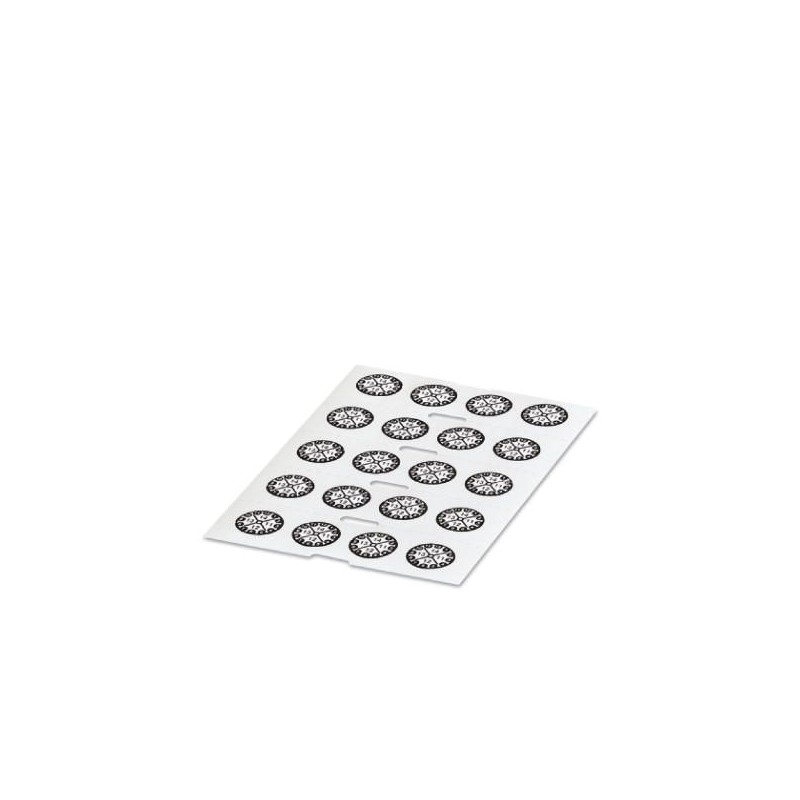

EML-HT (D12)R /IL 0801383 PHOENIX CONTACT Label high temperature, for printer thermal transfer, round, 12 mm..
EML-HT (D12)R /IL
0801383
PHOENIX_CONTACT
100
Label high temperature, for printer thermal transfer, round, 12 mm dia., resistant for 60 s at up to 300 °C, at y. individual or. month and year
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | 0801383 |
|---|---|
| Packing unit | 100 pcs |
| Key selling | BG2411 - |
| Minimum order quantity | 100 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million six hundred forty four thousand eight hundred eight |
| Unit weight (excluding packaging) | 0,064 g |
| Tariff number tariff | Forty nine million one hundred nineteen thousand nine hundred |
| Country of origin | (Germany) |
Environmental conditions
| Room temperature (service) | -40 °C ... 180 °C |
|---|---|
| Ambient temperature (assembly) | > 4 °C |
| Recommended conditions of storage | 23 °C / 50 % relative humidity. It is recommended to keep in a plastic bag until use. |
| Temperature of short duration | 300 °C (maximum 1 minute) |
Overview
| Color | white |
|---|---|
| Substances contained | contains no silicones or halogens |
| Material | Acrylate |
| RoHS compliant | Yes |
| Resistance to the cleaned | DIN EN 61010-1 (VDE 0411-1) |
| Number of individual indexes | Four |
| Number of individual labels per line | Four |
| Adhesive | Acrylate |
| Rotulabilidad | Thermal transfer |
| Device | 5146477 THERMOMARK ROLL |
| 5146723 THERMOMARK ROLL X1 | |
| 5146231 THERMOMARK X1.2 | |
| Inked ribbon | 0800342 THERMOMARK-RIBBON 110-EML-HT |
| Test of harmful substances for wetting varnish | VW PV 3.10.7:2005-02 |
| Result | Test approved |
| Resistance to adverse weather conditions specification of the test | IN accordance with DIN en ISO 4892-2:2013-06 |
| Duration of test (hours) | 96 h |
| Result test of resistance to cleaning | Test approved |
| Salt fog specification test | DIN EN 60068-2-11:2000-02 |
| Duration of the test | 96 h |
| The result of the test of fog output | Test approved |
| Water condensing-environmental conditions variables with OS 2 test specifications | in accordance with DIN 50018:2013-05 |
| Level climate | AHT 1,0 S |
| Cycles | Two |
| Result test water of condensation | Test approved |
| Resistance to the cleaning of the labels of specification test | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test approved |
| Thickness of sheet | 50 µm |
| Thickness of glue | 20 µm |
| Mounting type, marking | stuck |
Ratings
eCl@ss 10.0.1Twenty seven million four hundred thousand six hundred twenty nineeCl@ss 4.0Twenty four million one hundred ninety thousand two hundred nineteeneCl@ss 4.1Twenty four million one hundred ninety thousand two hundred nineteeneCl@ss 5.0Twenty seven million one hundred forty nine thousand one hundred threeeCl@ss 5.1Twenty seven million one hundred forty one thousand one hundredeCl@ss 6.0Twenty seven million one hundred forty nine thousand one hundredeCl@ss 7.0Twenty seven million one hundred forty nine thousand one hundred twenty nineeCl@ss 8.0Twenty seven million one hundred forty nine thousand one hundred twenty nineeCl@ss 9.0Twenty seven million four hundred thousand six hundred twenty nine
UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred elevenUNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred tenUNSPSC 11Thirty nine million one hundred twenty one thousand four hundred tenUNSPSC 12.01Thirty nine million one hundred twenty one thousand four hundred tenUNSPSC 13.2Thirty nine million one hundred thirty one thousand five hundred four
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
