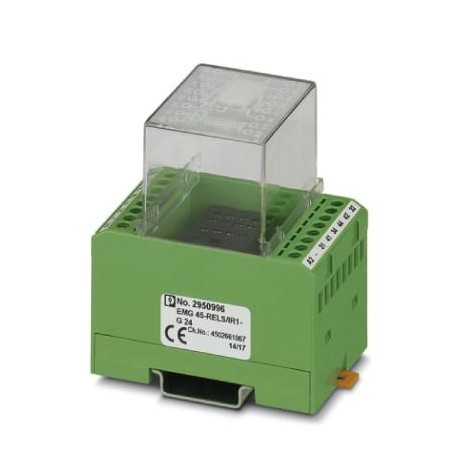

EMG 45-RELS/IR1-G 24 2950996 PHOENIX CONTACT Relay base
EMG 45-RELS/IR1-G 24
2950996
PHOENIX_CONTACT
5
Relay base
Relay module, with 1 plug-in socket for size 1 industrial relays, contact: 4 switched contacts, input voltage 24-48 V DC, with light indication, freewheel diode and another against polarity reversal
Relays > Relay socket
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2950996 |
|---|---|
| Packing unit | 5 pc |
| Catalog page | Page 104 (IF-2002) |
| GTIN | 4017918084165 |
| Weight per Piece (excluding packing) | 99.440 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Note | For the protection of relay coils and contacts, inductive loads must be dampened with an efficient protection circuit. |
|---|---|
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Net weight (SAP) | 99.44 g |
Connection data input side
| Connection name | Input side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data output side
| Connection name | Output side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371603eCl@ss 8.027371603eCl@ss 9.027371603
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Other |
| Mounting method (EF000003) | Other |
| With detachable clamps (EF003340) | No |
| Function extension possible (EF003444) | No |
| Width (EF000008) | 45 mm |
| Height (EF000040) | 75 mm |
| Depth (EF000049) | 82.5 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN .pdf | 28 Mbytes |
|
