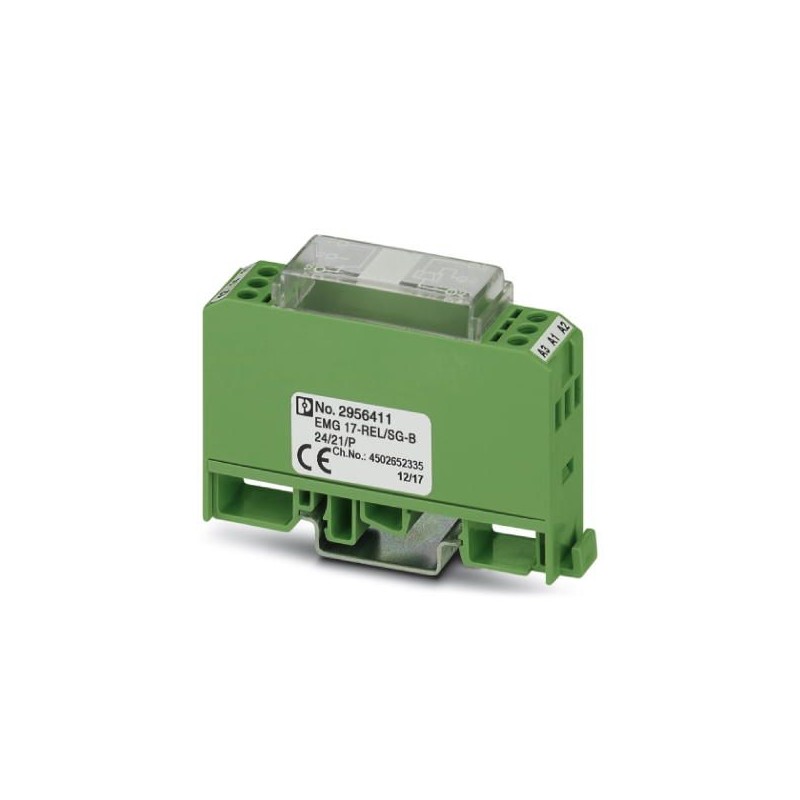

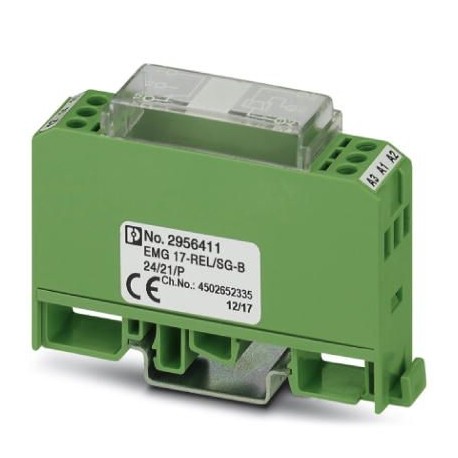

EMG 17-REL/SG-B 24/21/P 2956411 PHOENIX CONTACT Relay Module
EMG 17-REL/SG-B 24/21/P
2956411
PHOENIX_CONTACT
10
Relay Module
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2956411 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 145 (IF-2009) |
| GTIN | 4017918085773 |
| Weight per Piece (excluding packing) | 46.840 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | typ. 8 mA |
| Typical response time | 5 ms |
| Typical release time | 5 ms |
| Coil voltage | 24 V DC |
| Protective circuit | Free-wheeling diode Damping diode |
| Reverse polarity protection Polarity protection diode | |
| Pulse time range | 30 ms ... 5 s |
| Power dissipation for nominal condition | 0.19 W |
Contact side
| Contact type | Single contact, 1-PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 5 V (at 100 mA) |
| 24 V (At 1 mA) | |
| Min. switching current | 1 mA (at 24 V) |
| 100 mA (At 5 V) | |
| Maximum inrush current | 8 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| 43 W (at 48 V DC) | |
| 42 W (at 60 V DC) | |
| 55 W (at 110 V DC) | |
| 100 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) |
Contact side (with destroyed gold layer)
| Maximum switching voltage | 250 V AC/DC |
|---|---|
| Limiting continuous current | 5 A |
| Maximum inrush current | 6 A |
| Interrupting rating (ohmic load) max. | 120 W (at 24 V DC) |
| 40 W (at 48 V DC) | |
| 35 W (at 60 V DC) | |
| 30 W (at 110 V DC) | |
| 55 W (at 220 V DC) | |
| 1250 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 4 kVrms(50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Net weight (SAP) | 46.84 g |
Connection data input side
| Connection name | Coil side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data output side
| Connection name | Contact side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Insulation | Safe isolation, reinforced insulation |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
