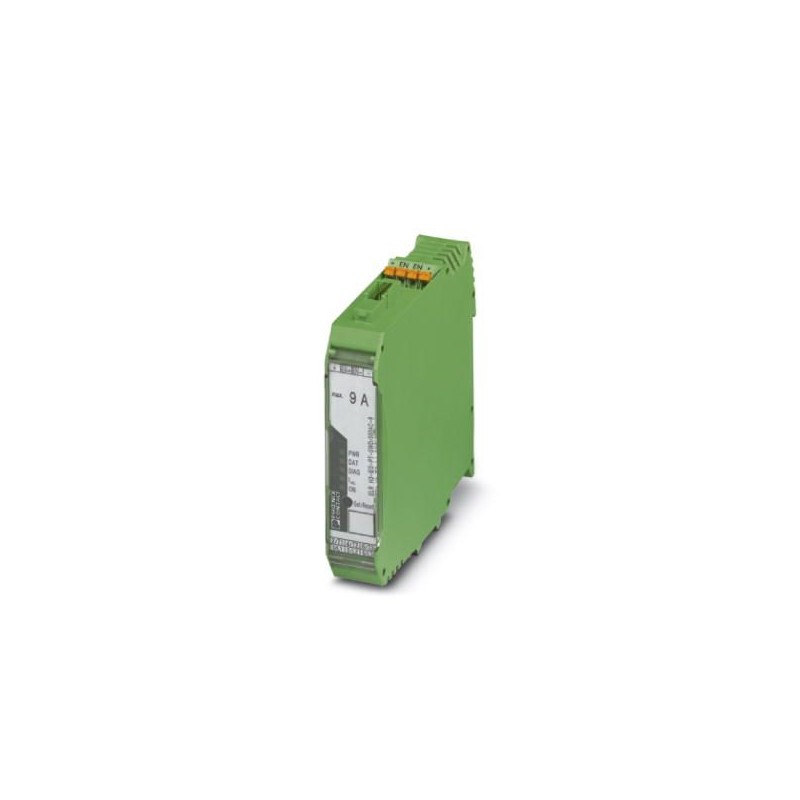

ELR H3-IES-PT-SWD/500AC-9 2903938 PHOENIX CONTACT Driver hybrid boot interconnectable networks to start moto..
ELR H3-IES-PT-SWD/500AC-9
2903938
PHOENIX_CONTACT
Driver hybrid boot interconnectable networks to start motor 3~ AC up to 500 V AC and output current of 9 A, with overload cut-off adjustable, emergency stop function up to SIL 3/PL e and connection push-in. Connection system SmartWire-DT.
INTERFACE Components (IF)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Data commercial
| Key order | Two million nine hundred three thousand nine hundred thirty eight |
|---|---|
| Packing unit | 1 pcs |
| Key selling | CK7433 - |
| EAN | Four trillion forty six billion three hundred fifty six million seven hundred seventy one thousand nine hundred seventeen |
| Unit weight (excluding packaging) | 217,700 g |
| Tariff number tariff | Eighty five million three hundred seventy one thousand ninety eight |
| Country of origin | (Germany) |
Power to the computer
| Supply voltage rated control circuit OrS | 24 V DC |
|---|---|
| Margin of supply voltage control system | 19,2 V DC ... 30 V DC |
| Current of control power design IS | 60 mA |
| Designation of the protection | Prot. surge |
| Prot. against polarity reversal |
Data entry
| Name Entry | Input Enable |
|---|---|
| Voltage-operated sizing OrC | 24 V DC |
| Range of voltage-operated | 19,2 V DC ... 30 V DC |
| Current drive dimensioning IC | 7 mA |
| Switching threshold | 9.6 V (Signal "0") |
| To 19.2 V (Signal "1") | |
| Level switching | < 5 V DC (for emergency stop) |
| Switch-off time typical | < 30 ms |
Output data of the output load
| Name Output | AC output |
|---|---|
| Rated voltage of operation Orand | 500 V AC |
| Voltage margin of service | 42 V AC ... 550 V AC |
| Current service design Iand | 9 A (AC-51) |
| 7 A (AC-53a) | |
| Network frequency | 50/60 Hz |
| Range of load current | 1,5 ... 9 A (see derating) |
| Line activation feature according to IEC 60947-4-2 | Class 10A |
| Cooling time | 20 min. (To reset automatic) |
| Leakage current | 0 mA |
| Designation of the protection | Prot. surge |
Overview
| Switching frequency | ≤ 2 Hz (depending On load) |
|---|---|
| Position to the mounting | Vertical (horizontal profile, output of the motor down) |
| Mounting type | Mounting on a rail |
| Installation instructions | Alineable (see the derating for the separation) |
| Operating mode | Working time 100 % |
| Dissipation maximum | 7 W |
| Power dissipated minimum | 0,88 W |
| Indication of the operating voltage | Green LED |
| Status indication | Yellow LED |
| Indication of errors | Red LED |
Data connection on the input side
| Name Connection | Control circuit |
|---|---|
| Type of connection | Connection push-in |
| Length desaislar | 10 mm |
| Section of conductor rigid | 0,2 mm2 ... 2.5 mm2 |
| Section of flexible conductor | 0,2 mm2 ... 2.5 mm2 |
| Section of conductor AWG | 24 ... 14 |
Connection data output side,
| Name Connection | Charging circuit |
|---|---|
| Type of connection | Connection push-in |
| Length desaislar | 10 mm |
| Section of conductor rigid | 0,2 mm2 ... 2.5 mm2 |
| Section of flexible conductor | 0,2 mm2 ... 2.5 mm2 |
| Section of conductor AWG | 24 ... 14 |
Environmental conditions
| Room temperature (service) | -5 °C ... 55 °C (observe derating) |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
| Index of protection | IP20 |
Data UL
| SCCR | 100 kA (480 V AC (fuse 30 A class CC / 30 class J (High-Fault))) |
|---|---|
| 5 kA (480 V AC (fuse 20 TO RK5 (Standard-Fault))) | |
| FLA | 7,6 A (480 V AC) |
| Group installation | 20 (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded) |
| 30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max., solid and stranded) | |
| Category code | NLDX / NRNT |
| Horsepower ratings | 2 hp (120 V AC / 208 V AC) |
| 5 hp (277 V AC / 480 V AC) |
Insulation properties
| Isolation voltage design | 550 V |
|---|---|
| Transient voltage design | 6 kV |
| Category surge | III |
| Pollution degree | Two |
| Name | Properties of isolation between the input voltage control, the voltage of control supply and the auxiliary circuit to the main circuit |
| Isolation | Safe separation (IEC 60947-1) |
| Name | Properties of isolation between the input voltage and control the voltage of control power to the auxiliary circuit |
| Isolation | Safe separation (IEC 60947-1) auxiliary circuit ≤ 300 V AC |
| Safe separation (en 50178) with auxiliary circuit ≤ 300 V AC |
Standards and specifications
| Name | Standards / specifications |
|---|---|
| Standards/specifications | IEC 60947-1 |
| IN 60947-4-2 | |
| IEC 61508 | |
| ISO 13849 | |
| ATEX | II (2) G [Ex e] [Ex d] [Ex px] |
| II (2) D [Ex t] [Ex p] |
Approvals / Conformities
| Safety Integrity Level according to IEC 61508 | ≤ 3 (safe shutdown) |
|---|---|
| 2 (motor Protection) | |
| Category in accordance with ISO 13849 | ≤ 3 (safe shutdown) |
| Performance level according to ISO 13849 | e (safe shutdown) |
| ATEX | II (2) G [Ex e] [Ex d] [Ex px] |
| II (2) D [Ex t] [Ex p] | |
| Certificate of EC type-examination | PTB 15 ATEX 3001 |
| UL certificate | NLDX.E228652 |
| NRNT.E172140 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 5.0Twenty seven million twenty four thousand twoeCl@ss 5.1Twenty seven million twenty four thousandeCl@ss 6.0Twenty seven million twenty four thousandeCl@ss 7.0Twenty seven million twenty four thousand twoeCl@ss 8.0Twenty seven million twenty four thousand twoeCl@ss 9.0Twenty seven million three hundred seventy thousand nine hundred five
UNSPSC 6.01Thirty million two hundred eleven thousand nine hundred fifteenUNSPSC 7.0901Thirty nine million one hundred twenty one thousand five hundred fourteenUNSPSC 11Thirty nine million one hundred twenty one thousand five hundred fourteenUNSPSC 12.01Thirty nine million one hundred twenty one thousand five hundred fourteenUNSPSC 13.2Twenty five million one hundred seventy three thousand nine hundred two
