EH 35 F-B/ABS-PC BK9005
1074875
PHOENIX_CONTACT
1

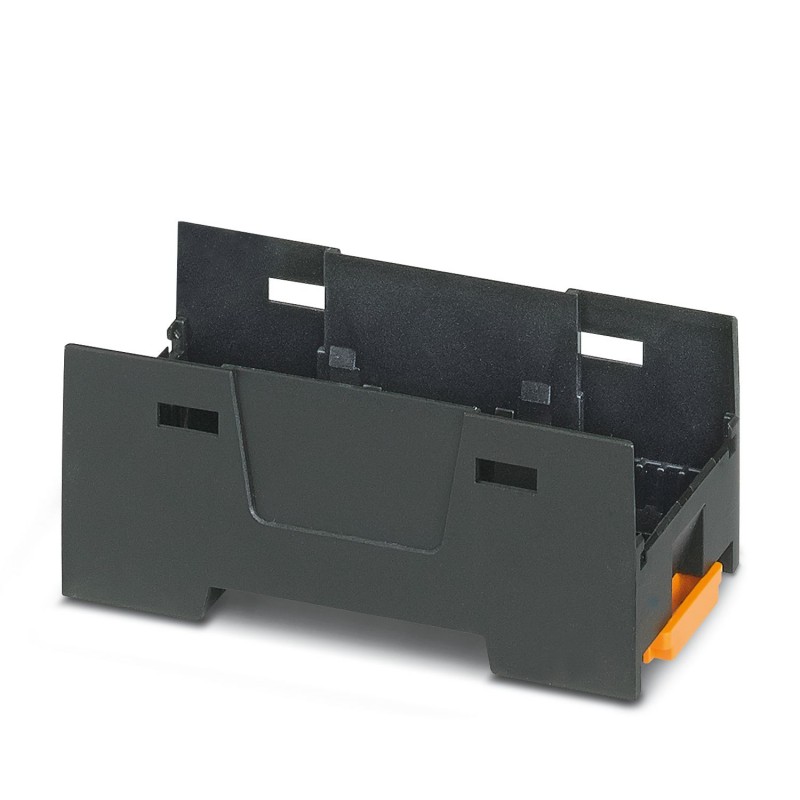

DIN rail housing, Lower housing part with base latch, flat design, width: 35.1 mm, height: 75 mm, depth: 30.3 mm, color: black (9005)
Cabinet enclosures > Electronic enclosure
Housing (HS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Brief article description | Mounting base housing |
---|---|
Type | EH 35 F-B/ABS-PC BK9005 |
Order No. | 1074875 |
Housing type | DIN rail housing |
Housing series | EH |
Type | Lower housing part with base latch, flat design |
Max. IP code to attain | IP20 |
Mounting type | DIN rail mounting/wall mounting (with optional base latch) |
Ventilation openings present | no |
Dimensional drawing | |
---|---|
Width [ w ] | 35.1 mm |
Height [ h ] | 75 mm |
Depth [ d ] | 30.3 mm |
Depth from top edge of DIN rail to support point on upper part [ d ] | 26 mm |
Color (RAL) | black (9005) |
---|---|
Flammability rating according to UL 94 | V0 |
Housing material | ABS-PC |
Ambient temperature (storage/transport) | -40 °C ... 55 °C |
---|---|
Ambient temperature (assembly) | -5 °C ... 80 °C |
Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
PCB thickness | 1.4 mm ... 1.8 mm |
---|---|
Mounting position | Vertical (horizontal DIN rail) |
Type of PCB mount | Latching |
Specification | IEC 60998-1:2002-12 |
---|---|
Height of fall | 50 cm |
Number of drop cycles | 10 |
Specification | IEC 60068-2-6:2007-12 |
---|---|
Frequency | 10 - 150 - 10 Hz |
Sweep speed | 1 octave/min |
Amplitude | 0.15 mm (10 - 58.1 Hz) |
Acceleration | 2g (58.1 - 150 Hz) |
Test duration per axis | 2.5 h |
Test directions | X-, Y- and Z-axis |
Specification | IEC 60068-2-27:2008-02 |
---|---|
Pulse shape | Half-sine |
Acceleration | 15g |
Shock duration | 11 ms |
Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) |
Specification | IEC 60695-10-2:2014-02 |
---|---|
Temperature | 80 °C |
Test duration | 1 h |
Force | 20 N |
Specification | IEC 60695-2-11:2014-02 |
---|---|
Temperature | 850 °C |
Time of exposure | 30 s |
Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
---|---|
Result, degree of protection, IP code | IP20 |
Type of note | Assembly instruction: |
---|---|
Note | Refer to the data sheet for the range in the download area. |
eCl@ss 5.0 | 27180506 |
---|---|
eCl@ss 5.1 | 27180500 |
eCl@ss 6.0 | 27180800 |
eCl@ss 7.0 | 27182702 |
eCl@ss 8.0 | 27182702 |
eCl@ss 9.0 | 27182702 |
UNSPSC 13.2 | 31261501 |
---|---|
UNSPSC 18.0 | 31261501 |
UNSPSC 19.0 | 31261501 |
UNSPSC 20.0 | 31261501 |
UNSPSC 21.0 | 31261501 |
