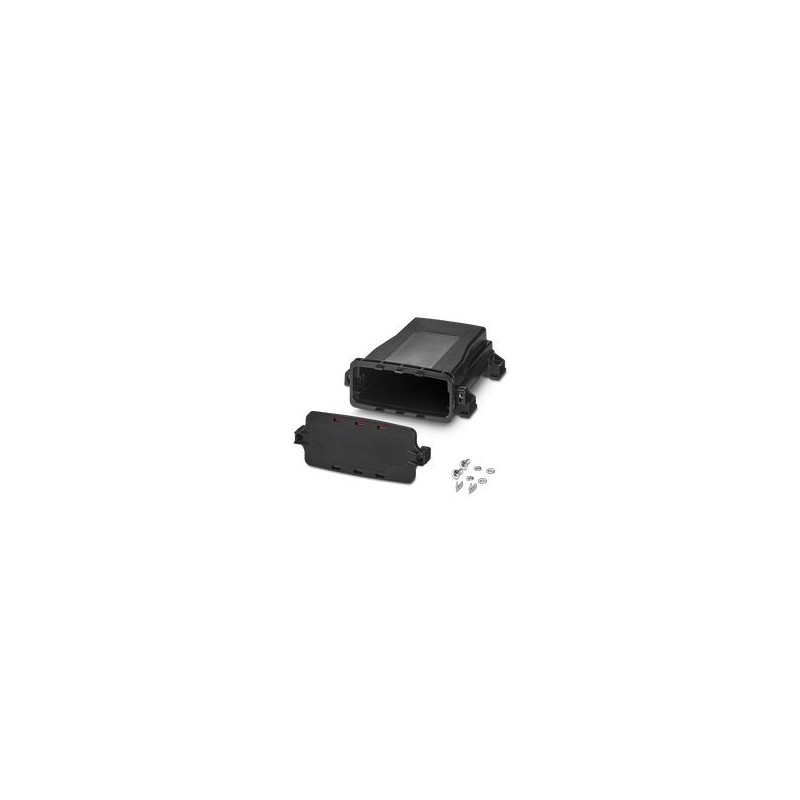

ECS-SKT-122X169-S-UV-9005 1457013 PHOENIX CONTACT Empty box for wall or pole mounting, black 9005, modular e..
ECS-SKT-122X169-S-UV-9005
1457013
PHOENIX_CONTACT
Empty box for wall or pole mounting, black 9005, modular electronics enclosure with faceplate, for outdoor applications, degree of protection: IP66/67/69, width 164 mm, height 180 mm, depth 64 mm, printed circuit board surface 13 160 mm²
Empty enclosure for wall or mast mounting, black (9005), modular electronics housing with front plate, for outdoor applications, degree of protection: IP66/IP67/IP69, width: 164 mm, height: 180 mm, depth: 64 mm, PCB surface: 13160 mm2
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| General | Please observe the assembly instructions available in the download area. |
| Product type | Stackable housing set |
| Type | Screw locking mechanism |
| Housing type | outdoor housings |
| Housing series | ECS |
| Ventilation | integrated pressure compensation membrane |
| Dimensional drawing |  |
| Width | 163.8 mm |
| Height | 179.8 mm |
| Depth | 62.1 mm |
| PCB design | |
| PCB thickness | 1.57 mm ... 2.36 mm |
| Color | black (9005) |
| Flammability rating according to UL 94 | V0 |
| Impact strength | IK08 |
| Housing material | PC (polycarbonate) |
| Power dissipation single housing for 20 °C | |
| Ambient temperature | 20 °C |
| Reduction factor | 1 |
| Mounting position | vertical |
| Power dissipation | 19 W |
| Ambient conditions | |
| Max. NEMA code to attain | 6 |
| Impact strength | IK08 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Number of PCB holders | 1 |
| Type of PCB mount | Bolt mounting |
| Thickness of the PCB | 1.57 mm ... 2.36 mm |
| Mounting type | Wall or panel mount. Pole mount with accessory. |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
