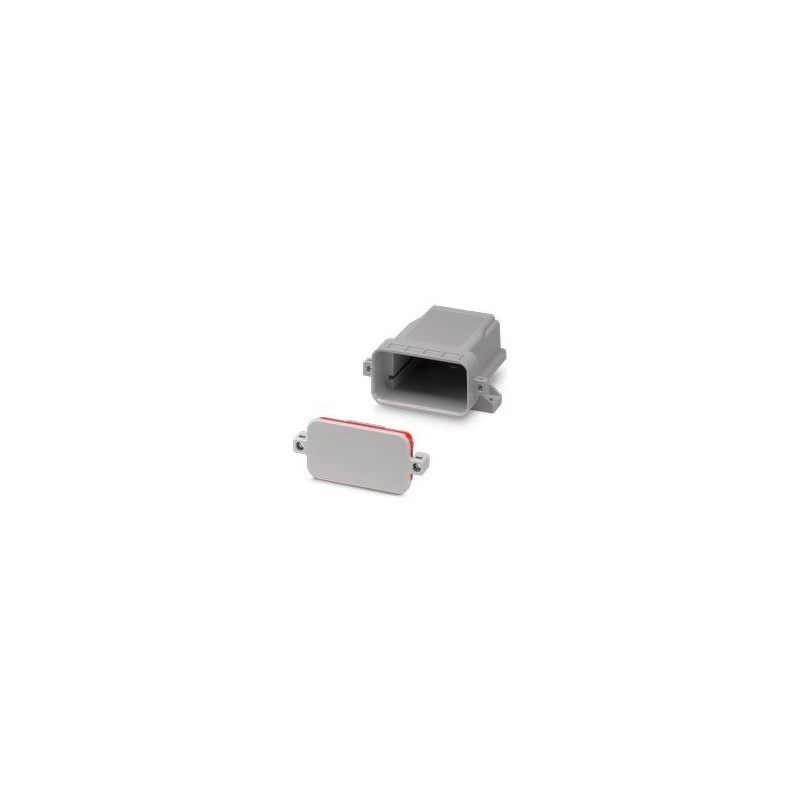

ECS-KIT-64X80-S-UV-7042 1319373 PHOENIX CONTACT Empty box for wall or pole mounting, grey 7042, modular elec..
ECS-KIT-64X80-S-UV-7042
1319373
PHOENIX_CONTACT
Empty box for wall or pole mounting, grey 7042, modular electronics enclosure with faceplate, for outdoor applications, degree of protection: IP66/67/69, width 97 mm, height 87 mm, depth 42 mm, printed circuit board surface 4100 mm²
Empty enclosure for wall or mast mounting, gray (7042), modular electronics housing with front plate, for outdoor applications, degree of protection: IP66/IP67/IP69, width: 97 mm, height: 87 mm, depth: 42 mm, PCB surface: 4100 mm2
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Please observe the assembly instructions available in the download area. |
| Product type | Stackable housing set |
| Type | Screw locking mechanism |
| Housing type | outdoor housings |
| Housing series | ECS |
| Dimensional drawing |  |
| Width | 97.8 mm |
| Height | 89.4 mm |
| Depth | 45.1 mm |
| Color | gray (7042) |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC (polycarbonate) |
| Ambient conditions | |
| Max. NEMA code to attain | 6 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Type of PCB mount | Bolt mounting |
| Total PCB surface | 4100 mm² |
| Mounting type | Wall or panel mount. Pole mount with accessory. |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Grey |
Datasheet - PDF
