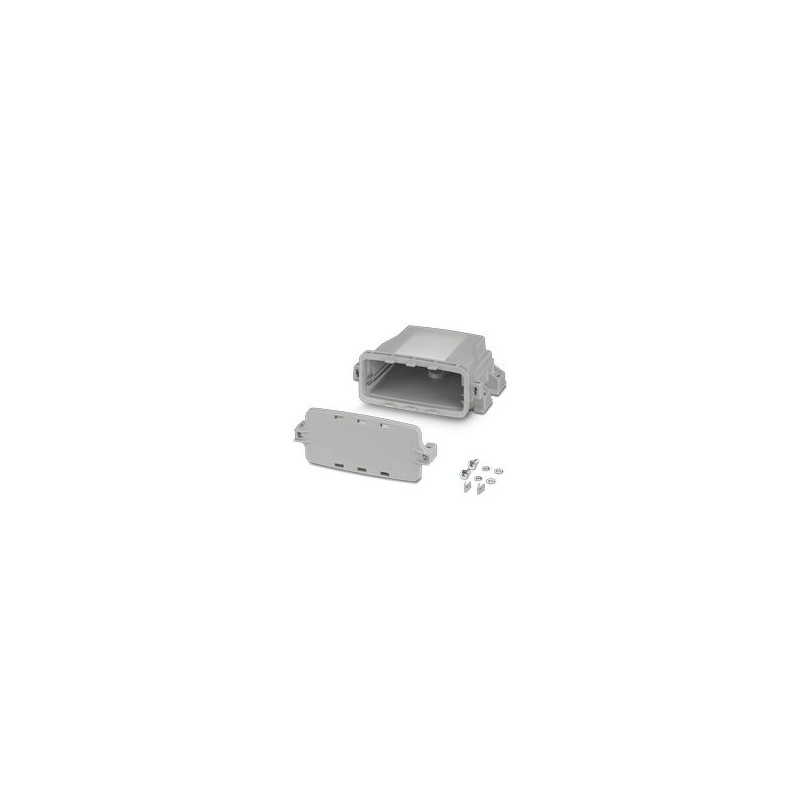

ECS-KIT-122X109-S-UV-7042 1311021 PHOENIX CONTACT Empty box for wall or pole mounting, grey 7042, modular el..
ECS-KIT-122X109-S-UV-7042
1311021
PHOENIX_CONTACT
Empty box for wall or pole mounting, grey 7042, modular electronics enclosure with faceplate, for outdoor applications, degree of protection: IP66/67/69, width 164 mm, height 120 mm, depth 64 mm, printed circuit board surface 7330 mm²
Cabinet enclosures > Electronic enclosure
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | Please note the assembly instructions in the download area. |
| Product Type | Shell Set |
| Execution | Screw lock |
| Type of housing | Outdoor Housing |
| Housing Series | ECS |
| Ventilation | Integrated pressure compensation diaphragm |
| Dimension Scheme |  |
| Width | 163.8 mm |
| Height | 119.9 mm |
| Depth | 62.1 mm |
| Printed circuit board design | |
| Printed Circuit Board Thickness | 1.57 mm ... 2.36 mm |
| Colour | Grey (7042) |
| Flammability class according to UL 94 | V0 |
| Shock resistance | IK08 |
| Shell material | PC (Polycarbonate) |
| Power dissipated single housing with 20 °C | |
| Ambient Temperature | 20 °C |
| Reduction Fact | 1 |
| Position for mounting | vertical |
| Dissipated Power | 19 W |
| Environmental conditions | |
| Maximum achievable NEMA code | 6 |
| Shock resistance | IK08 |
| Ambient Temperature (Service) | -40 °C ... 100 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 100 °C |
| Number of PCB Housings | 1 |
| Printed Circuit Board Attachment Type | Screw connection |
| Printed Circuit Board Thickness | 1.57 mm ... 2.36 mm |
| Type of mounting | Wall or front panel mounting. Bar mounting with accessories. |
| Type of packaging | Boxed Packaging |
| Outer packing type | Cardboard |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Other |
| Colour (EF000007) | Grey |
