E PX A 405X400X201
0899323
PHOENIX_CONTACT
1

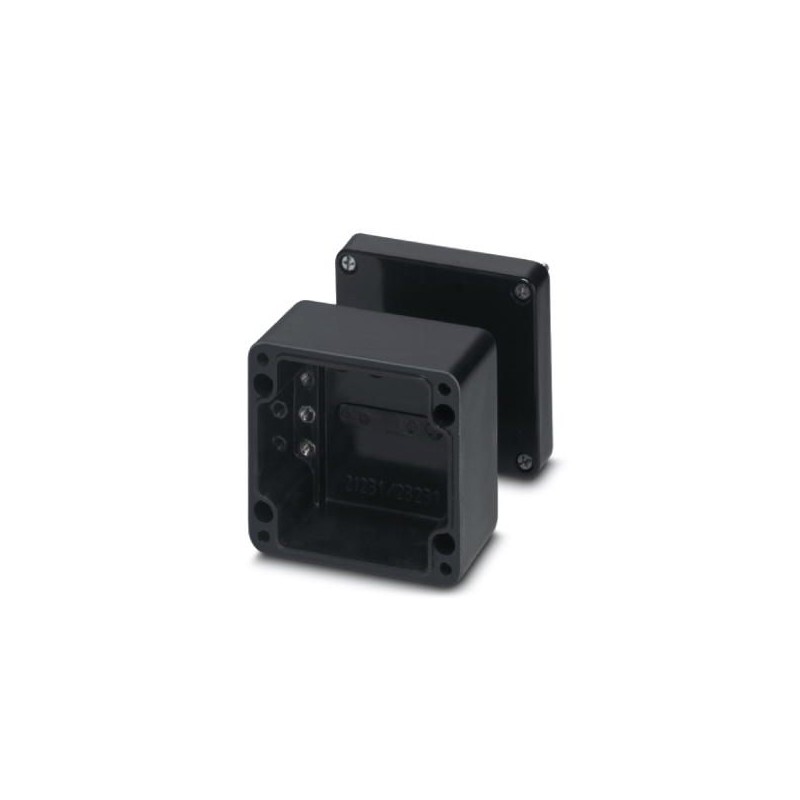

Junction box
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
Enclosures connectivity
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 0899323 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 536 (C-3-2017) |
GTIN | 4055626275925 |
Weight per Piece (excluding packing) | 99.990 g |
Custom tariff number | 85389099 |
Country of origin | IN (India) |
Type | Ex empty enclosure with cover |
---|---|
Note | Prepared for direct installation of a DIN rail |
Color | black |
Flammability rating according to UL 94 | V0 |
Direct DIN rail mounting | yes |
Useable DIN rail type | NS 35 |
Width | 405 mm |
---|---|
Height | 400 mm |
Depth | 201 mm |
Clearance width, maximum DIN rail length | 381 mm |
Assembly length, max. | 362 mm |
Housing material | Glass-fiber-reinforced polyester with added graphite |
---|---|
Cover fastening | Screw-on cover |
Note | Plus/minus screw |
Fixing device | External fixing clips available as an option |
Integrated blind hole | |
Seal material | Silicon |
Components | halogen-free |
Degree of protection of housing (IP) | IP66 |
---|---|
Protection class | II |
Degree of protection (IK) | 7.00 J EN 60079-0 |
Temperature in operating conditions | -55 °C ... 127 °C |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
