DS-ST 4/2,5 3032156 PHOENIX CONTACT Cover segment
DS-ST 4/2,5
3032156
PHOENIX_CONTACT
10
Cover segment

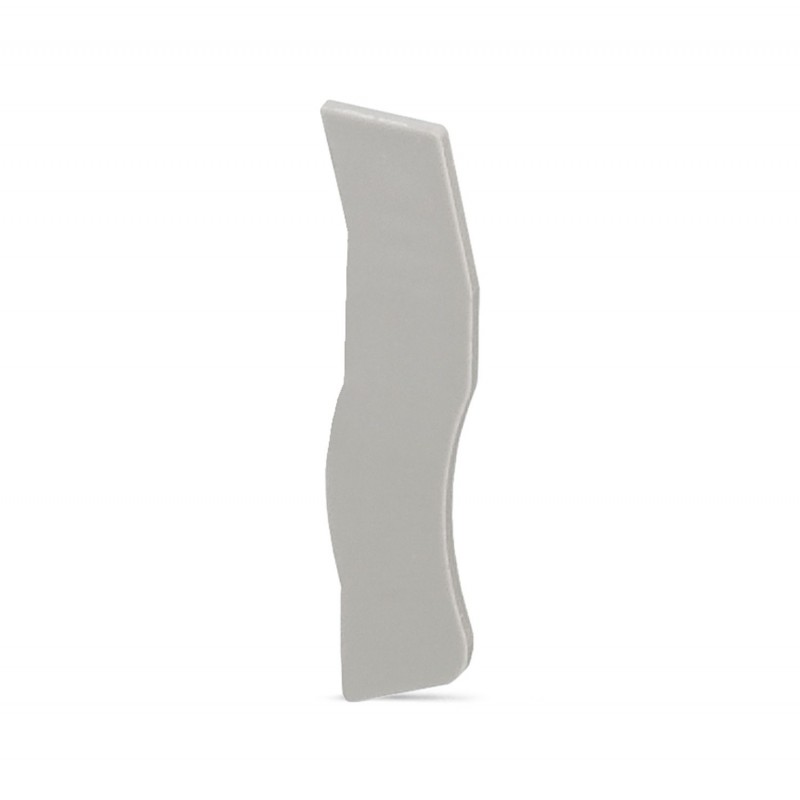

End cap for segment, length: 72 mm, height: 36.5 mm, color: gray
Cover segment, depth: 36.5 mm, height: 72 mm, color: gray
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | End cover |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Color | gray (RAL 7042) |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
| Height | 72 mm |
| Depth | 36.5 mm |
| Min. material thickness | 1 mm |
| General | A cover segment should be used if terminal blocks with a higher number of terminal points cannot be covered by the contour of another terminal block. |
| Feature Name | Feature Value |
|---|---|
| End plate model (EF006586) | Yes |
| Partition model (EF006587) | No |
| Colour (EF000007) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX TERMINAL BLOCKS EN.pdf | 69 Mbytes |
|
