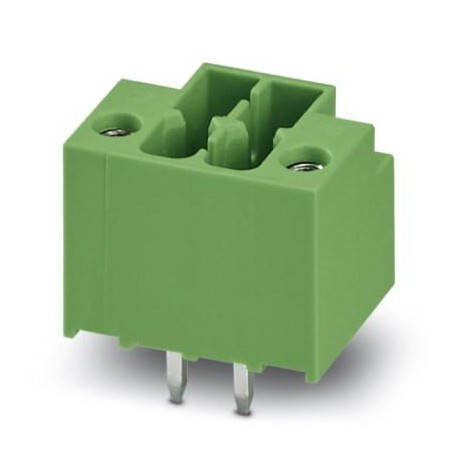

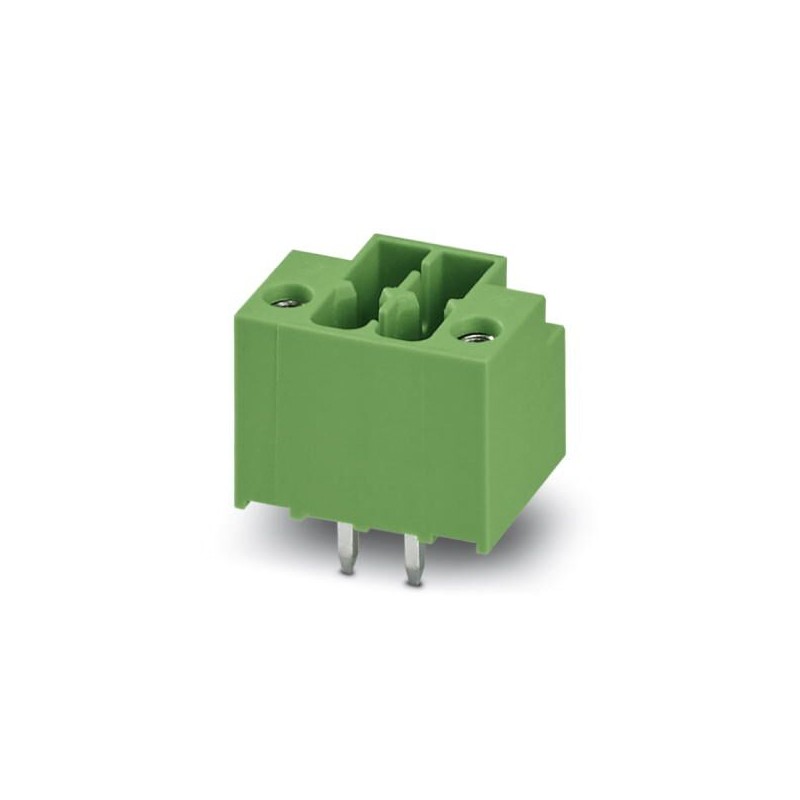

DMCV 1,5/17-G1F-3,5-LR P35
1054078
PHOENIX_CONTACT
50
PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 17, pitch: 3.5 mm, color: green, contact surface: Tin, mounting: Wave soldering, solder pin [P]: 3.5 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1054078 |
---|---|
Packing unit | 1 pc |
Minimum order quantity | 50 pc |
GTIN | 4055626688411 |
Weight per Piece (excluding packing) | 0.000 g |
Custom tariff number | 85366930 |
Country of origin | CN (China) |
Brief article description | Feed-through header |
---|---|
Plug-in system | MINI COMBICON - DFMC 1,5 |
Type of contact | Male connector |
Range of articles | DMCV 1,5/..-G1F |
Pitch | 3.5 mm |
Number of positions | 17 |
Mounting type | Wave soldering |
Number of levels | 2 |
Number of connections | 34 |
Number of potentials | 34 |
Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
---|---|
Contact material | Cu alloy |
Surface characteristics | Tin-plated |
Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
Metal surface contact area (middle layer) | Nickel (1.5 - 4 µm Ni), |
Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Metal surface soldering area (middle layer) | Nickel (1.5 - 4 µm Ni) |
Insulating material | PBT |
---|---|
Insulating material group | IIIa |
CTI according to IEC 60112 | 225 |
Flammability rating according to UL 94 | V0 |
Length [ l ] | 10.6 mm |
---|---|
Width [ w ] | 66.5 mm |
Height [ h ] | 13.5 mm |
Pitch | 3.5 mm |
Height (without solder pin) | 10 mm |
Solder pin [P] | 3.5 mm |
Pin spacing | 5.50 mm |
Pin dimensions | 0.8 x 0.8 mm |
Dimension a | 56 mm |
Type of packaging | packed in cardboard |
---|---|
Pieces per package | 50 |
Denomination packing units | Pcs. |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
---|---|
Ambient temperature (assembly) | -5 °C ... 100 °C |
Ambient temperature (operation) | -40 °C ... 100 °C (dependent on the derating curve) |
Clearances and creepage distances | IEC 60664-1:2007-04 |
---|---|
Specification | IEC 60664-1:2007-04 |
Rated insulation voltage (III/3) | 160 V |
Rated insulation voltage (III/2) | 160 V |
Rated insulation voltage (II/2) | 250 V |
Rated surge voltage (III/3) | 2.5 kV |
Rated surge voltage (III/2) | 2.5 kV |
Rated surge voltage (II/2) | 2.5 kV |
Minimum clearance - inhomogeneous field (III/3) | 1.5 mm |
Minimum clearance - inhomogeneous field (III/2) | 1.5 mm |
Minimum clearance - inhomogeneous field (II/2) | 1.5 mm |
Minimum creepage distance value (III/3) | 2.5 mm |
Minimum creepage distance value (III/2) | 1.6 mm |
Minimum creepage distance value (II/2) | 2.5 mm |
Test specification | IEC 61984 |
---|---|
Insertion strength per pos. approx. | 3 N |
Withdraw strength per pos. approx. | 2 N |
Polarization when inserted requirement >20 N | Test passed |
Contact holder in insert requirements >20 N | Test passed |
Specification | IEC 60512-9-1:2010-03 |
---|---|
Contact resistance R1 | 2.3 mΩ |
Insertion/withdrawal cycles | 25 |
Contact resistance R2 | 2.6 mΩ |
Impulse withstand voltage at sea level | 2.95 kV |
Power-frequency withstand voltage | 1.39 kV |
Specification | ISO 6988:1985-02 |
---|---|
Cold stress | -40 °C/2 h |
Thermal stress | 105 °C/168 h |
Corrosive stress | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
Impulse withstand voltage at sea level | 2.95 kV |
Power-frequency withstand voltage | 1.39 kV |
Specification | IEC 61984:2008-10 |
---|---|
Result, degree of protection, IP code | Finger safety with IP20 test finger |
Specification | IEC 60068-2-6:2007-12 |
---|---|
Result | Test passed |
Frequency | 10 - 150 - 10 Hz |
Sweep speed | 1 octave/min |
Amplitude | 0.35 mm (10 - 60.1 Hz) |
Acceleration | 5 g (60.1 - 150 Hz) |
Test duration per axis | 2.5 h |
Connection in acc. with standard | EN-VDE |
---|---|
Flammability rating according to UL 94 | V0 |
eCl@ss 4.0 | 27260700 |
---|---|
eCl@ss 4.1 | 27260700 |
eCl@ss 5.0 | 27260700 |
eCl@ss 5.1 | 27260700 |
eCl@ss 6.0 | 27260700 |
eCl@ss 7.0 | 27440402 |
eCl@ss 8.0 | 27440402 |
eCl@ss 9.0 | 27440402 |
