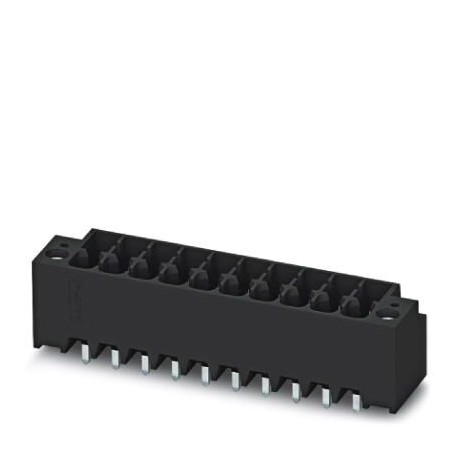

DMCV 1,5/11-G1F-3,5-LRP26AUTHR 1874742 PHOENIX CONTACT PCB headers, nominal current: 8 A, rated voltage (III..
DMCV 1,5/11-G1F-3,5-LRP26AUTHR
1874742
PHOENIX_CONTACT
50
PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 11, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 11, pitch: 3.5 mm, color: black, contact surface: Gold, mounting: THR soldering
Key Commercial Data
| Orderkey | 1874742 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626365695 |
| Custom tariff number | 85366930 |
Dimensions
| Length [ l ] | 10.6 mm |
|---|---|
| Width | 45.5 mm |
| Pitch | 3.5 mm |
| Dimension a | 35 mm |
| Width [ w ] | 45.5 mm |
| Height [ h ] | 12 mm |
| Height | 10 mm |
| Length of the solder pin | 26 mm |
| Pin dimensions | 0.8 x 0.8 mm |
| Pin spacing | 5.50 mm |
| Length | 10.6 mm |
General
| Range of articles | DMCV 1,5/..-G1F-THR |
|---|---|
| Insulating material group | IIIa |
| Rated voltage (III/2) | 160 V |
| Nominal current IN | 8 A |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 11 |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
|---|
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27260700 |
|---|---|
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
UNSPSC
| UNSPSC 13.2 | 39121409 |
|---|
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
