> PHOENIX CONTACT >PCB Connectors (PCC)>DFMC 1,5/ 5-ST-3,5 BDWH V+GND 1014851 PHOENIX CONTACT PCB connector DFMC 1,5/ 5-ST-3,5 BDWH V+GND 1014851
Previous Product Next Product
DFMC 1,5/ 5-ST-3,5 BDWH V+GND 1014851 PHOENIX CONTACT PCB connector DFMC 1,5/ 5-ST-3,5 BDWH V+GND 1014851 View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DFMC 1,5/ 5-ST-3,5 BDWH V+GND 1014851 PHOENIX CONTACT PCB connector DFMC 1,5/ 5-ST-3,5 BDWH V+GND 1014851

DFMC 1,5/ 5-ST-3,5 BDWH V+GND

1014851

PHOENIX_CONTACT

50

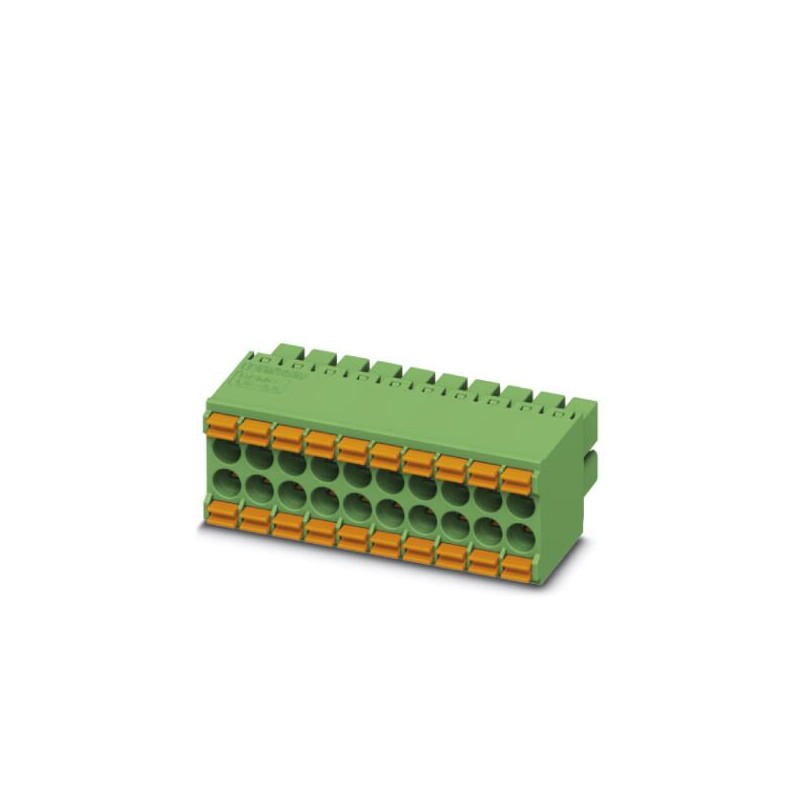

PCB connector - DFMC 1,5/ 5-ST-3,5 BDWH V+GND - 1014851

PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 5, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin

More details


Connectors > Cable connector

PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Key Commercial Data

Orderkey1014851
Packing unit1
GTIN4055626494999
Custom tariff number85366990

Drawings

Diagram

Diagram
Type: DFMC 1,5/...-ST-3,5 with DMC 1,5/...-G1-3,5 P20 THR

Diagram

Diagram
Typ: DFMC 1,5/..-ST-3,5 with DMCV 1,5/..-G1-3,5 P20 THR

Diagram

Diagram
Type: DFMC 1.5/...-ST-3.5 with DMC 1.5/...-G1-3.5 P35

Diagram

Diagram
Type: DFMC 1,5/...-ST-3,5 with DMCV 1,5/...-G1-3,5 P35

Back to top

Item properties

Brief article descriptionPCB connector
Plug-in systemMINI COMBICON - DFMC 1,5
Type of contactFemale connector
Range of articlesDFMC 1,5/..-ST
Pitch3.5 mm
Number of positions5
Connection methodPush-in spring connection
Number of levels2
Number of connections10
Number of potentials10
Back to top

Electrical parameters

Nominal current8 A
Nom. voltage160 V
Rated voltage160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Back to top

Connection capacity

Connection methodPush-in spring connection
pluggableYes
Conductor cross section solid0.2 mm² ... 1.5 mm²
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG / kcmil24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.14 mm² ... 0.75 mm²
Stripping length10 mm
Back to top

Specifications for ferrules

Recommended crimping pliers1212034 CRIMPFOX 6
Ferrules without insulating collar, according to DIN 46228‑1Cross section: 0.25 mm²; Length: 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Recommended crimping pliers1212034 CRIMPFOX 6
Ferrules with insulating collar, according to DIN 46228‑4Cross section: 0.14 mm²; Length: 8 mm
Cross section: 0.25 mm²; Length: 8 mm ... 10 mm
Cross section: 0.34 mm²; Length: 8 mm ... 10 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 10 mm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)
Back to top

Material data - housing

Housing colorgreen (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Material data – actuating element

Insulating materialPBT
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]23.35 mm
Width [ w ]18.3 mm
Height [ h ]13.25 mm
Pitch3.5 mm
Height (without solder pin)13.25 mm
Dimension a14 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package50
Denomination packing unitsPcs.
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Back to top

Termination and connection method

Conductor connection testThe stripped-off ends of the largest conductor can be completely inserted in the opening of the terminal point without using excessive force.
Test resultTest passed
Test – repeated connection and releaseIEC 60999-1:1999-11
Test passed
Test for conductor damage and slackeningIEC 60999-1:1999-11
Test passed
Back to top

Pull-out test

Pull-out testIEC 60999-1:1999-11
Test passed
Conductor cross section / conductor type / tensile force0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Back to top

Mechanical tests according to standard

Visual examinationTest passed IEC 60512-1-1:2002-02
Dimensional testTest passed IEC 60512-1-2:2002-02
Resistance of markingTest passed IEC 60068-2-70:1995-12
ResultTest passed
SpecificationIEC 60512-13-2:2006-02
No. of cycles25
Insertion strength per pos. approx.3 N
Withdraw strength per pos. approx.2 N
Polarization and codingTest passed IEC 60512-13-5:2006-02
ResultTest passed
SpecificationIEC 60512-15-1:2008-05
Test force per pos.30 N
Back to top

Air clearances and creepage distances

Clearances and creepage distancesIEC 60664-1:2007-04
SpecificationIEC 60664-1:2007-04
Minimum clearance - inhomogeneous field (III/3)1.5 mm
Minimum clearance - inhomogeneous field (III/2)1.5 mm
Minimum clearance - inhomogeneous field (II/2)1.5 mm
Minimum creepage distance value (III/3)2 mm
Minimum creepage distance value (III/2)0.8 mm
Minimum creepage distance value (II/2)1.6 mm
Back to top

Electrical tests - Function

SpecificationIEC 60999-1:1999-11
Back to top

Temperature cycles

SpecificationIEC 60999-1:1999-11
Test current (minimum cross section)4 A DC
Test current (maximum cross section)8 A DC
Temperature cycles192
Back to top

Mechanical tests (A)

Insertion strength per pos. approx.3 N
Withdraw strength per pos. approx.2 N
Polarization when inserted requirement >20 NTest passed
Contact holder in insert requirements >20 NTest passed
Back to top

Durability tests (B)

SpecificationIEC 60512-9-1:2010-03
Contact resistance R12 mΩ
Insertion/withdrawal cycles25
Contact resistance R22.3 mΩ
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Insulation resistance, neighboring positions> 12 TΩ
Back to top

Climatic tests (D)

SpecificationISO 6988:1985-02
Cold stress-40 °C/2 h
Thermal stress100 °C/168 h
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Impulse withstand voltage at sea level2.95 kV
Power-frequency withstand voltage1.39 kV
Back to top

Environmental and durability tests (E)

SpecificationIEC 61984:2008-10
Result, degree of protection, IP codeFinger safety with IP20 test finger
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440309
eCl@ss 8.027440309
eCl@ss 9.027440309
Back to top

ETIM

ETIM 5.0EC002638
ETIM 6.0EC002638
ETIM 7.0EC002638
Back to top

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 15 Mbytes
