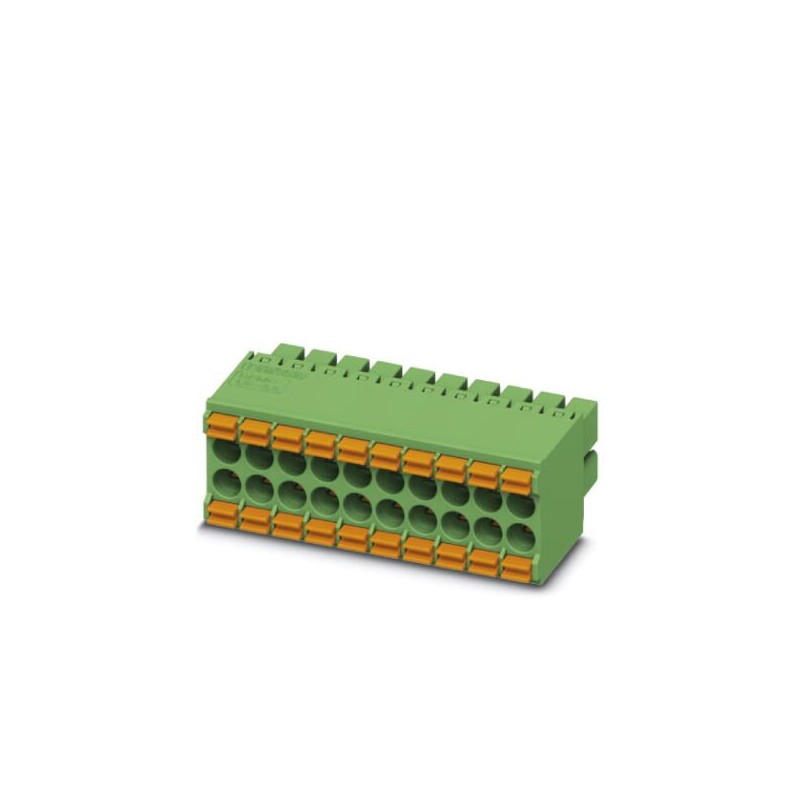

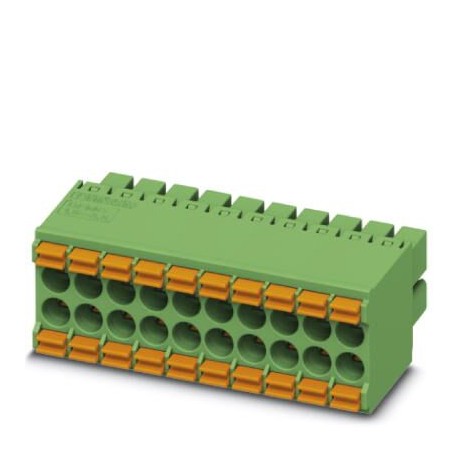

DFMC 1,5/ 5-ST-3,5 BD:NZ3279
1828086
PHOENIX_CONTACT
50
PCB connector, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 5, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Key order | One million eight hundred twenty eight thousand eighty six |
---|---|
Packing unit | 50 pcs |
Key selling | AAAEAF - |
Minimum order quantity | 50 pcs |
EAN | Four trillion forty six billion three hundred fifty six million eight hundred sixty three thousand two hundred sixteen |
Unit weight (excluding packaging) | 5,448 g |
Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
Country of origin | DE (Germany) |
Abbreviation | Connector for printed circuit board |
---|---|
Plug-in system | MINI COMBICON - DFMC 1,5 |
Type of contact | Female connection |
Family of articles | DFMC 1,5/..-ST |
Step | 3.5 mm |
Number of poles | Five |
Type of connection | Connection by spring loaded push-in |
Lock | without |
Number of floors | Two |
Number of connections | Ten |
Number of potential | Ten |
Rated current | 8 To |
---|---|
Rated voltage | 160 V |
Tension sizing | 160 V |
Tension and sizing (III/2) | 160 V |
Tension and sizing (II/2) | 320 V |
Transient voltage design (III/3) | 2.5 kV |
Transient voltage design (III/2) | 2.5 kV |
Transient voltage design (II/2) | 2.5 kV |
Type of connection | Connection by spring loaded push-in |
---|---|
plug-in | yes |
Section of conductor rigid | 0,2 mm2 ... 1.5 mm2 |
Section of flexible conductor | 0,2 mm2 ... 1.5 mm2 |
Section of conductor AWG / kcmil | 24 ... 16 |
Section of flexible conductor with toe cap, without plastic sleeve | 0.25 mm2 ... 1.5 mm2 |
Section of flexible conductor with toe, with plastic sleeve | 0.14 mm2 ... 0.75 mm2 |
Length of peeling | 10 mm |
Clamp crimp recommended | 1212034 CRIMPFOX 6 |
---|---|
Leading without collar is insulated, according to DIN 46228-1 | Section: 0.25 mm2; Length: 7 mm |
Section: 0,34 mm2; Length: 7 mm | |
Section: 0.5 mm2; Length: 8 mm ... 10 mm | |
Section: 0.75 mm2; Length: 8 mm ... 10 mm | |
Section: 1 mm2; Length: 8 mm ... 10 mm | |
Section: 1.5 mm2; Length: 10 mm | |
Clamp crimp recommended | 1212034 CRIMPFOX 6 |
Leading with collar insulated, according to DIN 46228-4 | Section: 0.14 mm2; Length: 8 mm |
Section: 0.25 mm2; Length: 8 mm ... 10 mm | |
Section: 0,34 mm2; Length: 8 mm ... 10 mm | |
Section: 0.5 mm2; Length: 8 mm ... 10 mm | |
Section: 0.75 mm2; Length: 10 mm |
Observation | According to WEEE/RoHS, without filaments according to IEC 60068-2-82/JEDEC JESD 201 |
---|---|
Material contact | Cu alloy |
Characteristics of the surface | tinning of malleable cast iron |
Metal surface of the point of embornaje (top layer) | Tin (4 - 8 ám Sn) |
Metal surface area of contact (top layer) | Tin (4 - 8 ám Sn) |
Color housing | green (6021) |
---|---|
Isolation | PA |
Group insulating material | I |
CTI according to IEC 60112 | Six hundred |
Class of flammability according to UL 94 | V0 |
Number of flammability of filaments GWFI according to en 60695-2-12 | Eight hundred fifty |
Ignition temperature of filaments GWIT according to en 60695-2-13 | Seven hundred seventy five |
Temperature test of the hardness for the balls according to en 60695-10-2 | 125 °C |
Isolation | PBT |
---|---|
CTI according to IEC 60112 | Six hundred |
Class of flammability according to UL 94 | V0 |
Outline dimensions | |
---|---|
Length [ l ] | 22,32 mm |
Width [ w ] | 18.3 mm |
Height [ h ] | 13,25 mm |
Step | 3.5 mm |
Height of building (height without the shank of soldering) | 13,25 mm |
Average | 14 mm |
Type of packaging | packaged in box |
---|---|
Packing unit | Fifty |
Designation packing Units | Units |
Ambient temperature (storage / transport) | -40 °C ... 70 °C |
---|---|
Ambient temperature (assembly) | -5 °C ... 100 °C |
Room temperature (service) | -40 °C ... 100 °C (in function of the curve derating) |
Check the connection of conductors | The stripped end of the conductor is the largest you can insert completely and without excessive force, into the opening of the point of embornaje. |
---|---|
The result of the test | Test approved |
Check: connect and drop multiple times | DIN EN 60999-1 (VDE 0609-1):2000-12 |
Test approved | |
Checking of damage in the conductors and loosening | DIN EN 60999-1 (VDE 0609-1):2000-12 |
Test approved |
Tensile test | DIN EN 60999-1 (VDE 0609-1):2000-12 |
---|---|
Test approved | |
Section of the driver / type of driver / traction force | 0,2 mm2 / stiff / > 10 N |
0,2 mm2 / flexible / > 10 N | |
1.5 mm2 / stiff / > 40 N | |
1,5 mm2 / flexible / > 40 N |
Visual Control | Test passed DIN en 60512-1-1:2003-01 |
---|---|
Check dimensions | Test passed DIN en 60512-1-2:2003-01 |
Resistance of prints | Test passed DIN en 60068-2-70:1996-07 |
Result | Test approved |
Specification of the test | DIN EN 60512-13-2:2006-11 |
Number of cycles | Twenty five |
Force to the plug by polo approx. | 3 N |
Force when unplugging per pole approx. | 2 N |
Polarization and coding | Test passed DIN en 60512-13-5:2006-11 |
Result | Test approved |
Specification of the test | DIN EN 60512-15-1:2009-03 |
Strength trial-by-polo | 30 N |
Air spaces and lines of flight | DIN EN 60664-1 (VDE 0110-1):2008-01 |
---|---|
Specification of the test | DIN EN 60664-1 (VDE 0110-1):2008-01 |
Minimum value of air gap - field inhomogéneo (III/3) | 1.5 mm |
Minimum value of air gap - field inhomogéneo (III/2) | 1.5 mm |
Minimum value of air gap - field inhomogéneo (II/2) | 1.5 mm |
Minimum value of the line of flight (III/3) | 2 mm |
Minimum value of the line of flight (III/2) | 0.8 mm |
Minimum value of the line of flight (II/2) | 1.6 mm |
Specification of the test | DIN EN 60999-1 (VDE 0609-1):2000-12 |
---|---|
Test current (minimum cross-section) | 4 TO DC |
Test current (maximum section) | 8 TO DC |
Temperature cycles | One hundred ninety two |
Force to the plug by polo approx. | 3 N |
---|---|
Force when unplugging per pole approx. | 2 N |
Requirement of impossibility of confusion when connecting >20 N | Test approved |
Portacontactos used requirement >20 N | Test approved |
Specification of the test | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
---|---|
Contact resistance ROne | 2 mΩ |
Cycles of plug | Twenty five |
Contact resistance RTwo | 2,3 mΩ |
Voltage shock endurable level sea | 2,95 kV |
Ac voltage bearable | 1,39 kV |
Insulation resistance Pole-contiguous | > 12 TΩ |
Specification of the test | DIN EN ISO 6988:1997-03 |
---|---|
Effort cold | -40 °C/2 h |
Thermal stress | 100 °C/168 h |
Fatigue corrosion | 0,2 dmThreeSOTwoin 300 dmThree/40 °C/1 cycle |
Voltage shock endurable level sea | 2,95 kV |
Ac voltage bearable | 1,39 kV |
Specification of the test | DIN EN 61984 (VDE 0627):2009-11 |
---|---|
Result-Degree of protection IP Code | Protection against contact of fingers with finger proof IP20 |
China RoHS | Space of time for the intended use: unlimited = FEUP-e |
---|---|
No dangerous substances above the thresholds |
eCl@ss 4.0 | Twenty seven million two hundred sixty thousand seven hundred |
---|---|
eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred |
eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred |
eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
eCl@ss 7.0 | Twenty seven million four hundred forty thousand three hundred nine |
eCl@ss 8.0 | Twenty seven million four hundred forty thousand three hundred nine |
eCl@ss 9.0 | Twenty seven million four hundred forty thousand three hundred nine |
UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred one |
---|---|
UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
UNSPSC 18.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
UNSPSC 19.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
UNSPSC 20.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
UNSPSC 21.0 | Thirty nine million one hundred twenty one thousand four hundred nine |
