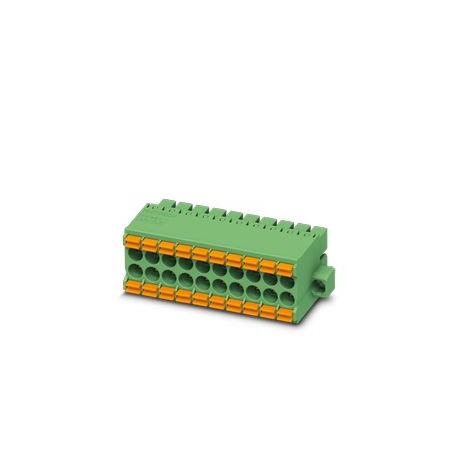

DFMC 1,5/10-STF-3,5 BK 1497273 PHOENIX CONTACT Connector for printed circuit board, nominal section: 1.5 mm².. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

DFMC 1,5/10-STF-3,5 BK 1497273 PHOENIX CONTACT Connector for printed circuit board, nominal section: 1.5 mm²..

DFMC 1,5/10-STF-3,5 BK

1497273

PHOENIX_CONTACT

50

Product on demand only, returns will not be accepted.

Connector for printed circuit board, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Sn, contact connection type: Female, number of rows: 2, number of poles: 10, article family: DFMC 1.5/.. -STF, pitch: 3.5mm, connection type: Push-in spring connection, conductor/printed circuit board connection direction: 0°, plug-in system: COMBICON DFMC 1.5, locking: Screw lock, fixing type: Air clamping (screw), packaging type: boxed

PCB connector, nominal cross-section: 1.5 mm², colour: black, nominal current: 8 A, nominal voltage (III/2): 160 V, surface contacts: Tin, contact type: Female, number of rows: 2, number of poles: 10, article family: DFMC 1.5/.. -STF, pitch: 3.5mm, connection type: Push-in spring connection, driver/PCB connection direction: 0°, plug-in system: COMBICON DFMC 1.5, locking: Screw locking, fixing type: Overhead clamping (screw), packing type: boxed packaging

More details


Connectors > Cable connector

PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $678.18
Unit price: $13.56
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Item Properties
Product LineCOMBICON Connectors S
Product TypePrinted Circuit Board Connector
Product FamilyDFMC 1.5/.. -STF
Number of poles10
Step3.5 mm
Number of rows2
Electrical Properties
Nominal Current IN8 A
Nominal voltage UN160 V
Degree of pollution3
Contact resistance2.1 mΩ
Sizing voltage (III/3)160 V
Dimensioning transient voltage (III/3)2.5 kV
Dimensioning voltage (III/2)160 V
Dimensioning Transient Voltage (III/2)2.5 kV
Nominal voltage (II/2)320 V
Dimensioning transient voltage (II/2)2.5 kV
Connection data
Connection technology
ConstructionPlug-in part
Connector SystemCOMBICON DFMC 1.5
Nominal Section1.5 mm²
Contact Connection TypeFemale
Blockade
Locking systemScrew lock
Clamping flangeOverhead clamping (screw)
Tightening torque0.2 Nm
Connecting Conductors
Connection typePush-in spring connection
Connection Direction Driver/PCB0 °
Rigid conductor section0.2 mm² ... 1.5 mm²
Flexible conductor section0.2 mm² ... 1.5 mm²
AWG Conductor Section24 ... 16
Flexible conductor section with toe cap, without plastic sleeve0.25 mm² ... 1.5 mm²
Flexible conductor section with toe cap, with plastic sleeve0.25 mm² ... 0.75 mm²
Male gauge a x b / Diameter2.4 mm x 1.5 mm / 1.6 mm
Peel Length10 mm
Facts about toe caps without an insulated collar
Recommended crimp pliers1212034 CRIMPFOX 6
toe caps without insulating collar, according to DIN 46228-1Cross-section: 0.25 mm²; Length: 7 mm
Cross-section: 0.34 mm²; Length: 7 mm
Cross-section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross-section: 1 mm²; Length: 8 mm ... 10 mm
Cross-section: 1.5 mm²; Length: 10 mm
Facts about Insulated Collar Toe Caps
Recommended crimp pliers1212034 CRIMPFOX 6
toe caps with insulated collar, according to DIN 46228-4Cross-section: 0.14 mm²; Length: 8 mm
Cross-section: 0.25 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.34 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross-section: 0.75 mm²; Length: 10 mm
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsMalleable cast iron tinning
Metal surface of the terminal point (top layer)Tin (4 - 8 μm Sn)
Metal surface contact area (top layer)Tin (4 - 8 μm Sn)
Material data - housing
Color (Housing)Black (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Material data: drive element
Color (Drive Element)Orange (2003)
Insulating materialPBT
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Dimensions
Dimension Schemebkgvpdefhs.jpg
Step3.5 mm
Width [w]42 mm
Height [h]13.25 mm
Length [l]23.35 mm
assembly
bridle
Tightening torque0.2 Nm
Mechanical testing
Connecting Conductors
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Checking for damage to conductors and loosening
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Repeated connection and disconnection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Tensile Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / rigid / > 40 N
1.5 mm² / flexible / > 40 N
Forces when plugging in and unplugging
ResultApproved Test
Number of cycles25
Plug-in force approx.3 N
Power when unplugging by pole approx.2 N
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Polarization & Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultApproved Test
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test
Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level2.95 kV
Contact Resistance R12.1 mΩ
Contact Resistance R22.4 mΩ
Plug Cycles25
Climate Essay
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion fatigue0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168 h
Bearable AC voltage1.39 kV
Crash
Test SpecificationDIN EN 60068-2-27 (VDE 0468-2-27):2010-02
Shock TypeSemi-sinusoidal
Acceleration30g
Duration of the crash18 ms
Test DirectionsX, Y, and Z axes (pos. and neg.)
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Electrical Testing
Thermal Test | Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested20
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Temperature Cycles
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Creepage Lines & Air Isolation Distances |
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 600
Sizing Insulation Voltage (III/3)160 V
Nominal transient voltage (III/3)2.5 kV
minimum value of air insulation distance - non-homogeneous field (III/3)1.5 mm
Minimum creepage line value (III/3)2 mm
Sizing Insulation Voltage (III/2)160 V
Nominal transient voltage (III/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)1.5 mm
Minimum creepage line value (III/2)1.5 mm
Sizing Insulation Voltage (II/2)320 V
Nominal transient voltage (II/2)2.5 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)1.5 mm
Minimum creepage line value (II/2)1.6 mm
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1497273 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 2
Modular spacing contacts (EF007326) 3.5 mm
Modular spacing connections (EF006827) 3.5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 8 A
Rated voltage (EF000228) 160 V
Rated surge voltage (EF002993) 2.5 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
